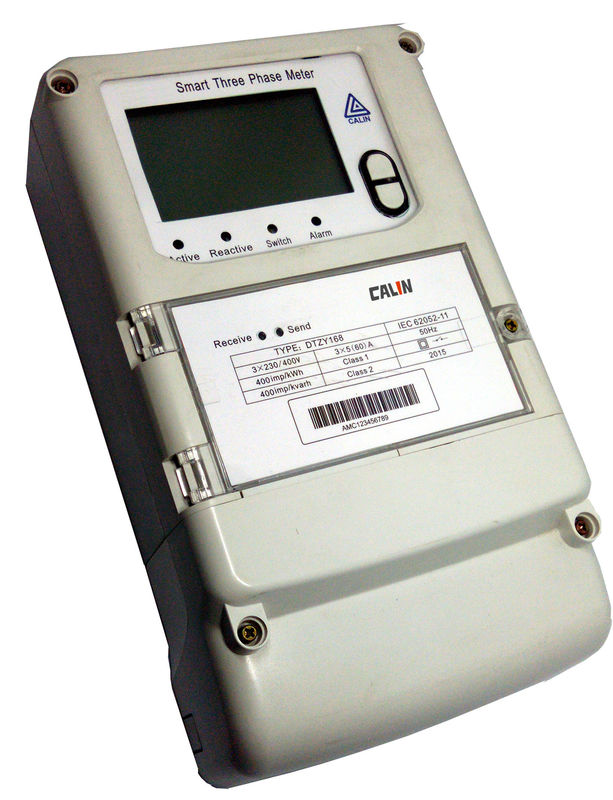

Wireless 3 Phase Electric Meter Residential Prepaid Power Meters Plug / Play Module

Wireless 3 Phase Electric Meter Residential Prepaid Power Meters Plug / Play Module

    • Wireless 3 Phase Electric Meter Residential Prepaid Power Meters Plug / Play Module
  • Wireless 3 Phase Electric Meter Residential Prepaid Power Meters Plug / Play Module

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368-M

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Modular 3 Phase Electric Meter Connection: Whole Current Or CT/VT Connection
    Com Port: RS485, Optical Port Weight: 2.5 Kg
    Display: 8 Digits' Backlit LCD Communication: Plug & Play Module
    Terminal Cover: Extended Cover Bore Diameter: 10 Mm
    High Light:

    3 phase kwh meter

    ,

    three phase kilowatt hour meter

    Wireless 3 Phase Electric Meter Residential Prepaid Power Meters Plug / Play Module

    The CA368-M integrates high precision metrology with diversity of wireless communication technology completed in a plug & play module unit, allowing it to be utilized as element of AMR AMI solution. It operates in  three phase four wire and three wire network. And it is with anti-tamper functions and completed in a BS 5685 footprint case. The meter is  mainly used for commercial and inustrial environments.


    The CA368-M works with a modular design of wireless communication. A utility and service provider can select from various communication modules to setup their AMR AMI facilities. The module unit is replaceable and easy to repair.



    Featured functions

    ■Active and reactive energy measurement in both directions

    ■ Load profiling and Maximum demand recording at programmable intervals

    ■Flexible swap between  credit and prepayment mode

    ■ Full spectrum of metrological measurement of V, A, P, PF, etc.
    ■Available for both direct and CT/VT connection
    ■Available for both four wires and three wires network
    ■Adjustable power limit
    ■Optical  and RS485 com port



    User benefits

    1) All-in-one instrumentation

    2) Low operational and deployment cost

    3) Allows for multi-rate and usage register on TOU basis

    4) Setting for tariff, emergency unit, load limit, surchages, debt collection, etc.

    5) Anti-tamper: earthing, cover open, bypass, etc

    6) Broad metrological range to reduce inventory cost

    Specifications:



    Electrical parameters

    Nominal voltage Un

    3x 220/230/ 240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    5A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm


    Wireless 3 Phase Electric Meter Residential Prepaid Power Meters Plug / Play Module 0
