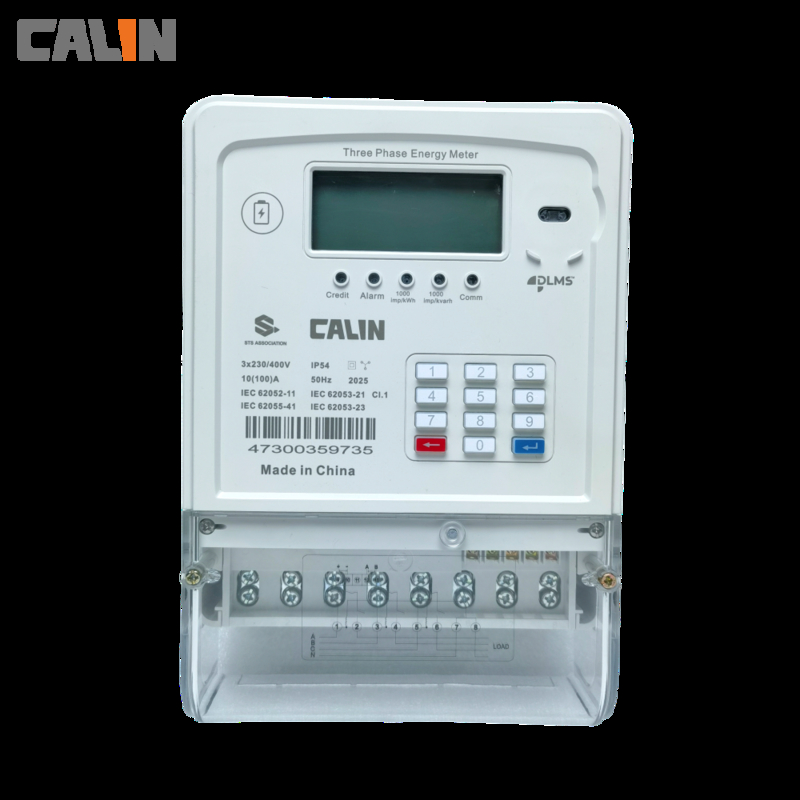

Wireless IP54 3 Phase Electric Meter For Mini Grid Rual Electrification

Wireless IP54 3 Phase Electric Meter For Mini Grid Rual Electrification

Wireless IP54 3 Phase Electric Meter For Mini Grid Rual Electrification
Wireless IP54 3 Phase Electric Meter For Mini Grid Rual Electrification

Product Details:

Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 3 Phase Electric Meter Nominal Voltage Un: 220/230/240 V
Basic Current(Ib): 5-10A Maximum Current: 100A
Communication: Wireless Feature 1: Dual Power Source
Feature 2: Disconnects Meter Shell Protection Rate: IP54
High Light:

IP54 3 Phase Electric Meter

,

STS 3 Phase Electric Meter

,

STS Mini Grid Electric Meter

Wireless IP54 3 Phase Electric Meter For Mini Grid Rual Electrification





Description Of Dual Power Source Three Phase Prepaid Meter

Calin Dual Power Source Three Phase Prepaid Meter has been designed to faciliate the minigrid / rural electrification metering project. The CA368-D can be used for mini grid supply measurement and revenue collection. The amperage capacity varies by  5A, 16A, 40A, 60 A at  230V Nominal voltage, Class 1 accuracy. This Dual Power Source  Prepaid Meter has a built-in a RF moduleand therfore can be  monitored and managed remotely. The meter synchs the data with the data concentrator via RF-LoRa, and then the data concentrator connects to the server  by GPRS. Service providers can easily get access to any meter readout and control on their workstation laptop or smart devices



Feature Of Dual Power Source Three Phase Prepaid Meter

  1. Standard Transfer Specification(STS) standard compliant

  2. Decrement credit at Significant reverse energy (SRE)

  3. IEC62056-21 compliant easy interrogation

  4. Trips on overload or  zero credit

  5. Each power source in hybrid  prepaid and credit mode

  6. Programmable load limit and low credit warning

  7. Detection and record of tamper event such as cover open, reversal, black-out, etc.



Specification Of Dual Power Source Three Phase Prepaid Meter



Nominal voltage Un 220/230/240 Volt
Limited voltage 75%~120%Un
Nominal frequency fn 50-60Hz+5%
Basic current(Ib) 5A-10A
Maximum current(Imax) 60A-100A
Starting current(Ist) 20mA
Active energy constant 1000imp/kWh
Accuracy as Active energy to IEC62053‐21 Class1.0
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Operating temperature 25℃ to+70℃
Storage temperature 40℃ to+85℃
Insulation level 4kV rms for 1min
Impulse voltage withstand 8kV, 1.2/50 μs
Air discharge 16kV
Immunity to HF fields
80MHz to 2GHz with load 10V/m
100kHz to 1GHz without load 30V/m
Fast transient burst test 4kV
Meter shell Protection Rate IP54(IEC60529)
Insulation System Classification Protective Class II





Application Of Dual Power Source Three Phase Prepaid Meter
1. Measure, monitor both grid and alternative power parameters.

2. Collect consumption data for analysis needs.

3. Limitation settings (such as over voltage, power consumption).

4. Complex building or commercial sites



Advantage Of Dual Power Source Three Phase Prepaid Meter

1) Easy to install and maintenance

2)Tamper protection

3) Low operational cost

4) Wireless communication

5) Broad range of engineering settings

6) 15 year designed lifespan





Our service:
1. Timely response to your requests
2. OEM and ODM service according to your requirements
3. Your satisfaction oriented services.
4. The lead time of samples would be 3-7 days.

Wireless IP54 3 Phase Electric Meter For Mini Grid Rual Electrification 0





FAQ

1. What can you supply?

A: We can supply custom Prepaid Electricity Meters, STS Prepaid Meters, Single Phase Electric Meter and so on, smart meters, etc.



2. Are OEM and ODM available?

* Yes. As a professional Electricity Meters manufacturer, we offer OEM and ODM service.



Q: What are your main products?

A:Our main products are Electricity Meters.



4. How about your product warranty?

* We offer one-year warranty upon delivery.



5. How about the aftersales support?

* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
