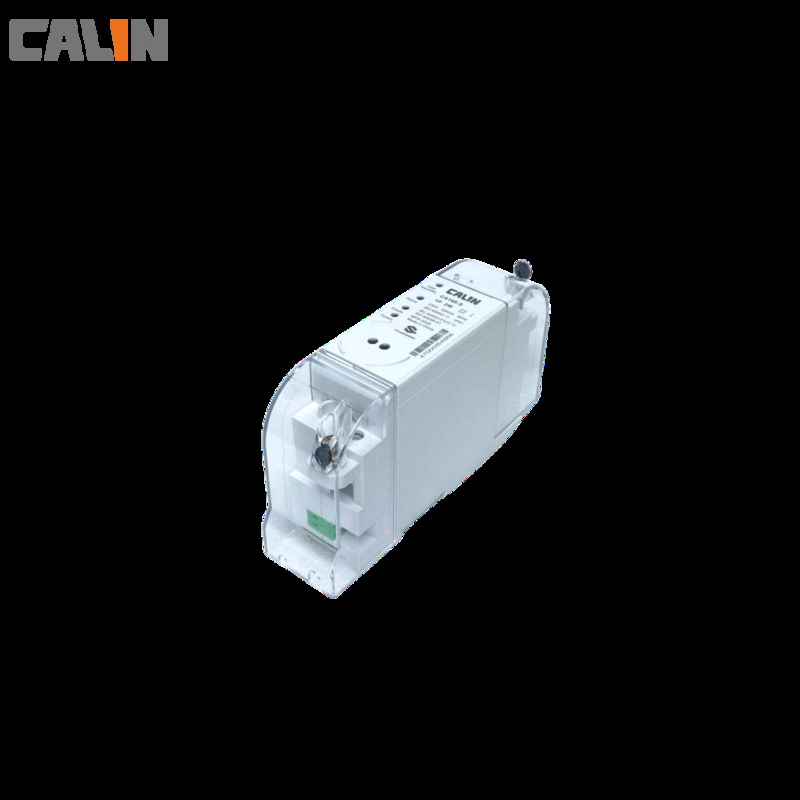

Split Din Rail Mounted Kwh Meter UV Stable Polycarnonate Closure Cable Connection

Split Din Rail Mounted Kwh Meter UV Stable Polycarnonate Closure Cable Connection

  • Split Din Rail Mounted Kwh Meter UV Stable Polycarnonate Closure Cable Connection
  • Split Din Rail Mounted Kwh Meter UV Stable Polycarnonate Closure Cable Connection
Split Din Rail Mounted Kwh Meter UV Stable Polycarnonate Closure Cable Connection
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-S
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Split Din Rail Mounting Prepayment Meter Connection Type: Communication Cable
Dimensions: 155x120x52mm Weight: 800 G
Constant: 1000 Imp/kWh Accuracy: Class 1s
Standard: IEC/SABS Communication Range: 200m
High Light:

STS Prepayment meter

,

sts meter

Split Din Rail Mounted Kwh Meter UV Stable Polycarnonate Closure Cable Connection



The CA168-S is a splity Din Rail mounting designed prepayment meter . It is in an international 35mm Din Rail housing and keypad based with STS encryption.The meter is provided for a broad rang of prepayment applications,



The meter works in a  dynamic broad range enabling a basic current of 5 Amp while keeping a maximum current of 80 Amp and expanded functional features.CA168 -S operates with a user interface unit as UIU, or in some countries, as customer interface unit (CIU). UIU or CIU is a keypad based display to be installed within consumers premise when the main meter, as, Metering and Control Unit, or MCU  is installed out of the consumers' premises. This split design featuer provides utility users and service providers great convenience as well as value and enhanced revenue protection by inspecting and maintenancing meters without entering consumers' homes.



We as meter manufacturers, not only provide 35mm DIN RAIL,BS mounting , but also one of our most popular meter types. Both types connect to a CIU with a galvanically isolated communication cable and non-wired configuration as PLC, RF, MBUS are also available on request.  Cable connection right now is the most reliable and stable communication however no-wired configuration adds more convenience and value to future operations.





Major Features

a) MCU UIU are separated for better tamper protection

b) Split connection is easy and low cost for deployment

c) Programmable power limit

d) Enhanced tamper detection for magnetic field, reverse connection, cover open, etc.

e) Significant reverse energy detection SRE

f) Information register display toggled by codes



 User Benefits

a) Increasesd revenue protection through flexible payment control

b) PLC/ RF communication bw two parts and with back end server for AMI (On request)

c) Time of Use (TOU) , multi-rate, tariff control, holiday setting

d) Compact and slim design, space saving

e) Long life time design (15yrs)





Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II
