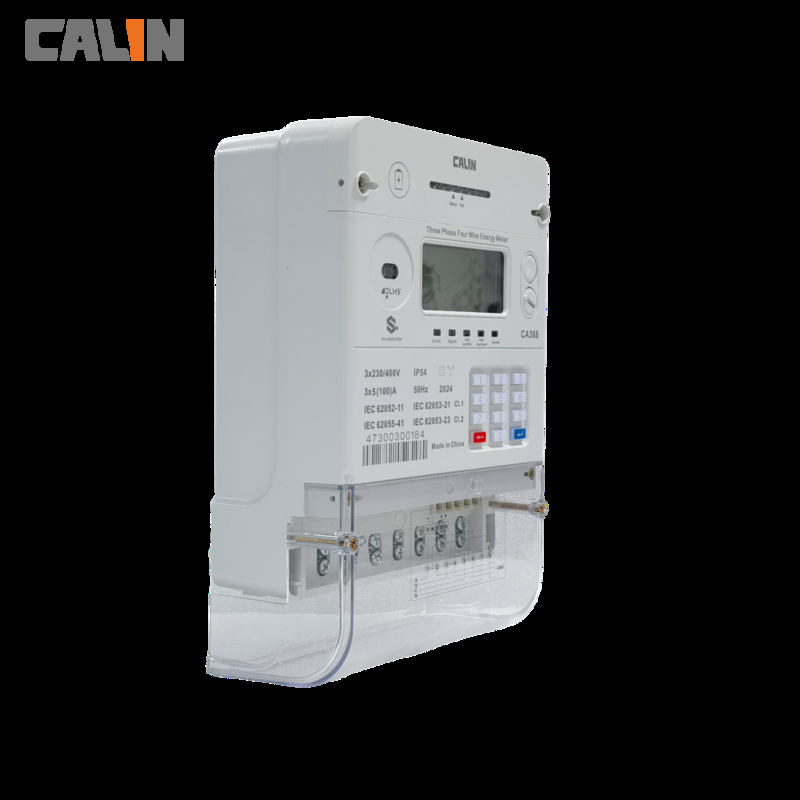

Three Phase Energy Prepayment Meters

Three Phase Energy Prepayment Meters

Three Phase Energy Prepayment Meters
Three Phase Energy Prepayment Meters
Three Phase Energy Prepayment Meters
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Three Phase Electric Meter Dimensions: 155x120x52mm
Weight: 700 G Consumption Rate: 1000 Imp/kWh
Data Port: Infrared Optical Communication: RF
High Light:

20 Digits Energy Prepayment Meters


IEC Energy Prepayment Meters


20Digits Prepaid Metering System

20 Digits Three Phase Energy Prepayment Meters With Vending System


20 Digits smart three phase electric meter with vending system


Photovoltaic (PV) power generation is growing fastly in the South Asia and Africa, As mini grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is special designed for PV solar generation mini grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built in a RF module in the meter so that the monitoring and management system can be developed, the meter send the data to the data concentrator by RF, and then the data concentrator upload the data by GPRS. The repeater can extend the communication range for data concentrator.

Three Phase Energy Prepayment Meters 0


Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption

  2. Detection of significant reverse energy (SRE)

  3. IEC62056-21 compliant port allowing for easy data interrogation

  4. Disconnects on overload and no credit

  5. Dual power source working on both prepaid and credit mode

  6. Programmable load limit and low credit warning

  7. Detection and record tamper event such as cover open, reversal, black-out, etc.

  8. Easy access to 12 months historical consumption data and last 5 token entered


 Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications

  2. RF / GPRS wireless communication with a head-end AMR/AMI server

  3. Time of Use (TOU), multi-tariff, holiday setting.

  4. Advanced load control and disconnection features





Nominal voltage Un

220/230/240 V

Limited voltage


Nominal frequency fn


Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant


Accuracy as Active energy to IEC62053‐21


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge


Immunity to HF fields


80MHz to 2GHz with load


100kHz to 1GHz without load


Fast transient burst test


Meter shell Protection Rate


Insulation System Classification

 Protective Class II


 Three Phase Energy Prepayment Meters 1Three Phase Energy Prepayment Meters 2



Three Phase Energy Prepayment Meters 3

Our service:
1. We will reply you as soon as possible after receiving your enquiry.
2. We can offer both OEM and ODM service according to customers' request.
3. If novelties exist in any non-human-made problems, please contact us at your first
time and we will offer you a satisfactory solution according to actual situation.
4. The lead time of samples would be 1-7 days.
