Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: GPRS 1 Phase STS Prepaid Meter Network: GSM EDGE EVDO GPRS
Dimensions: 160x112x58mm Mounting: British Standard(BS) 5685
Display: 6 Digits Backlit LCD With Icons Accuracy: Class 1s
Payment Mode: Prepayment Credit Material: Polycarbonate Flame Retardant
Modem: Build-in GPRS / Ethernet
High Light:

STS Prepayment meter


sts meter


1 Phase STS Prepaid Meters

1 Phase Single Phase Electricity Meter Two Way Communication Prepayment Meters

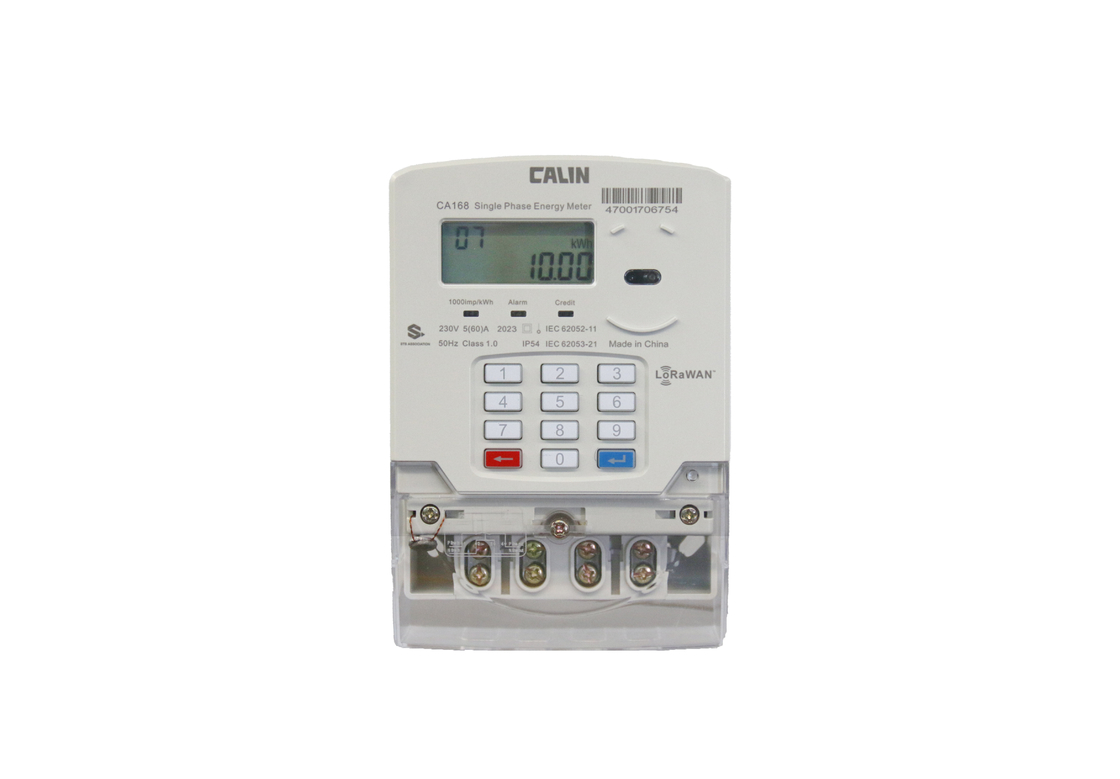

The CA168-G is a new generation of STS prepayment meter that integrates STS encryption with latest GSM wireless technology, allowing it to be connected to AMR AMI back-end server systems. It offers flexible settings for both metering and payment and user-friendly interface to both the service provider and the end consumers.

Free basic unit, emergency credit, low balance warning is programmable even after the commissioning. The landlords or service providers are allowed to make their own arrear management or debt collection settings into the meter. And consumers are able to check their meter reading as consumption and balance status from time to time via remote access.

In whatever way as it is, the CA168-G is a superb electricity dispensing devices and revenue protection tools for both consumers and service providers. Thanks to its broad current range 5(80)Amp, and Un 60% to 130% voltage and a RF immunity withstand of 30Vm, the meter can be installed in very harsh environments.


The meter communication are fully compliant with DLMS/COSEM, making it interoperable with third party applications running on the same protocol.


Main Features

1) Operates in prepayment mode and post payment mode

2) IEC 62056-21 and DLMS/COSEM compliant two way communication

3) Tamper protection: magnetic immunity, data storage in absence of power, cover open trip and alarm

4) Multi-rate, tarrifs on TOU basis

5) Programmable power limit and low credit warning

6) LED consumption indicator

7) 12-key audio feedback keypad


 Utility benefits

a) Build-in contactor and GSM slot allows for local and remote load control features

b) Build-in clock sychronize with the real-time of back-end server, providing tariff setting and contractual control features

c) Automated meter reading and remote intrusive control over customers' load

d) Quick and easy installation especially for retrofitting with no need for extra accessories





Nominal voltage Un

220/230/240 V

Limited voltage


Nominal frequency fn


Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant


Accuracy as Active energy to IEC62053‐21


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge


Immunity to HF fields


80MHz to 2GHz with load


100kHz to 1GHz without load


Fast transient burst test


Meter shell Protection Rate


Insulation System Classification

 Protective Class II
