Multi Tariff STS Smart Prepaid Electricity Meter

Multi-tariff Single Phase STS Prepaid Meters Digital Keypad Smart Energy Meter

Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications. Calin's prepaid meters have anti-tamper features. The meter is built with multiple sensors and triggers. including tamper shutdown protection ,disconnects on overload, and no credit .

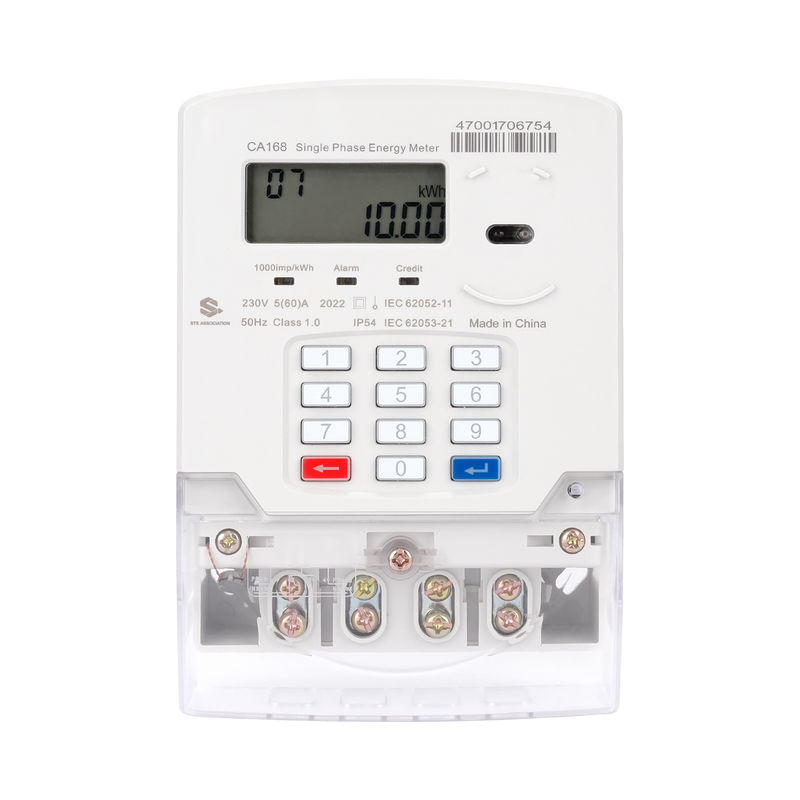

The CA168 is a great all-rounder for all your STS prepaid application needs. It's got an improved dynamic current of 5 Amp, a maximum current of 80 Amp and some really useful extended features. It's still a compact and keypad-based design in a BS8565 standard housing, and it's got all the tamper-proof protection features you could need, so it's great for use in lots of different environments.

The CA168 mono-phase prepaid meters are a breeze to install, retrofit and even connect to a User Interface Unit (UIU)! You can even use both types in split type with a customer interface unit as CIU. This feature-rich device provides enhanced tamp

.

Major Features

1) Load control, over-load switching automatically

2) Programmable under and over-voltage trip

3) Significant reverse energy measurement SRE

4) Enhanced tamper detection

5) Multi-Level alarm value enables setup

6) Preset delayed reconnection

7) IP 54 rating

 Key benefits

a) PLC/ RF / GPRS communication for AMR AMI features (On request)

b) Time of Use (TOU) , multi-rate, holiday setting

c) Easy and quick to install with existing wires

d) 15-year designed life

e) Enhanced revenue protection through flexible payment control

Specifications:
