| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | T-50 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 70,000pcs per month |
| Product Name: | Hand Held Unit | O/S: | Windows CE |
|---|---|---|---|
| Memory: | 512M | Weight: | 310 G |
| Display: | LCD | Dimensions: | 150mm * 71mm * 35mm |
| High Light: | amr solutions,ami systems,Ami Business Solutions |
||

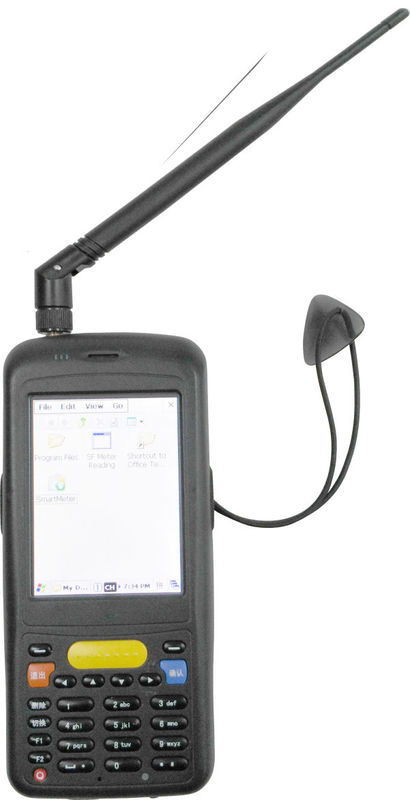

Ami Business Solutions Hand Held Unit Plug In Module , RF Radio Communication
T-50 series hand held unit offers utmost mobility in drive-by or walk-by meter reading and maintenance scenario. It supports compatible java application and program software for windows O/S. With compact and light weight pocket design, it is easy to carry and operate as well. The reading distance can be boosted by adding atenna up to 500 meters. RS485 / 232 / USB port is available for local data download.
Main Features
l Adopt Microsoft Windows CE operating system
l DLMS/COSEM standard compliant
l RF-LORA downlink to smart meters
l Upload data to head-end AMR/AMI system via USB port
l Mass storage memory
l Data collection include total consumption/ historical daily & monthly consumption
l Meter parameter/ status/ Real-time data reading
Specifications:
| Items | specification |
| OS | Microsoft Windows CE |
| Memory | FLASH 512M,RAM 256M |
| Display | LCD 3.2 240*320 pixel (TFT Touchpad) |
| Data Collect | One bar code scanning, QR code scanning |
| Wireless Network | WIFI 3G GPRS Bluetooth LORA |
| Infrared communication | Far distance optical port communication |
| Wire network | RS232 RS485 |
| Camera | 5 million pixel |
| Data Backup | TF extend |
| Battery | 3000mAh chargeable lithium-ion battery |
| Level of protection | IP65 |
| Operating temperature | -20℃ - 50℃ |
| developer options | Microsoft ActiveSync , Micro USB interface |
| Dimensions | 150mm * 71mm * 35mm without antenna |
| Weight | 310 g |
| Other peripheral |
Microphone & telephone receiver & speaker Support voice calls |
