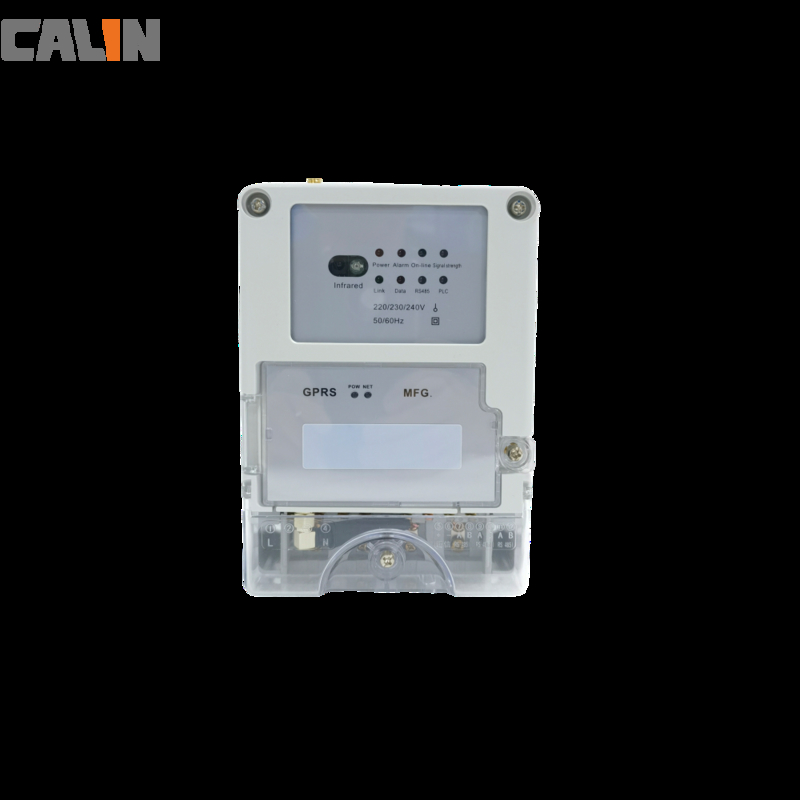

GPRS Advanced Metering System 1 Phase STS Prepaid Meters Load Management Real Time Data

GPRS Advanced Metering System 1 Phase STS Prepaid Meters Load Management Real Time Data

    • GPRS Advanced Metering System 1 Phase STS  Prepaid  Meters Load Management  Real Time Data
  • GPRS Advanced Metering System 1 Phase STS  Prepaid  Meters Load Management  Real Time Data

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDSY168-g

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Standard: SANS1524-1 , IEC62056-21 , IEC62053 Dimensions: 175x112x78mm
    Weight: 700g Display: Backlit LCD 6 Digits Plus Icons
    Accuracy: Class 1s Network: GSM GPRS EDGE EVDO
    Cable Size: 8mm
    High Light:

    amr solutions

    ,

    amr system

    GPRS Advanced Metering System 1 Phase STS Prepaid Meters Load Management Real Time Data



    The CA168-G is a two-wire, 100 Amp, keypad based prepayment meter finished in a compact BS5685  footprint housing. It operates on the non-wired basis with 800 / 900/ 1800 /1900 mHz GSM network.The meter is intendedfor upper income residential or small commercial consumers.



    The meter is manufactured by ISO9001 standards and IP54 rated protection class. Thanks to a wide voltage range ( Un -40% +20%) and  RF immunity of 30V/m, it can ork in very harsh outdoors environments. The meter is designed available with  both active and reactive energy measurement.



    The wireless feature of DDSY168-G allows the meter to communicate with a head-end server via TCP/IP or vpn through point-to-point networks. Metering data and grid parameters can be remotely read and collected into the server automatically as a scheduled task. Information as V, A, PF, P can be toggled to show on meter display screen by punch in different combinations of codes.









    Features

    • Standard Transfer Specification(STS) standard compliant
    • Disconnects on overload and credit expiry or tamper
    • Programmable power limit and low credit warning level
    • Emergency credit and repayment management
    • Tamper detection for opening cover, reverse connection, outage
    • Recall 12 months historical usage data and last 5 successfully entered token
    • Operates in prepayment and post-payment mode

      User Benefits



    • Real time data available for AMR AMI server
    • Load threshhold setting
    • Mutil-rates, holiday settings with TOU ( Time of Use) tariff
    • Advanced load management and disconnection features
    • DLMS/COSEM , IEC62056 compliant





    Specifications:



    Electrical parameters:

    Nominal voltage Un

    3x240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

     IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm





    GPRS Advanced Metering System 1 Phase STS  Prepaid  Meters Load Management  Real Time Data 0GPRS Advanced Metering System 1 Phase STS  Prepaid  Meters Load Management  Real Time Data 1
