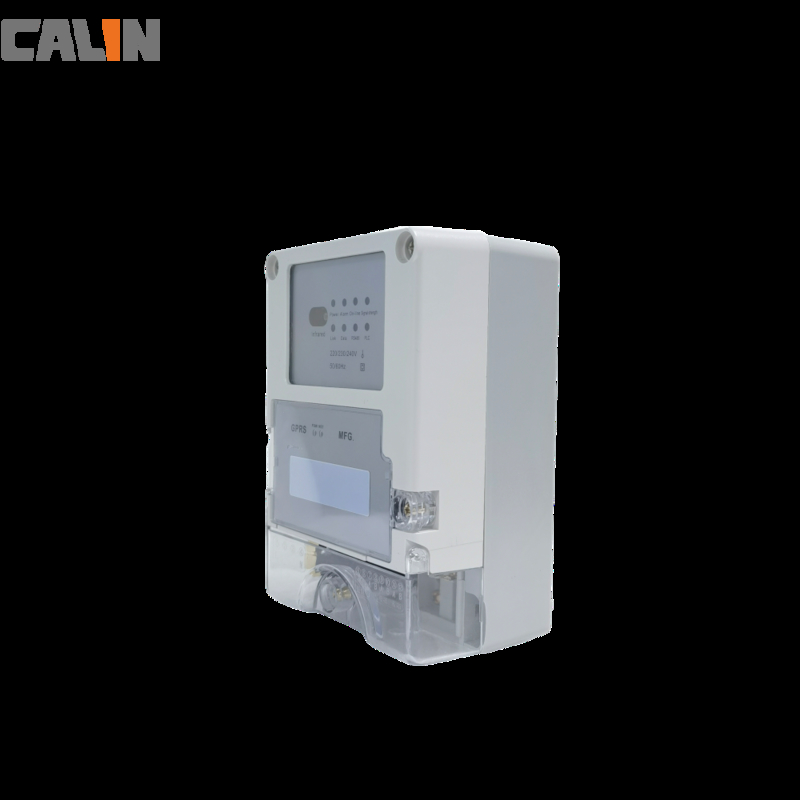

Wired communication RS485 AMI solutions for multi - dwelling storey buildings

Wired communication RS485 AMI solutions for multi - dwelling storey buildings

    • Wired communication RS485  AMI solutions for multi - dwelling storey buildings
    • Wired communication RS485  AMI solutions for multi - dwelling storey buildings
    • Wired communication RS485  AMI solutions for multi - dwelling storey buildings
  • Wired communication RS485  AMI solutions for multi - dwelling storey buildings

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: STS
    Model Number: Calinpay-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: With meters in carton or in memory card
    Delivery Time: 30 days
    Payment Terms: Western Union, L/C, T/T, Paypal
    Supply Ability: 7,000,000
    Contact Now
    Detailed Product Description
    Standard: IEC62055-51, IEC 62056-21, DLMS/COSEM O/S: Windows Linux
    Database: SQL ORACLE Operation: Multi-threaded Transaction
    Connection Type: RS485 To Concentrator, GPRS To HES Communication: Internet, Intranet, LAN / WAN
    High Light:

    ami systems

    ,

    amr system

    Wired communication RS485  AMI solutions for multi - dwelling storey buildings



    RS485 is a baud commnication port within Calin's meter. It provides the most comprehensive raw data of the meter including metrological value, firmware version, tariff plans, interval settings, alarm threshold, etc. Multi-storey buildings, multi-dweller complexing, student dormitry, body corporates, section-tile community of densely populated areas are perfect situation for this setup. Meters are normally locked away from cutomers premises in a cabinet or kiosk, allowing wired connection in most limited space. For communication with the back end server, a data collector or mini-concentrators can be utilized to link with the meter cabinet as a group control unit, and through GPRS or cable connected to the head-end server.

    The communcation between the meter and the server is two-way, meaning meter transmit data and receive command from the head-end as well. A utility can implement load management control with the data readout and analytic tools of the system.
     Wired communication RS485  AMI solutions for multi - dwelling storey buildings 0





    Key Benefit

    1)     Two way communication IEC standards compliant

    2)     Stable connection from the bottom layer to the head-end servers (HES)

    3)     Automated meter readout and remote load management as in intrusive controls

    4)     Interface with billing system and any other third party system softwares

    5)     Easy and quick to setup

    6)     Reduced operational cost and labor cost for meter reading service





    AMI electricity meter Specification Datasheet





    Parameter

    1 Phase

    3 Phase

    Nominal voltage

    110/120/220/230/240V

    Un (40%- 130%)

    3x110/120/220/230/240V Un(30%- 135%)

    Norminal current

    5(60)A

    10(100)A

    Connection type

    Whole current / CTVT connection

    Whole current / CTVT connection

    Maximum current

    80A

    100A

    Frequency

    50Hz

    50Hz

    Accuracy class

    IEC Class.1

    IEC Class.1

    Voltage circuit burden

    ≤1.5W & 1.2VA

    ≤1.5W & 5VA

    Current circuit burden

    ≤0.2VA

    ≤0.5VA

    Protective class

    IP 54 as  IEC 60529

    IP54 as  IEC 60529

    Insulation class

    6kV Class II

    6.5kV Class II

    Surge immunity

    4 kV

    4.3kV

    Electrostatic discharge

    15kV

    16kV air discharge

    Immunity to HF fields

    80MHz to 2GHz@30V/m

    80MHz to 2GHz@30V/m

    Fast transient burst

    4.3kV

    4.3kV

    Radio interference

    As CISPR22

    As CISPR22

    Battery life without power

    10 years

    10 years

    Dimension

    160mmx112mmx71mm

    290mmx170mmx85mm

    Weight

    Approximate 0.7kg

    Approximate 3kg
