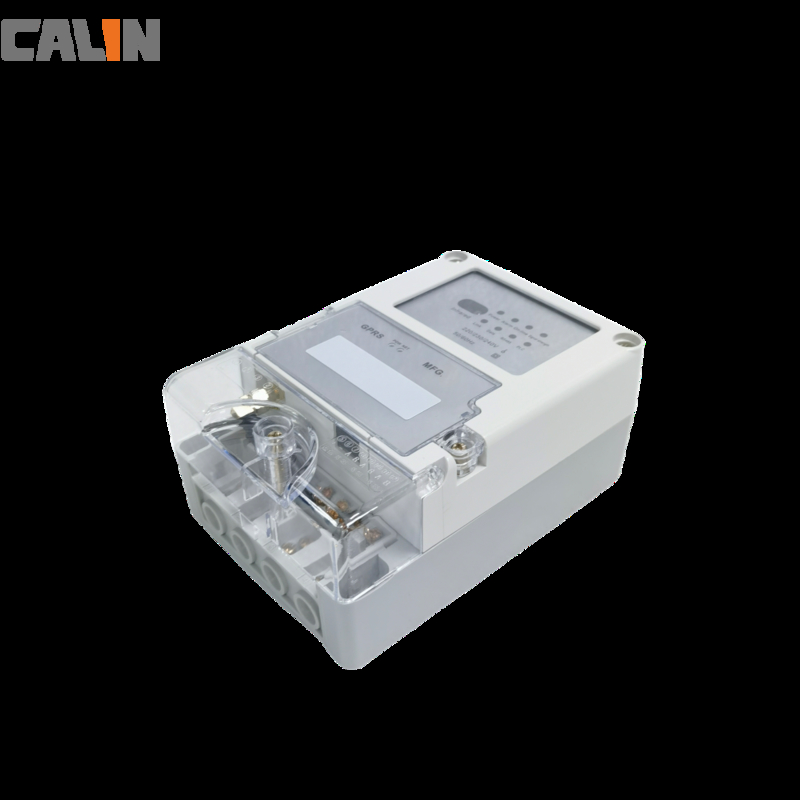

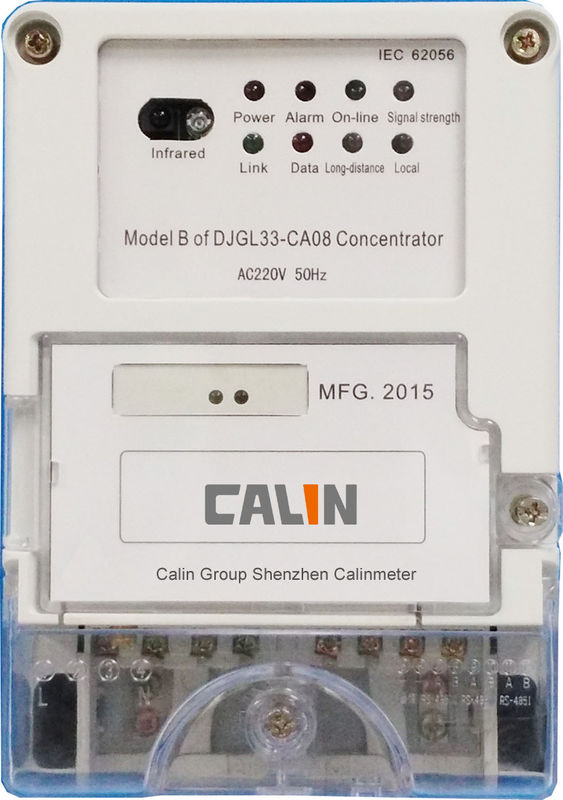

Mini data concentrator for AMI Solutions Plug - in module , single phase PLC RS485 GPRS connect to HES

Product Details

Place of Origin: China

Brand Name: Calin

Certification: CE/SABS/IEC

Model Number: CA168-M

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Carton

Delivery Time: 30 days

Payment Terms: western Union,Paypal, T/T, L/C

Supply Ability: 70,000pcs per month

Get Best Price
Highlight:

amr solutions

,

amr system

,

Mini data concentrator

Product Name:
Single Phase Mini Data Concentrator
Feature:
Modular Design
Dimensions:
160x112x58mm
Weight:
750 G
Display:
Backlit LCD 8 Digits + Icons
Capacity:
Downlink With 32 Pcs Meters
Load Switch:
N/A
Material:
ABS Blend With Fire Retardant
Product Name:
Single Phase Mini Data Concentrator
Feature:
Modular Design
Dimensions:
160x112x58mm
Weight:
750 G
Display:
Backlit LCD 8 Digits + Icons
Capacity:
Downlink With 32 Pcs Meters
Load Switch:
N/A
Material:
ABS Blend With Fire Retardant
Mini data concentrator for AMI Solutions Plug - in module , single phase PLC RS485 GPRS connect to HES

Mini data concentrator for AMI Solutions Plug - in module , single phase PLC RS485 GPRS connect to HES



The mini concentrator is a superb data collection device in multi-dweller and multi-apartment building or complexes. It connects the meters via RS485 communication and can accommodate up to 64 pcs. Its uplink to head-end master station is GPRS. It can relay the data transfer, reduce the network burden, and backup the entire metering system structure.

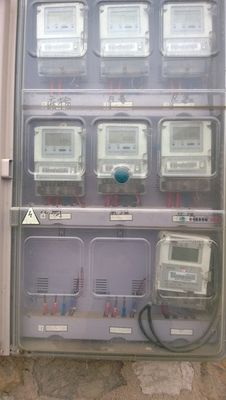

In the places where many meters are situated closely within one limited space, mini-concentrator is the most economic and reliable means of managing various meters.



 Main Features

1)     GPRS for data exchange with head-end server (HES)

2)     IR optical and RS485 serial port

3)     Real-time meter readout

4)     Remote load management control over sub-meters

5)     Non-volatile memeory for data retention in absence of power

6)     IEC 62056-21 and DLMS/COSEM compliant



 Utility benefits

1)     High stability

2)     Reduced operational and maintenance cost

3)     Free to choose suitable communication according to local needs

4)     Remote contractual setting with meters

5)     On demand and load shedding intrusive control over meters

6)     Long life time design with easy upgrade features





Specifications:

Electrical parameters:

Voltage

Nominal voltage Un

220V

Extended operating voltage range

80%~115%Un

Limited voltage

70%~120%Un

Frequency



Nominal frequency fn

50Hz

tolerance

-6%~2%

Current



Basic current(Ib)

1.5(6)A

Maximum current(Imax)

6A

Starting current(Ist)

3mA

Active energy constant

6400imp/kWh

Measurement Accuracy



Active energy

1%

Reactive energy

2%

Power Consumption



Power consumption in Voltage circuit

<10W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Working temperature

-30℃ to+70℃

Limited working temperature

-40℃ to+80℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV





Mechanical requirements



Meter shell Protection Rate

IP51

Protection

classII
