| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA168 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 70,000pcs per month |
| Product Name: | STS Prepaid Electricity Meter For Solar System | Designed Life: | 15 Years |
|---|---|---|---|
| Dimensions: | 155x120x52mm | Constant: | 1000 Imp/kWh |
| Accuracy: | Class 1s Class 2s | Material: | UV Stale Polycarbonate Fire Resistant |
| Tamper Protection: | Cover Open , Reverse Connection , Earthing | Display: | LCD |
| Date Exchange: | Meter Reading | ||
| High Light: | STS Prepayment meter,Sts Keypad Meter,High Accuracy STS Prepaid Meters |
||

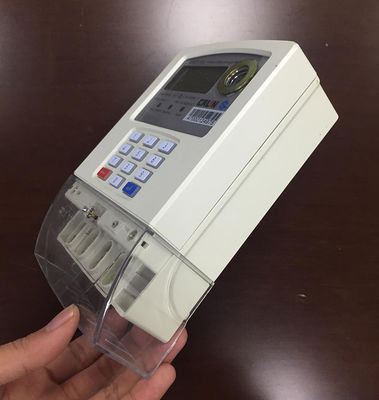

ero Maintenance High Accuracy Keypad Prepaid Electricity Meter
for Rural Area Solar System
In remotely rural area of Africa, many villages using the solar system grid, the eletricity bill and maintenance is big problem for those solar system provider. Calin designs and produces prepaid electric meters is to solve the those problems. Our prepaid electricity meter is based on the STS technology which is the most popular and mature protocol for the prepaid metering system.
The CA168 have a large working current design with an improved dynamic current of 5 Amp ,a maximum current of 80 Amp and extended features. Installation method is baased on BS8565 stanard which is more suiable for the rural area, high protection grade and anti-temper, any tampering event will be recorded along with the power will be shut off.
The CA168 single phase prepaid energy meter is easy to applicate, easy installation method and simply operate method. Also A Customer Interface Unit (CIU) is can be matched for the CA168, the CIU connect the meter by PLC, RF or 2 wire. The Auto-Meter-Reading(AMR) system is adaptive for the CA168, you can monitor every single meter in real time and get daily/monthly report.
.
Major Features
1) Shut off the power automatically if the credit use up
2) Support the max power limit setting
3) Double wire measurement
4) Anti-tamper and record
5) Low credit warning
Key benefits
a) Support PLC/ RF / GPRS communication (On request)
b) Time of Use (TOU) , multi-rate, holiday setting
c) Easy and quick to install with exisiting wires
d) 15 year designed life
e) Easy to build a AMR/AMI network
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
