Place of Origin: | China |
Brand Name: | Calin |
Certification: | CE/SABS/IEC |
Model Number: | CA168 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Carton |
Delivery Time: | 30 days |
Payment Terms: | western Union,Paypal, T/T, L/C |
Supply Ability: | 70,000pcs per month |

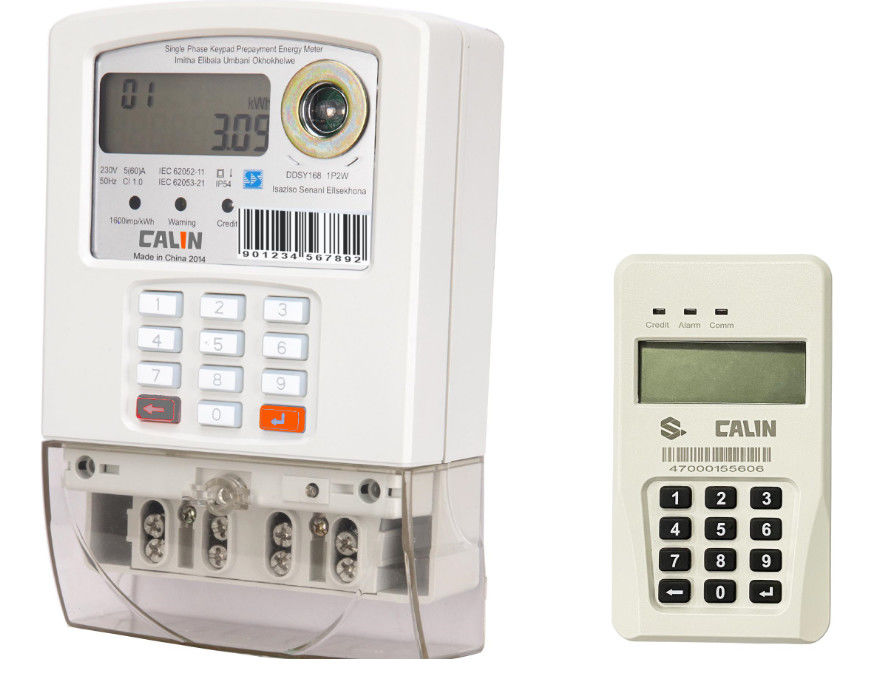

Product Name: | Minigrid Smart Prepaid Prepayment Meter | Latch Relay: | Build-in |
---|---|---|---|
Dimensions: | 155x120x52mm | Weight: | 700 G |
Consumption Rate: | 1000 Imp/kWh | Accuracy: | Class 1 |
Data Port: | Infrared Optical | Split Keypad: | Optional |
Communication: | RF | ||
High Light: | 20mA Single Phase Prepayment Meter,2W Single Phase Prepayment Meter,Infrared Optical Prepaid Energy Meter |

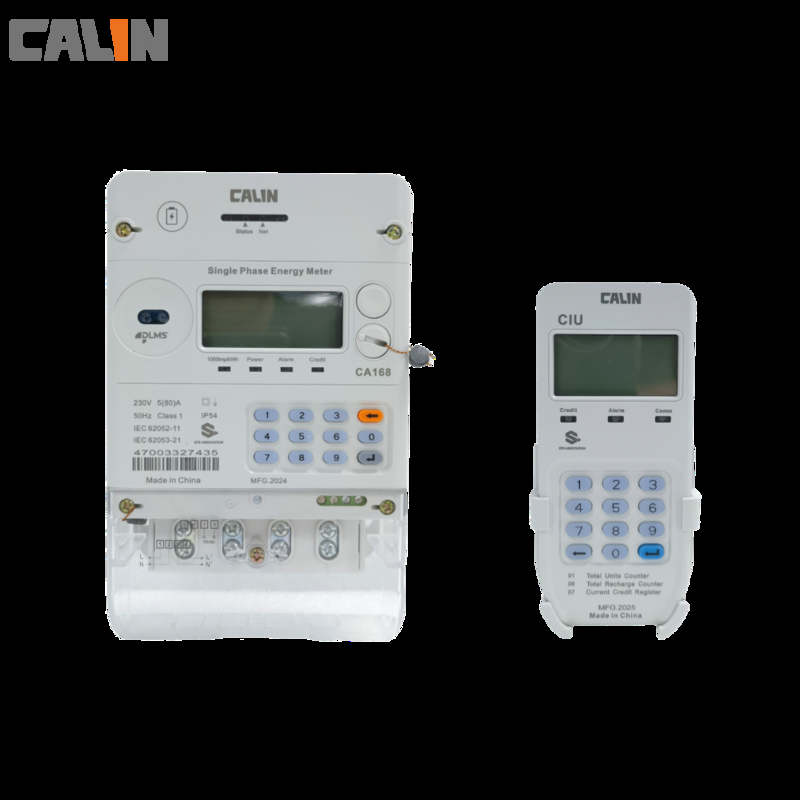

Photovoltaic (PV) power generation is growing fastly in South Asia and Africa, As mini-grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is specially designed for PV solar generation mini-grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built-in an RF module in the meter so that the monitoring and management system can be developed, the meter sends the data to the data concentrator by RF, and then the data concentrator uploads the data by GPRS. The repeater can extend the communication range for the data concentrator.
Major Features
Utility benefit
Specifications:
Nominal voltage Un |
220/230/240 V |
Limited voltage |
70%~120%Un |
Nominal frequency fn |
50-60Hz+5% |
Basic current(Ib) |
5-10A |
Maximum current(Imax) |
60-100A |
Starting current(Ist) |
20mA |
Active energy constant |
1000imp/kWh |
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
Power consumption in Voltage circuit |
<2W <8VA |
Power consumption in current circuit |
<1VA |
Operating temperature |
25℃ to+70℃ |
Storage temperature |
40℃ to+85℃ |
Insulation level |
4kV rms for 1min |
Impulse voltage withstand |
8kV, 1.2/50 μs |
Air discharge |
16kV |
Immunity to HF fields |
|
80MHz to 2GHz with load |
10V/m |
100kHz to 1GHz without load |
30V/m |
Fast transient burst test |
4kV |
Meter shell Protection Rate |
IP54(IEC60529) |
Insulation System Classification |
Protective Class II |
