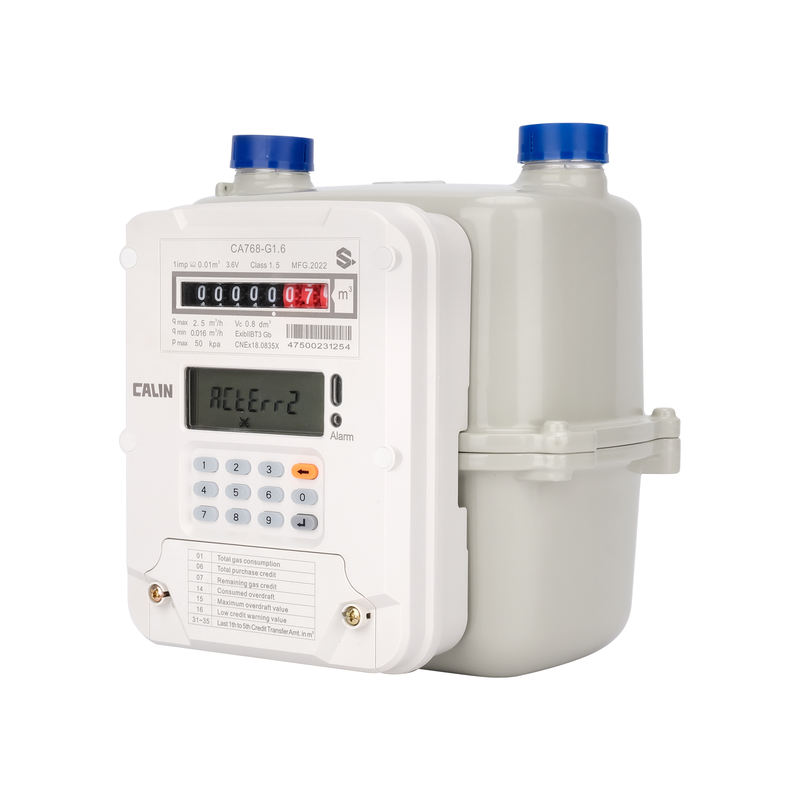

LoRa Hybrid G1.6 G2.5 G4 Wireless Prepaid Gas Meter

Product Details

Place of Origin: Shenzhen China

Brand Name: CALIN

Certification: STS Certificates

Model Number: CA768

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Standard Packing

Delivery Time: 6 weeks

Supply Ability: 500000Piece/Year

Get Best Price
Highlight:

G4 Wireless Prepaid Gas Meter

,

G1.6 Wireless Prepaid Gas Meter

,

LoRa Hybrid Gas Meter

Material:
Steel
Color:
White
Output:
Pulse
Type:
Diaphragm
Valve:
Bakelite Phenolic
Material:
Steel
Color:
White
Output:
Pulse
Type:
Diaphragm
Valve:
Bakelite Phenolic
LoRa Hybrid G1.6 G2.5 G4 Wireless Prepaid Gas Meter

            Steel Material Smart wireless Prepaid Gas Meter , LoRa Prepayment Gas Meter STS, Hybrid gas meter



Calinmeter is a leader in STS smart prepayment metering in China. As number 47th STSA member, Calin has more than 10 years experience in STS metering. The CA768 is a successful migitation from STS electric to gas meter. The base body meter is designed to accurately measure volumes of natural gas, town gas liquefied petroleum gas etc. STS compliant electronic control unit is added as perfect revenue protection facility at the same time. Calin STS gas meter are being supplied to Iraq, Pakistan, Indonesia, Mexico, Kenya, Tanzania, and many other countries and regions.



Calin gas meter can work with a customer interface unit keypad (CIU) via wireless connection. CIU is installed within customer's premise when the meter is installed and locked away. Customer use CIU to check for balance, and topup history, and most importantly remotely enter recharge token code.



Main Features



   Full coverage of G1.6, G2.5 and G4

   Die-cast steel case ( alumium case availabe on request)

   Topup with 20 digits TOKEN to be entered on keypad

   Can be used in either Prepaid or  post-paid mode

   Up to 7 years' battery life

   Anti tamper valve shut-off

   Gas leakage detection ( sensors required / optional)

   LoRa TM sementech prepared for AMR/AMI smart metering setup

   Low credit warning





Key Benefits

   Highly secured STS standard

   Security seals that indicate tampering

   Long life and smooth operation molded, convoluted diaphragms

   Easy connection to User Interface Unit(UIU) for split type applications







Parameters



Type G1.6 G2.5 G4
Nominal Flow Rate m³/h 1.6 2.5 4
Maximum Flow Rate m³/h 2.5 4 6
Minimum Flow Rate m³/h 0.016 0.025 0.040
Maximum Work Preesure 50kPa / 7 psi
Basic Error % Qmin<Q<0.1Qmax: ±3; 0.1Qmax<Q<Qmax: ±1.5;
Leak-Provenance kPa No leakage below 15kPa
Pressure Loss kPa <250
Maximum Reading m³ 99999.9
Minimum Reading m³ 0.2
Weight(kg)
2 kg




Dimensions and diagram

LoRa Hybrid G1.6 G2.5 G4 Wireless Prepaid Gas Meter 0
