Single Phase LCD STS Prepayment Meter For Rural Area Solar System

Single Phase LCD STS Prepayment Meter For Rural Area Solar System

Single Phase LCD STS Prepayment Meter For Rural Area Solar System
Single Phase LCD STS Prepayment Meter For Rural Area Solar System

Product Details:

Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: STS Prepaid Electricity Meter For Solar System Designed Life: 15 Years
Dimensions: 155x120x52mm Constant: 1000 Imp/kWh
Accuracy: Class 1s Class 2s Material: UV Stale Polycarbonate Fire Resistant
Tamper Protection: Cover Open , Reverse Connection , Earthing Display: LCD
Phase: Single Phase Nominal Voltage Un: 220/230/240V
High Light:

LCD STS Prepayment Meter

,

Single phase STS Prepayment Meter

,

LCD sts prepaid water meter

Single Phase LCD STS Prepayment Meter For Rural Area Solar System



High Accuracy Keypad Prepaid Electricity Meter for Rural Area Solar System​





In remotely rural area of Africa, many villages using the solar system grid, the eletricity bill and maintenance is big problem for those solar system provider. Calin designs and produces prepaid electric meters is to solve the those problems. Our prepaid electricity meter is based on the STS technology which is the most popular and mature protocol for the prepaid metering system.





The CA168 have a large working current design with an improved dynamic current of 5 Amp ,a maximum current of 80 Amp and extended features. Installation method is baased on BS8565 stanard which is more suiable for the rural area, high protection grade and anti-temper, any tampering event will be recorded along with the power will be shut off.

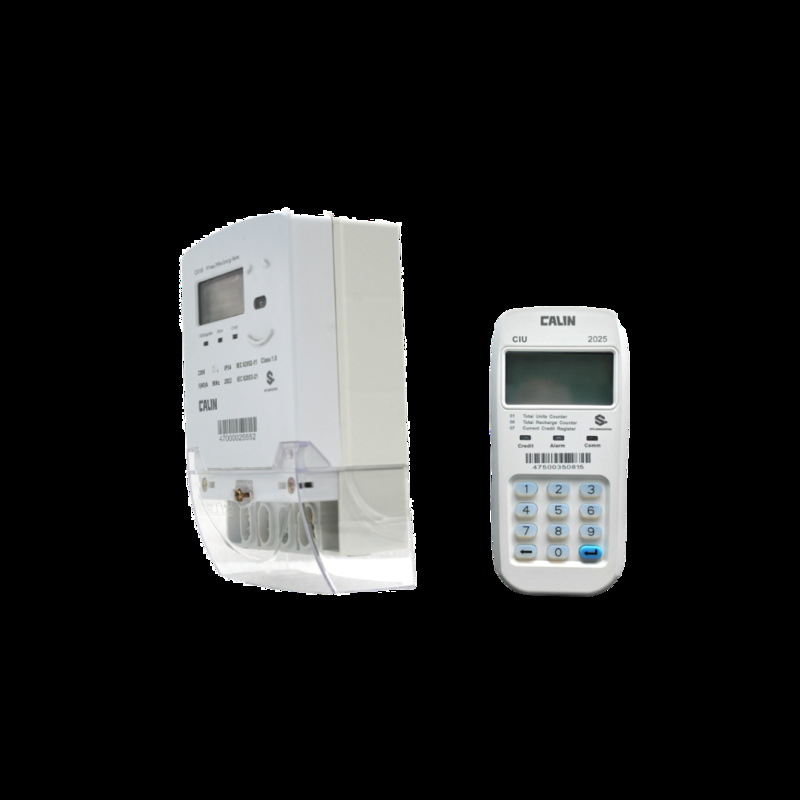

The CA168 single phase prepaid energy meter is easy to applicate, easy installation method and simply operate method. Also A Customer Interface Unit (CIU) is can be matched for the CA168, the CIU connect the meter by PLC, RF or 2 wire. The Auto-Meter-Reading(AMR) system is adaptive for the CA168, you can monitor every single meter in real time and get daily/monthly report.



.



Major Features

1) Shut off the power automatically if the credit use up

2) Support the max power limit setting

3) Double wire measurement

4) Anti-tamper and record

5) Low credit warning





 Key benefits

a) Support PLC/ RF / GPRS communication (On request)

b) Time of Use (TOU) , multi-rate, holiday setting

c) Easy and quick to install with exisiting wires

d) 15 year designed life

e) Easy to build a AMR/AMI network





Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70~120%Un

Nominal frequency fn

50Hz-60Hz+5%

Basic current(Ib)

5A-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II





Single Phase LCD STS Prepayment Meter For Rural Area Solar System 0
