|Place of Origin:||China|
|Minimum Order Quantity:||Negotiation|
|Delivery Time:||30 days|
|Payment Terms:||western Union,Paypal, T/T, L/C|
|Supply Ability:||70,000pcs per month|
|Product Name:||DIN RAIL Energy Meter||Latch Relay:||Build-in|
|Consumption Rate:||1000 Imp/kWh||Data Port:||Infrared Optical|
IP54 Prepaid Electricity Meters,
60Hz Prepaid Electricity Meters,
IP54 Electric Payment Meters

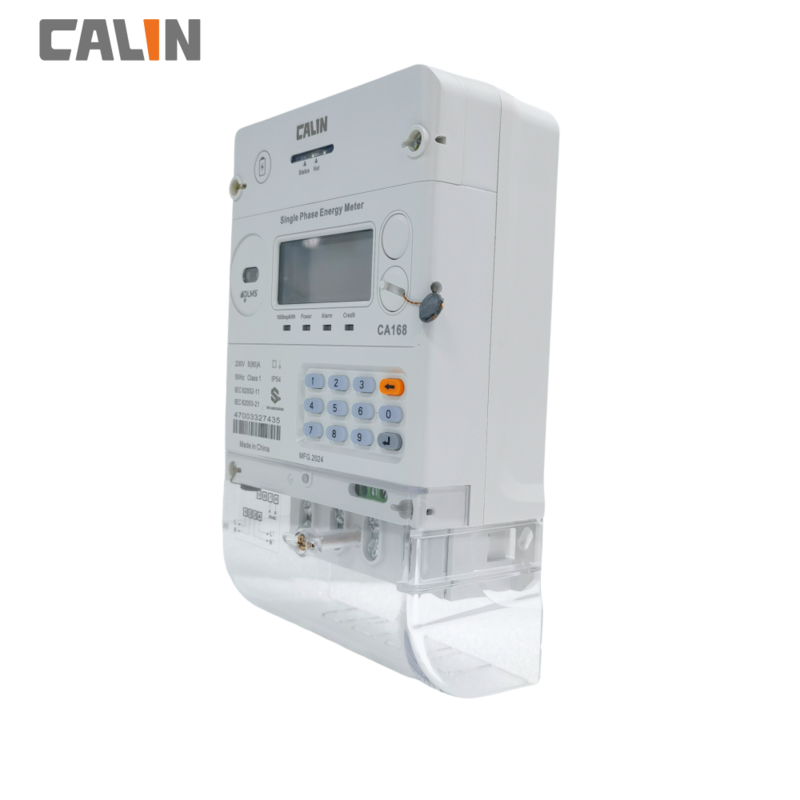

Single Phase IP54 Prepaid Electricity Meters RF PLC GPRS Communication
Smart DLMS single phase DIN rail energy meter with RF/PLC/GPRS communication
Photovoltaic (PV) power generation is growing fastly in the South Asia and Africa, As mini grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is special designed for PV solar generation mini grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built in a RF module in the meter so that the monitoring and management system can be developed, the meter send the data to the data concentrator by RF, and then the data concentrator upload the data by GPRS. The repeater can extend the communication range for data concentrator.
20 digit (Standard Transfer Specification) STS encryption
Detection of significant reverse energy (SRE)
IEC62056-21 compliant port allowing for easy data interrogation
Disconnects on overload and no credit
Dual power source working on both prepaid and credit mode
Programmable load limit and low credit warning
Detection and record tamper event such as cover open, reversal, black-out, etc.
Easy access to 12 months historical consumption data and last 5 token entered
Easy connection to User Interface Unit (UIU) for split type applications
RF / PLC/ GPRS wireless communication with a head-end AMR/AMI server
Time of Use (TOU), multi-tariff, holiday setting.
Advanced load control and disconnection features
|Nominal voltage Un||220/230/240 V|
|Nominal frequency fn||50-60Hz+5%|
|Active energy constant||1000imp/kWh|
|Accuracy as Active energy to IEC62053‐21||Class1.0|
|Power consumption in Voltage circuit||<2W <8VA|
|Power consumption in current circuit||<1VA|
|Operating temperature||25℃ to+70℃|
|Storage temperature||40℃ to+85℃|
|Insulation level||4kV rms for 1min|
|Impulse voltage withstand||8kV, 1.2/50 μs|
|Immunity to HF fields|
|80MHz to 2GHz with load||10V/m|
|100kHz to 1GHz without load||30V/m|
|Fast transient burst test||4kV|
|Meter shell Protection Rate||IP54(IEC60529)|
|Insulation System Classification||Protective Class II|
1. What can you supply?
A: We can supply custom Prepaid Electricity Meters, STS Prepaid Meters, Single Phase Electric Meter and so on, all kinds of Electric Meter.
2. Are OEM and ODM available?
* Yes, they are. As a professional Electricity Meters manufacturer, we offer OEM and ODM service.
Q: What are your main products?
A:Our main products are Electricity Meters.
4. How about your product warranty?
* We offer one-year warranty upon delivery.
5. How about the aftersales support?
* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
