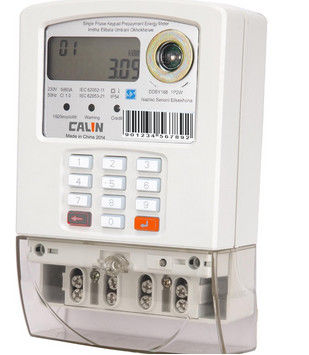

Programmable Electric Digital Kilowatt Meter IP54 Single Phase

Programmable Electric Digital Kilowatt Meter IP54 Single Phase

  • Programmable Electric Digital Kilowatt Meter IP54 Single Phase
Programmable Electric Digital Kilowatt Meter IP54 Single Phase
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 1 Phase Prepaid Electricity Dispenser Tariff: Time Of Use
Dimensions: 155x120x52mm Weight: 700 G
Standard: IEC/SABS Tamper Protection: Cover Open , Reverse Connection , Earthing
Communication: Power Line Carrier Display: LCD
Cover Type: Flush Straight Date Exchange: Meter Reading
Application: Residential
High Light:

IEC60529 Digital Kilowatt Meter


IP54 Digital Kilowatt Meter


IP54 digital kwh meter

Programmable Electric Digital Kilowatt Meter IP54 Single Phase


IP 54 Single Phase Enery Meter Keypad Residential Electric Meters Digital KWH Meter


Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.Calin's prepaid meters own anti-tamper features . The meter is built with multi sensors and triggers. including tamper shutdown protection ,disconnects on overload and no credit .


The CA168 is applied for a broad rang of STS prepayment applications, Thanks to an improved dynamic current range enabling a basic current of 5 Amp while retaining a maximum current of 80 Amp and expanded functional features.CA168 is a compact and keypad-based design in a BS8565 standard housing and maintains the tamper proof protection features, allowing it to be installed in harsh environments.


The CA168 combines IEC compliant accuracy metrology and DLMS/COSEM standard compatible communication technology.The feature rich device provides enhanced tamper protection, as well as programmable under and over voltage and reverse energy measurement.




a) Programmable under and over voltage trip

b) Enhanced tamper detection

c) Reverse energy measurement

d) Display trip condition

e) Tamper shutdown protection

f )  Instrument Current Transformers & Potential Transformers

g)  IP 54 rated





Nominal voltage Un

220/230/240 V

Limited voltage


Nominal frequency fn


Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant


Accuracy as Active energy to IEC62053‐21


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge


Immunity to HF fields


80MHz to 2GHz with load


100kHz to 1GHz without load


Fast transient burst test


Meter shell Protection Rate


Insulation System Classification

 Protective Class II


Programmable Electric Digital Kilowatt Meter IP54 Single Phase 0
