Split Type Single Phase Prepaid Electricity Meters BS5685 Footprint Kwh Meter

Split Type Single Phase Prepaid Electricity Meters BS5685 Footprint Kwh Meter

  • Split Type Single Phase Prepaid Electricity Meters BS5685 Footprint Kwh Meter
Split Type Single Phase Prepaid Electricity Meters BS5685 Footprint Kwh Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-S
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 1 Phase Split Keypad Watt Hour Meter Mounting: BS5685 Footprint
Weight: 700 G Constant: 1000 Imp/kWh
Accuracy: Class 1s Standard: IEC/SABS
High Light:

1000 imp/kWh Prepaid Electricity Meters

,

BS5685 Prepaid Electricity Meters

,

BS5685 conlog prepaid meter

Split Type Single Phase Prepaid Electricity Meters BS5685 Footprint Kwh Meter



Split Type Single Phase Keypad Prepaid Electricity Meters Din Rail Mounted Kwh Meter



The CA168-S is a splity type compact and keypad-based design prepaid meter. It is in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.The meter is applied for a broad rang of prepayment applications,



The CA168-S is a splity Din Rail mounting designed prepayment meter . It is in an international 35mm Din Rail housing and keypad based with STS encryption.The meter is provided for a broad rang of prepayment applications







Key Features

1) Split type configuration, easy and low cost installation

2) Programmable power threshhold trip

3) Enhanced tamper detection

4) Reverse energy measurement SRE

5) Programmable power limit

6) Tamper shutdown protection







 Utility benefits

a) PLC/ RF / GPRS communication (On request)

b) Time of Use (TOU) , multi-rate, tariff control, holiday setting

c) Tamper free with split type setting

d) Long life time design (15yrs)







Specifications:

Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II

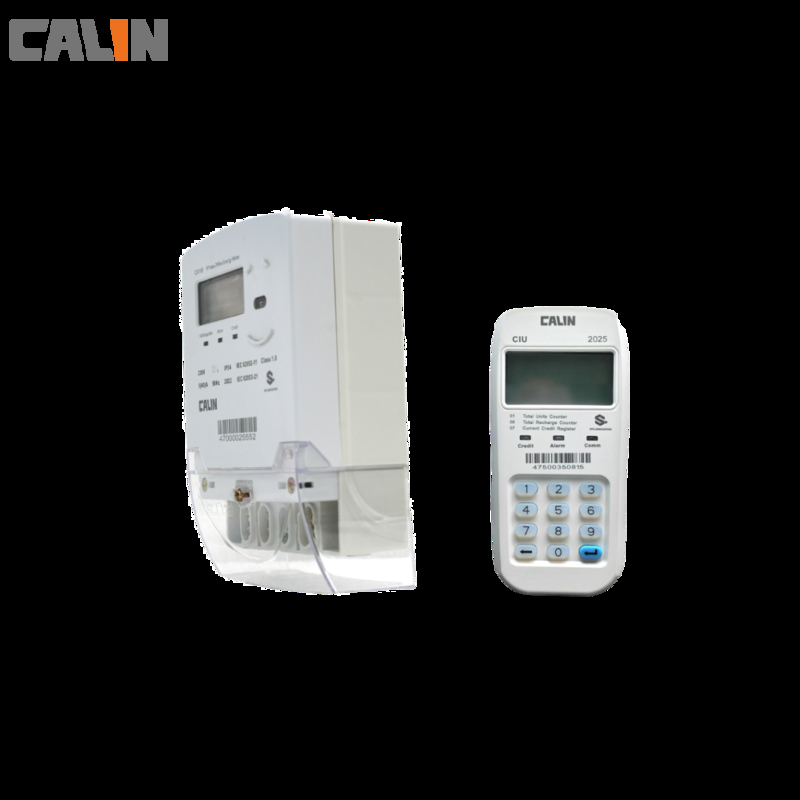

Split Type Single Phase Prepaid Electricity Meters BS5685 Footprint Kwh Meter 0







Split Type Single Phase Prepaid Electricity Meters BS5685 Footprint Kwh Meter 1
