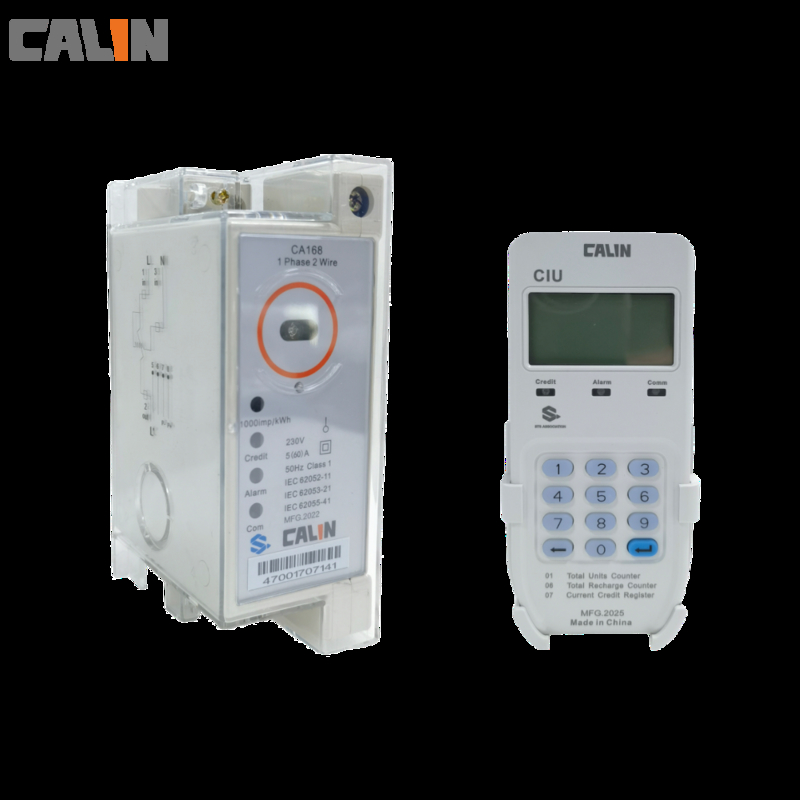

AC/DC Prepaid Electricity Meters With RS485/GPRS/Zigbee Communication Interface

AC/DC Prepaid Electricity Meters With RS485/GPRS/Zigbee Communication Interface

  • AC/DC Prepaid Electricity Meters With RS485/GPRS/Zigbee Communication Interface
AC/DC Prepaid Electricity Meters With RS485/GPRS/Zigbee Communication Interface
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE, ISO9001
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NA
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 1000 pcs/day
Contact Now
Detailed Product Description
Voltage Range: 220V-240V Operating Temperature: -20℃~+55℃
Weight: 0.5kg Data Storage: SD Card
Dimension: 120mm*120mm*50mm Accuracy: Class 1.0
Display: LCD/LED Power Supply: AC/DC
High Light:

Prepaid Electricity Meters With RS485

,

GPRS Prepaid Electricity Meters

,

Prepaid Electric Meter with Data Storage

Product Description:

Photovoltaic (PV) power generation is growing quickly in South Asia and Africa, providing an efficient way to provide electricity to remote locations that are not within the utility grid's boundaries. The CA168 is a device designed specifically for PV solar generating mini grids, providing support for currents of 5A, 16A, 40A, and 60A as well as a nominal voltage of 230V and a Class 1 accuracy class to guarantee proper measurements.

Including a built-in RF module, the meter can interface with a monitoring and management system, transmitting data from the meter to a data concentrator via RF. The data concentrator then uploads the gathered data via GPRS, while a repeater can be used to expand the communication range of the data concentrator.



Features:

Standard Transfer Specification (STS) Encryption

This technology provides 20 digit encryption within the STS protocol. It is incredibly secure and compliant with IEC62056-21 standards, allowing for easy data interrogation.

Reverse Energy Detection (SRE)

This feature will identify any instances of considerable reverse energy (SRE) within the system.

Power Source

The dual power source enables both prepaid and credit modes. In addition, it will detect and disconnect on overload and open the circuit when there is no credit available.

Load and Credit Management

The load limit is programmable and has the capacity to give a low credit warning to notify the user when their credit is low.

Tamper Detection and Historical Data Recording

Any events of tampering such as cover open, reversal, or black-outs will be identified and recorded. The system can also easily access 12 months of historical consumption data and the last five tokens that were entered.



Technical Parameters:

Parameter Value
Data Storage SD Card
Dimension 120mm*120mm*50mm
Product Name Prepaid Electricity Meters
Display LCD/LED
Power Supply AC/DC
Operating Humidity 20%~90%RH
Type Single Phase/Three Phase
Frequency 50Hz/60Hz
Weight 0.5kg
Voltage Range 220V-240V
Keywords Keypad Electricity Meter, Electric Smart Meter, Electric Meter


Applications:

Calin CA168 Electric Meter is a prepaid electricity meter designed for commercial applications. It is certified by CE and ISO9001, and comes with a minimum order quantity of 1. The price and packaging details are available upon request. It has a fast delivery time of 5-8 working days, and payment terms including T/T, AliPay and PayPal are accepted. The meter is capable of handling up to 1000 pcs/day and has a communication interface of RS485/GPRS/Zigbee. The frequency ranges from 50Hz/60Hz and it is powered by AC/DC. It has a LCD/LED display and data storage of SD Card.



Support and Services:

Prepaid Electricity Meters Technical Support and Service

We provide customers with comprehensive technical support and service for Prepaid Electricity Meters. Our team of experienced technicians and engineers is available to answer any questions you may have regarding the use and maintenance of your Prepaid Electricity Meter.

We provide technical advice and support to help you set up, install, and maintain your Prepaid Electricity Meter. We also offer troubleshooting assistance for any issues you may be experiencing. We provide repair and maintenance services for all Prepaid Electricity Meters.

Our team of technicians and engineers is available to answer any questions you may have and provide technical support for the installation, maintenance, and repair of your Prepaid Electricity Meter. We are committed to providing our customers with the highest quality of support and service.



FAQ:

Q: What is the Brand Name of Prepaid Electricity Meters?

A: The Brand Name of Prepaid Electricity Meters is Calin.

Q: What's the Model Number of Prepaid Electricity Meters?

A: The Model Number of Prepaid Electricity Meters is CA168.

Q: Where is Prepaid Electricity Meters made?

A: Prepaid Electricity Meters is made in China.

Q: What certificates does Prepaid Electricity Meters have?

A: Prepaid Electricity Meters has CE and ISO9001 certificates.

Q: What is the Minimum Order Quantity of Prepaid Electricity Meters?

A: The Minimum Order Quantity of Prepaid Electricity Meters is 1.
