Product Details
Place of Origin: China
Brand Name: Calin
Certification: IEC/DLMS/COSEM/CE
Model Number: CA168
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Product Name: |

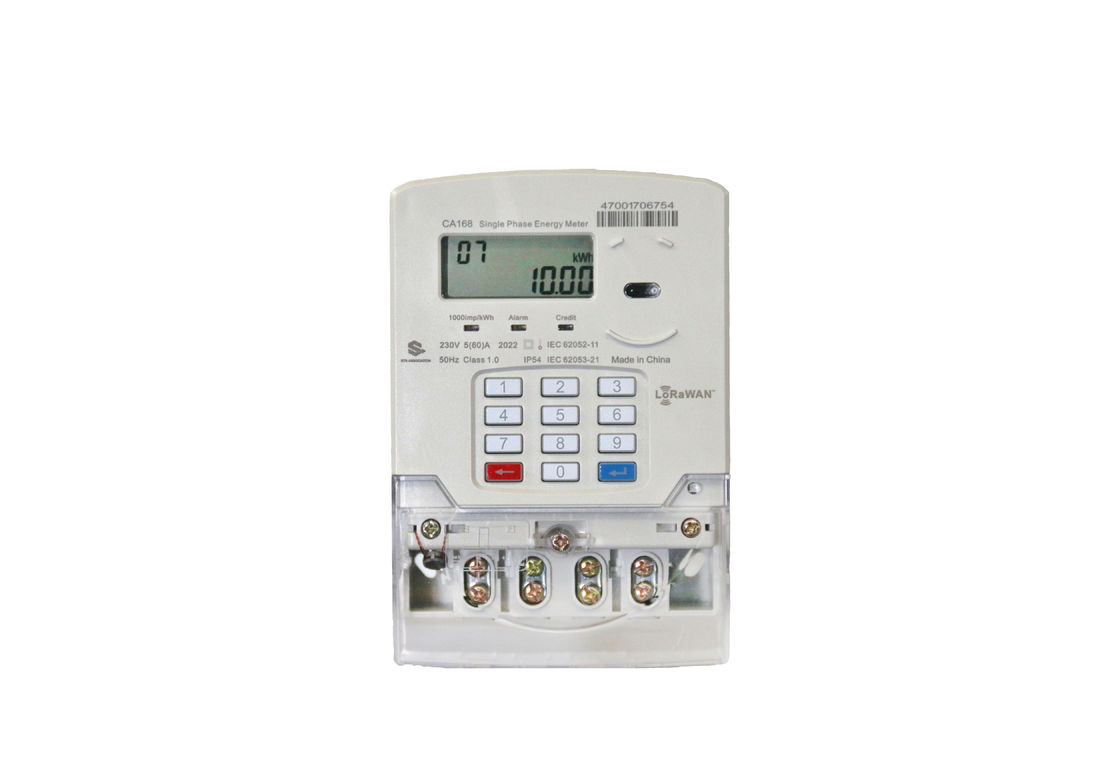

Single Phase Two Wire STS Prepaid Energy Meter With Enclosure, Meter Box Protection |
Standard: |
SANS1524-1 , IEC62056-21 |
Weight: |
750 G |
Installation: |
BS Footprint |
Material: |
PC Case + PCBA |
Nominal Voltage: |
230V |
Current: |
5(80)A |
Product Name: |
Single Phase Two Wire STS Prepaid Energy Meter With Enclosure, Meter Box Protection |
Standard: |
SANS1524-1 , IEC62056-21 |
Weight: |
750 G |
Installation: |
BS Footprint |
Material: |
PC Case + PCBA |
Nominal Voltage: |
230V |
Current: |
5(80)A |
LoraWAN Single Phase Smart Energy Meter with AMI Features
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
