Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Product Name: |
1 Phase Prepaid Electricity Dispenser |
Tariff: |
Time Of Use |
Dimensions: |
155x120x52mm |
Weight: |
700 G |
Constant: |
1000 Imp/kWh |
Accuracy: |
Class 1s |
Standard: |
IEC/SABS |
Tamper Protection: |
Cover Open , Reverse Connection , Earthing |
Communication: |
Power Line Carrier |
Display: |
LCD |
Cover Type: |
Flush Straight |
Date Exchange: |
Meter Reading |
Application: |
Residential |
Product Name: |
1 Phase Prepaid Electricity Dispenser |
Tariff: |
Time Of Use |
Dimensions: |
155x120x52mm |
Weight: |
700 G |
Constant: |
1000 Imp/kWh |
Accuracy: |
Class 1s |
Standard: |
IEC/SABS |
Tamper Protection: |
Cover Open , Reverse Connection , Earthing |
Communication: |
Power Line Carrier |
Display: |
LCD |
Cover Type: |
Flush Straight |
Date Exchange: |
Meter Reading |
Application: |
Residential |

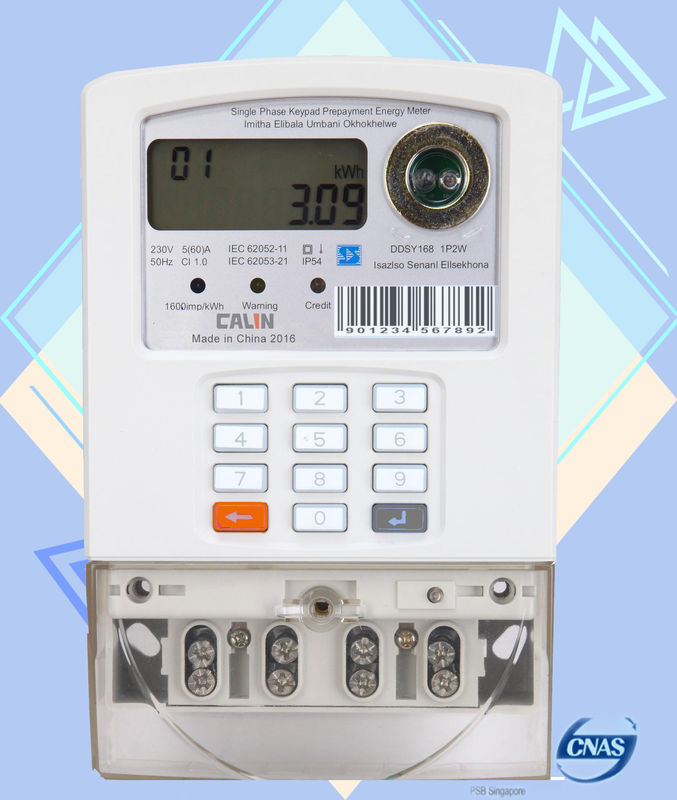

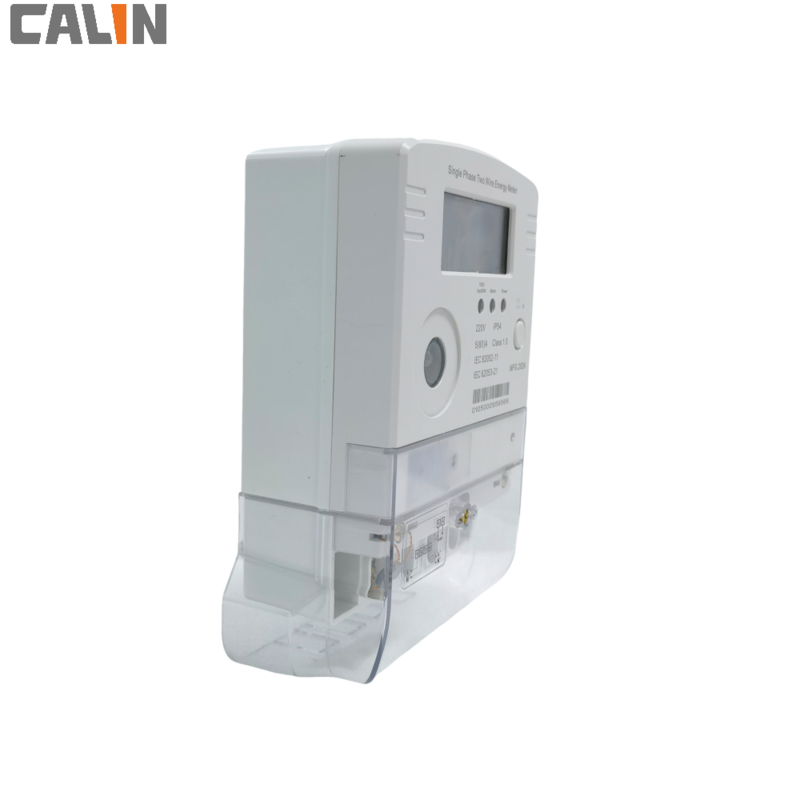

IP 54 Single Phase Enery Meter Keypad Residential Electric Meters Digital KWH Meter
Calin designs and produces prepaid electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.Calin's prepaid meters own anti-tamper features . The meter is built with multi sensors and triggers. including tamper shutdown protection ,disconnects on overload and no credit .
The CA168 is applied for a broad rang of STS prepayment applications, Thanks to an improved dynamic current range enabling a basic current of 5 Amp while retaining a maximum current of 80 Amp and expanded functional features.CA168 is a compact and keypad-based design in a BS8565 standard housing and maintains the tamper proof protection features, allowing it to be installed in harsh environments.
The CA168 combines IEC compliant accuracy metrology and DLMS/COSEM standard compatible communication technology.The feature rich device provides enhanced tamper protection, as well as programmable under and over voltage and reverse energy measurement.
Features
a) Programmable under and over voltage trip
b) Enhanced tamper detection
c) Reverse energy measurement
d) Display trip condition
e) Tamper shutdown protection
f ) Instrument Current Transformers & Potential Transformers
g) IP 54 rated
Key benefits
1) PLC/ RF / GPRS communication (On request)
2) Time of Use (TOU) , multi-tariff, holiday setting
3) Easy connection to User Interface Unit (UIU) for split type applications
4) Indoor Metal-clad switchgear and control systems
5) Enhanced revenue protection through flexible payment control
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
