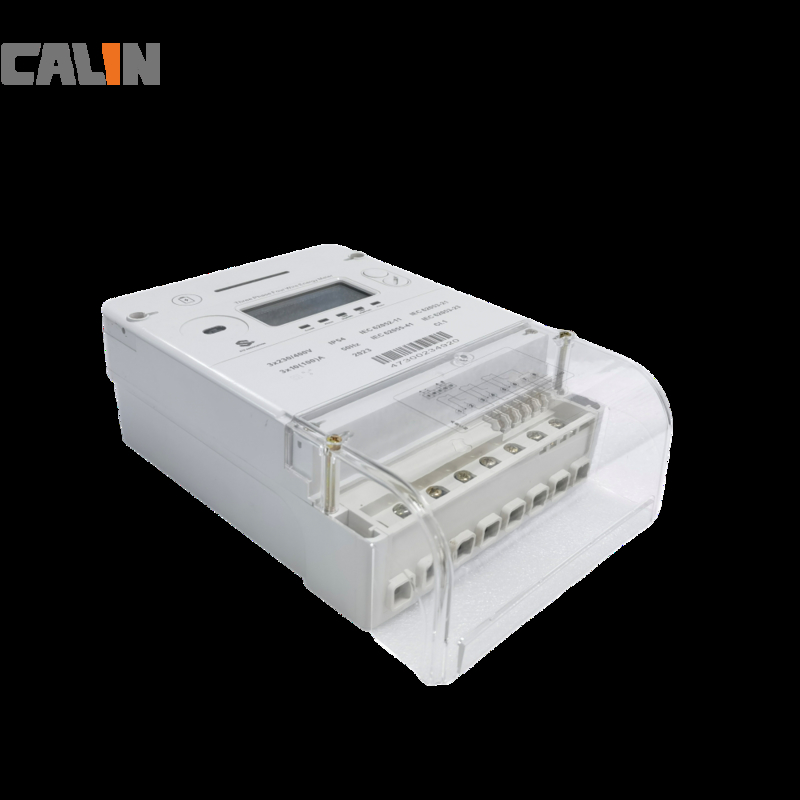

STS Compliant Prepayment Electric Meters 10A Basic Current 3 Phase Kwh Meter

STS Compliant Prepayment Electric Meters 10A Basic Current 3 Phase Kwh Meter

  • STS Compliant Prepayment Electric Meters 10A Basic Current 3 Phase Kwh Meter
STS Compliant Prepayment Electric Meters 10A Basic Current 3 Phase Kwh Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368-g
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: GPRS 3 Phase Prepaid Meter Standard: IEC62053, DLMS
Dimensions: 265x170x77mm Weight: 2.5kg
Communication: GSM GPRS Ethernet Accuracy: Class 1s
Mounting: BS 5685 Footprint Bore: 10mm
High Light:

prepayment electric meters


prepay electric meters


STS Prepayment Electric Meters

STS Compliant Prepayment Electric Meters 10A Basic Current 3 Phase Kwh Meter



The CA368-G is a new version of three phase four wire prepayment energy meter operating on the baisis of GSM / GPRS networks. It is a smart meter for light commercial and industrial prepayment applications. It  supports 4 channel load profile recording at programmable interval period as well as classic metering functions. Payment mode can be selected from head-end server between prepayment mode and credit mode.


The meter is manufactured acoording to ISO9001 standards and operatable in very harsh outdoors and indoors scenarios, thanks to its wide range ( Un -40% +20%) of voltage with  RF immunity of 30V/m. The CA368-G series is also designed for  measurement of both active and reactive energy.It is also equiped with a 2400 bps baud rate optical port for data interogation.


The GPRS features of CA368-G allows the meter to connect with  the head-end server  in a two-way communication through HTTP, TCP/IP or vpn via  local point-to-point GSM / GPRS networks.  This format is making installation and fitting simpler and faster. A utility or service provider can read and collect metering data remotely  by setting scheduled task with head-end server station. Meter information can be toggled to show by punching in different combinations..


 Key Features

1) Flexible architecture for both direct connection and CT connection type

2) Instantaneous metering data as KW, V, A, PF available for local users

3) Hybrid payment mode

4) Load Profile and max demand record at programmable intervals

5) Tamper protection, magnetic immunity, data retention in power failure, cover open detection

6) Multi-rate and multi billing cycles, Time of Use tariff management


 Key benefits

a) IEC 62056-21 and DLMS/COSEM compliance allows for max interoperability

b) Reduce non-technical loss by monitoring the circuit for precaution

c) Reduce operational and managementcost

d) Real-time monitoring online

e) Flexible consumer contractual control increases revenue protection

f) Build in load switch

g) Hermitically sealed against illegal intrusion and tamper





Electrical parameters

Nominal voltage Un


Limited voltage




Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant




Active energy to IEC62053‐21


Reactive energy to IEC62053‐23


Power Consumption


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Temperature range


Operation meter

25℃ to+70℃


40℃ to+85℃


Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections




Electro Magnetic Compatibility

Electrostatic discharges


Contact discharge


Air discharge


Electromagnetic RF fields


27MHz to 500MHz typical


100kHz to 1GHz typical


Fast transient burst test


Mechanical requirements


Protection Rating


Insulation Classification

Protective Class II

Maximum cable size

10 mm
