the only legal owner of CALIN brand and the sole manufacturer of Calin series utility meters.
Calinmeter reserve the right to pursue any legal remedies from Anyone or entity who claims as the group or affiliation of Calin or distributes Calin meter products without proper authorizations.
 |
| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA368-C |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 70,000pcs per month |
| Product Name: | 3 Phase Token Card Prepayment Meter | Standard: | IEC62053-21 |
|---|---|---|---|
| Dimensions: | 265x170x77mm | Weight: | 2.5 Kg |
| Display: | LCD 8 Digits | Accuracy: | Class 1s |
| Application: | Commercial, Business | Cable Size: | 10 Mm |
| High Light: | three phase energy meters,3 phase kwh meter,IC Card 3 Phase Electric Meter |
||

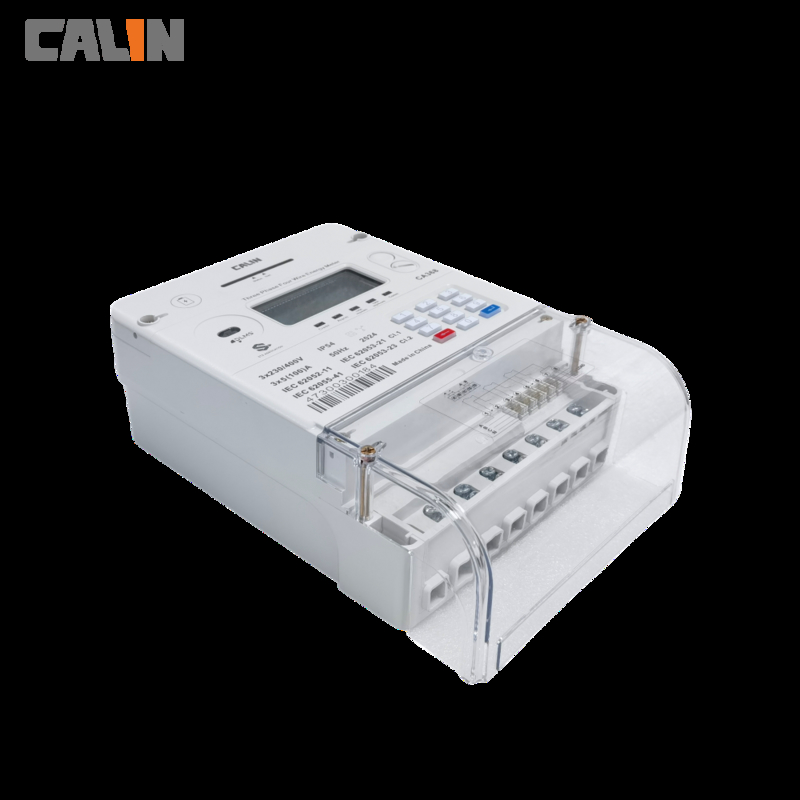

IC Card Operated 3 Phase Electric Meter , Terminal Cover Prepaid Power Meters
The CA368-C is a poly-phase electronic IC card operated, multi-tariff meter/timer with LCD readout, operating in three-phase four or three-wire networkds. It has a max load of 100A and rugged RF immunity withstand of 30Vm, allowing it to work in very harsh environments. A programming card is supplied with each meter which allows the landlord to adjust the rate, standing charge, emergency credit, etc. The case seals are out of sight to avoid being tampered with and the extended terminal cover prevents access to the cables. The Meter/Timer comes with a three year guarantee and can be used in applications such as multi-dweller complexes, office buildngs, shopping mall tenants, etc.
Featured Functions
a) Measurement of active and reactive energy
b) Maximum demand measurement
c) Load profile record at preset intervals
d) Anti-tamper design: : magnetic proof, data retention in outage, cover open detection
e) TOU with multi-tariff and multi billing cycles
f) Compact housing with IP54 protection
g) Prepared for AMR/AMI functionality
Utility Benefits
1) Fast and easy installation procedure, indications of correct connection
2) Indications of meter operation status
3) On demand and remote load management
4) Reduce operational and maintenance costs
5) Emergency credit, debt collection, fixed charges setting
6) Flexible consumer contract control
7) Long life time design
Specifications:
|
Electrical parameters: |
|
|
Nominal voltage Un |
3x240V |
|
Limited voltage |
60%~120%Un |
|
Frequency |
50/60Hz+5% |
|
Basic current(Ib) |
10A |
|
Maximum current(Imax) |
100A |
|
Starting current(Ist) |
30mA |
|
Active energy constant |
400imp/kWh |
|
Accuracy |
|
|
Active energy to IEC62053‐21 |
Class1.0 |
|
Reactive energy to IEC62053‐23 |
Class2.0 |
|
Power Consumption |
|
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Temperature range |
|
|
Operation meter |
25℃ to+70℃ |
|
Storage |
40℃ to+85℃ |
|
|
|
|
Insulation strength |
|
|
AC Insulation strength |
4kV at 50Hz during 1min |
|
Impulse voltage 1.2/50μs mains connections |
8kV |
|
|
|
|
Electro Magnetic Compatibility |
|
|
Electrostatic discharges |
|
|
Contact discharge |
8kV |
|
Air discharge |
16kV |
|
Electromagnetic RF fields |
|
|
27MHz to 500MHz typical |
10V/m |
|
100kHz to 1GHz typical |
30V/m |
|
Fast transient burst test |
4kV |
|
Mechanical requirements |
|
|
Protection Rating |
IP54 |
|
Insulation Classification |
Protective Class II |
|
Maximum cable size |
10 mm |
