Credit Mode Relay Prepaid Electric Meter Multi - Function Four wires Enery Meter

Product Details

Place of Origin: China

Brand Name: Calin

Certification: CE/SABS/IEC

Model Number: CA368-M

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Carton

Delivery Time: 30 days

Payment Terms: western Union,Paypal, T/T, L/C

Supply Ability: 70,000pcs per month

Get Best Price
Highlight:

prepayment electric meters

,

prepaid power meters

,

Four wires Prepaid Electric Meter

Product Name:
Multi-fucntion Smart Three Phase Prepaid Meter
Connection:
Whole Current Or CT/VT Connection
Com Port:
RS485, Optical Port, PLC , RF
Weight:
2.5 Kg
Display:
8 Digits' Backlit LCD
Communication:
Plug & Play Module
Case Material:
Extended Cover
Bore Diameter:
10 Mm
Original:
China
Product Name:
Multi-fucntion Smart Three Phase Prepaid Meter
Connection:
Whole Current Or CT/VT Connection
Com Port:
RS485, Optical Port, PLC , RF
Weight:
2.5 Kg
Display:
8 Digits' Backlit LCD
Communication:
Plug & Play Module
Case Material:
Extended Cover
Bore Diameter:
10 Mm
Original:
China

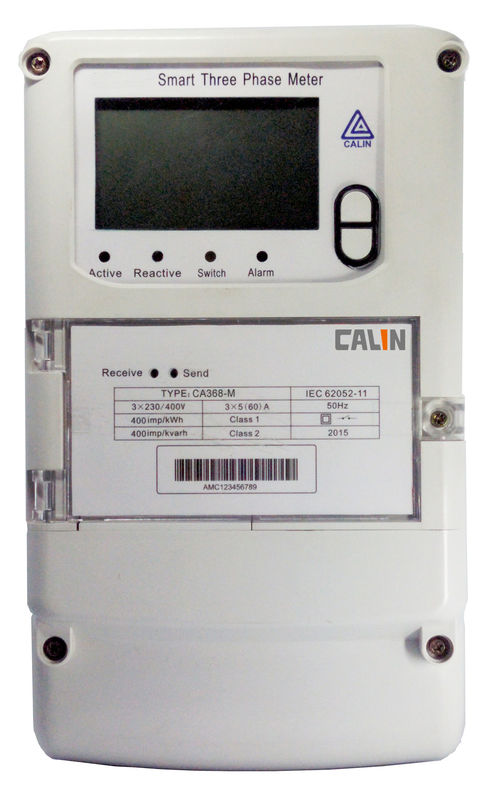

Credit Mode Relay Prepaid Electric Meter Multi - Function Four wires Enery Meter

Credit Mode Relay Prepaid Electric Meter Multi - Function Four wires Enery Meter



Calin's prepaid meters own anti-tamper features .The meter is built with multi sensors and triggers. including tamper shutdown protection ,disconnects on overload and no credit .The CA368-M works with a plug & play wireless communication module. A utility and service provider can select from Power Line Carrier (PLC) Radio Frequency (RF) LoRa, and GSM .



The CA368-M is the next generation of prepaid electricity meters and they can offer a range of intelligent functionality. It is a digital meter that records your usage in hourly increments. This allows for complex billing to be applied such as Time of Use (TOU) and Demand kVA charges.



Automatic meter reading for balance verification is carried out as a scheduled task from the central server from time to time. Consumers are allowed to check their balance anytime via access to an online account and to use a diversity of payment channels such as point of sale kiosk, online payment ( need collaboration with bank), or any third party payment platform that interfaces with the vending merchant system  within the central server, to purchase credit.



The credit is remotely topped up by the server once transaction is confirmed. This feature provides a utility and service provider dynamic monitoring and control over the supply and offers the consumers utmost convenience to buy electricity and budget their usage as well.









Major  functions

Unidirectional measurement of both active and reactive energy

■ Time of Use (TOU) and Demand kVA charges

■ High resolution load profiling at programmable intervals

■  Credit and prepayment mode switch

■  Remote topup / recharge
■  Whole current direct and CT/VT connection
■ next generation of prepaid electricity meters

■  Programmable target usage on daily , monthly basis





Utility benefits

1)    One meter suits various scenario

2)    Low operational and inventory cost

3)    Flexible setting for  tariff, emergency unit, load limit, surchages,  debt collection, etc.

4)    a diversity of payment channels

5)    The meter provides various valuable information for better management and control over supply and grid



Specifications:





Electrical parameters

Nominal voltage Un

3x 220/230/ 240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

5A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm

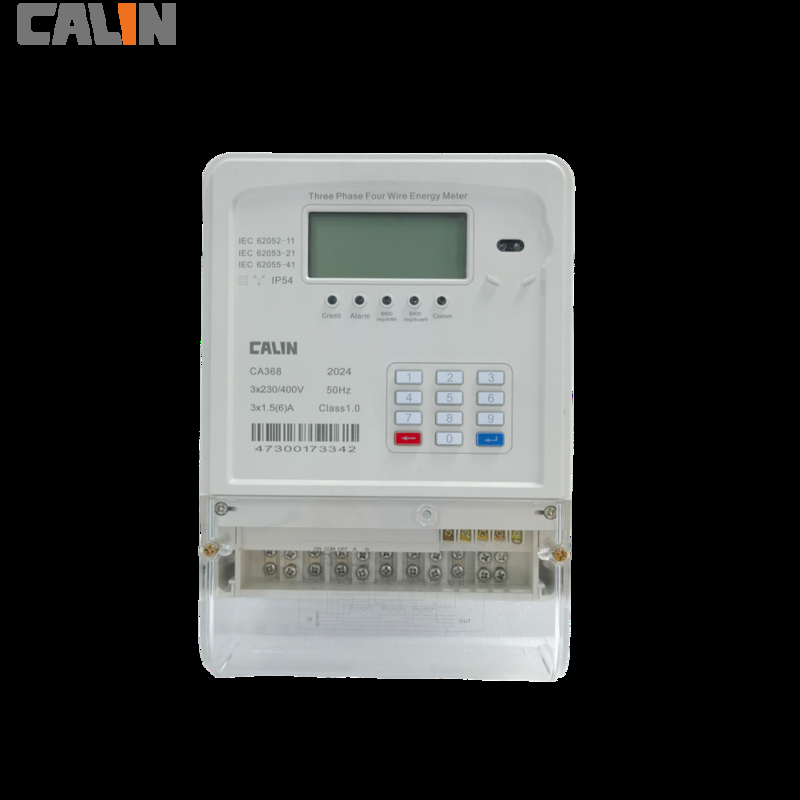

Credit Mode  Relay Prepaid Electric Meter Multi - Function Four wires Enery Meter 0
