Anti - Fraud Prepaid Power Meters 2 Wire Class Prepayment Electricity Meters

Anti - Fraud Prepaid Power Meters 2 Wire Class Prepayment Electricity Meters

    • Anti - Fraud Prepaid Power Meters  2 Wire Class Prepayment  Electricity Meters
    • Anti - Fraud Prepaid Power Meters  2 Wire Class Prepayment  Electricity Meters
  • Anti - Fraud Prepaid Power Meters  2 Wire Class Prepayment  Electricity Meters

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-I

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Standalone 2 Wire STS Prepayment Energy Meter Standard: SPLN D3.009 IEC 62052-11, IEC 62053-21
    Dimensions: 205x120x52mm Weight: 600 G
    Accuracy: Class 1s Cover Type: Extended Flush Type With MCB
    Cable Size: 8mm Cost: Low For Entry Level
    High Light:

    prepaid power meters

    ,

    prepay electric meters

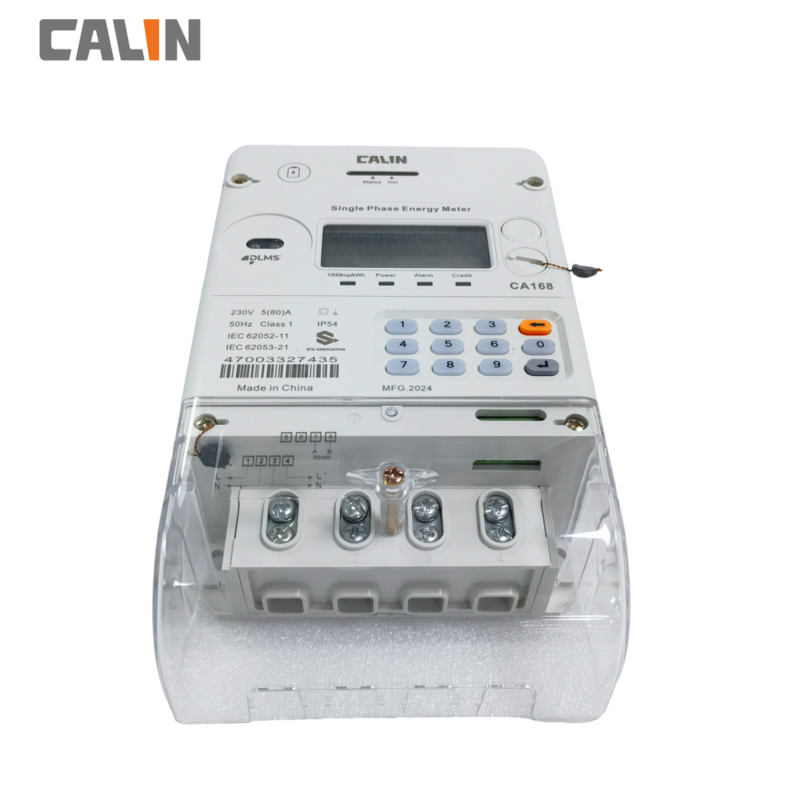

    Anti - Fraud Prepaid Power Meters 2 Wire Class Prepayment Electricity Meters





    The CA168-I is a standalone 2 wire one phase prepayment meter.The meter is built with multi sensors and triggers. including tamper shutdown protection ,disconnects on overload and no credit .



    The credit data is transferred to the meter via a 20-digit numeric token code that is generated by Standard Transfer Specification (STS) encryption protocol. The code is entered into the meter via a keypad.  It is finished in a compact and keypad-based BS8565 standard housing and maintains IP54 rating, providing a cost-effective solution of prepayment.



    The CA168-I allows for payment control settings. Landlords or service provider can input emergency credit, power limit, daily or monthly limitation, debt collection policy, etc via token code into the meter. Credit dispensing to service providers.and the meter will provide valuable information such as daily usage, monthly usage, demand record to consumers for  them to budget their electricity consumption.





    Features

    1) IEC62056-21 compliant optical communication port

    2) Bi-directional measurement for SRE

    3) Operates in prepayment and credit mode

    4) Prepayment and credit mode

    5) Latching relay trips on overload and no credit

    6) Adjustable power limit and low credit warning

    7) Tamper detection : terminal cover open, reverse connection, outage and etc.



    User Benefit

    a) Easy to install and ideal for new reticulation as well as retrofitting of credit meters with BS footprints

    b) Long life and durable

    c) Transparent terminal cover and MCB for extra protection

    d) Low cost and effective



    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II
