Three Phase Prepaid Electricity Meters , Plc Rf Commercial Electric Meter

Three Phase Prepaid Electricity Meters , Plc Rf Commercial Electric Meter

    • Three Phase Prepaid Electricity Meters , Plc Rf Commercial Electric Meter
  • Three Phase Prepaid Electricity Meters , Plc Rf Commercial Electric Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368-S

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Split Type 3 Phase Keypad Prepayment Meter Standard: SANS1524-1 , IEC62056-21 , IEC62053-21
    Dimensions: 272x127x77mm Weight: 2.5kg
    Display: 8 Digits' LCD Accuracy: Class 1s
    Communication: PLC RF LoRa Cable Diameter: 10mm
    High Light:

    prepayment electric meters

    ,

    prepaid power meters

    Three Phase Prepaid Electricity Meters , Plc Rf Commercial Electric Meter

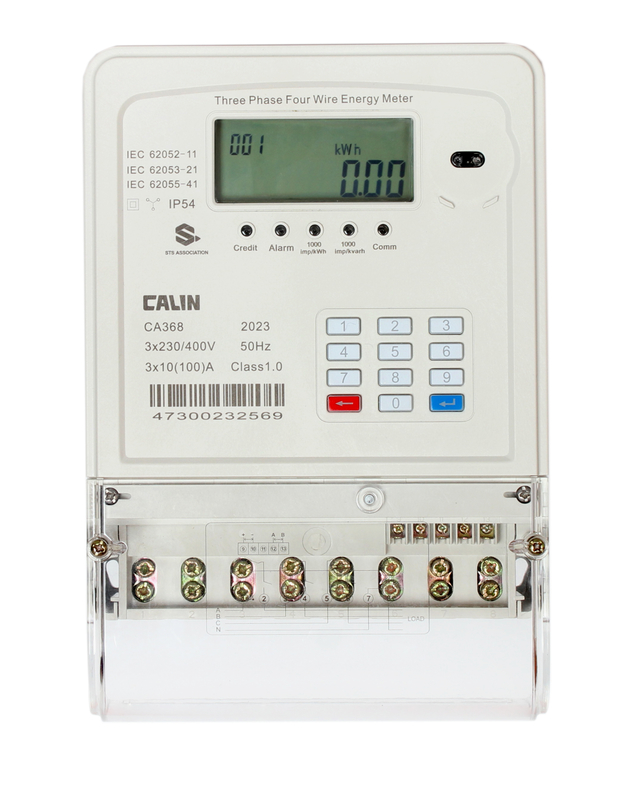

    A CA368 and a customer interface unit (CIU) together makes the CA368-S,  a four-wire, 100 Amp per phase,split type  keypad based prepayment meter. The meter is finished in a compact BS footprint enclosure. It is ideal for residential homes, commercial and light industrial applications.



    The CIU is installed within customer's premise and the main meter is usually locked away from consumers' premise in a kiosk, cabinet or meter box on the pavement or mounted on the pole. The main meter communicates with the CIU via Power Line Carrier, Radio Freqency, or LoRa, a low power consumption wireless technology. This non-wired split feature makes the meter immune to most tampers and facilitates quick and easy inspection by utility or service providers with no need to visit consumers.



    The CA368-S also communicates with a back-end central server through wireless communication forAMR AMI  functionalities. It is an ideal all-in-one revenue protection device for utility and service providers.



    Major Features

    a) 20 digit STS encryption

    b) Significant reverse energy (SRE) detection and measurement

    c) IEC62056-21 compliant optical & RS485 port

    d) Trips on overload and no credit

    e) Programmable load limit and low credit warning

    f) Tamper detection

    g) Easy access to 12 months historical consumption data and last 5 token entered

    h) Maximum demand measurement and load profiling record at preset intervals (optional)

    i) Operates in prepayment and credit mode

    j) Meter information accessible on Calin's short codes



    Utility Benefit

    a) Easy and quick to install with no need of extra communication devices

    b) Input payment control elements, such as emergency unit, tariff, free basic unit, repayment, fixed charge, VAT etc.

    c) 4 tariffs /8 time divisions /100 holidays usage recorded on TOU basis

    d) Flexible AMR AMI setup

    e) Interoperability and compatibility



    Specifications:





    Electrical parameters:

    Nominal voltage Un

    3x240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm
