1 Phase Single Phase Electricity Meter Two Way Communication Prepayment Meters

1 Phase Single Phase Electricity Meter Two Way Communication Prepayment Meters

    • 1 Phase Single Phase Electricity Meter Two Way Communication Prepayment Meters
  • 1 Phase Single Phase Electricity Meter Two Way Communication Prepayment Meters

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDSY168-G

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: GPRS 1 Phase STS Prepaid Meter Network: GSM EDGE EVDO GPRS
    Dimensions: 160x112x58mm Mounting: British Standard(BS) 5685
    Display: 6 Digits Backlit LCD With Icons Accuracy: Class 1s
    Payment Mode: Prepayment Credit Material: Polycarbonate Flame Retardant
    Modem: Build-in GPRS / Ethernet
    High Light:

    STS Prepayment meter

    ,

    sts meter

    1 Phase Single Phase Electricity Meter Two Way Communication Prepayment Meters



    The DDSY168-G is a new generation of STS prepayment meter that integrates STS encryption with latest GSM wireless technology, allowing it to be connected to AMR AMI back-end server systems. It offers flexible settings for both metering and payment and user-friendly interface to both the service provider and the end consumers.

    Free basic unit, emergency credit, low balance warning is programmable even after the commissioning. The landlords or service providers are allowed to make their own arrear management or debt collection settings into the meter. And consumers are able to check their meter reading as consumption and balance status from time to time via remote access.

    In whatever way as it is, the DDSY168-G is a superb electricity dispensing devices and revenue protection tools for both consumers and service providers. Thanks to its broad current range 5(80)Amp, and Un 60% to 130% voltage and a RF immunity withstand of 30Vm, the meter can be installed in very harsh environments.



    The meter communication are fully compliant with DLMS/COSEM, making it interoperable with third party applications running on the same protocol.



    Main Features

    1) Operates in prepayment mode and post payment mode

    2) IEC 62056-21 and DLMS/COSEM compliant two way communication

    3) Tamper protection: magnetic immunity, data storage in absence of power, cover open trip and alarm

    4) Multi-rate, tarrifs on TOU basis

    5) Programmable power limit and low credit warning

    6) LED consumption indicator

    7) 12-key audio feedback keypad



     Utility benefits

    a) Build-in contactor and GSM slot allows for local and remote load control features

    b) Build-in clock sychronize with the real-time of back-end server, providing tariff setting and contractual control features

    c) Automated meter reading and remote intrusive control over customers' load

    d) Quick and easy installation especially for retrofitting with no need for extra accessories





    Specifications:



    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

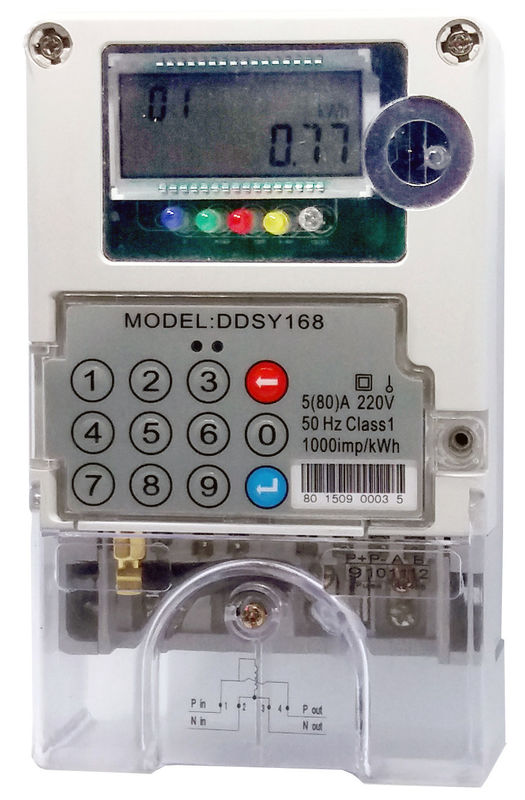

    1 Phase Single Phase Electricity Meter Two Way Communication Prepayment Meters 0

    1 Phase Single Phase Electricity Meter Two Way Communication Prepayment Meters 1
