| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA168 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 70,000pcs per month |
| Product Name: | Surge Safe Low Voltage1 Ph STS Prepaid Meter | Standard: | SANS1524-1 , IEC62053-21 |
|---|---|---|---|
| Dimensions: | 155x120x52mm | Weight: | 700 G |
| Display: | LCD | Accuracy: | Class 1s |
| Com Port: | IR , RS485 | Cable Size: | 8mm |
| High Light: | prepayment electric meters,prepaid power meters |
||
Extended terminal cover backplate, Prepaid Electricity Meters , Sts Digital Electric Meter voltage dip stable

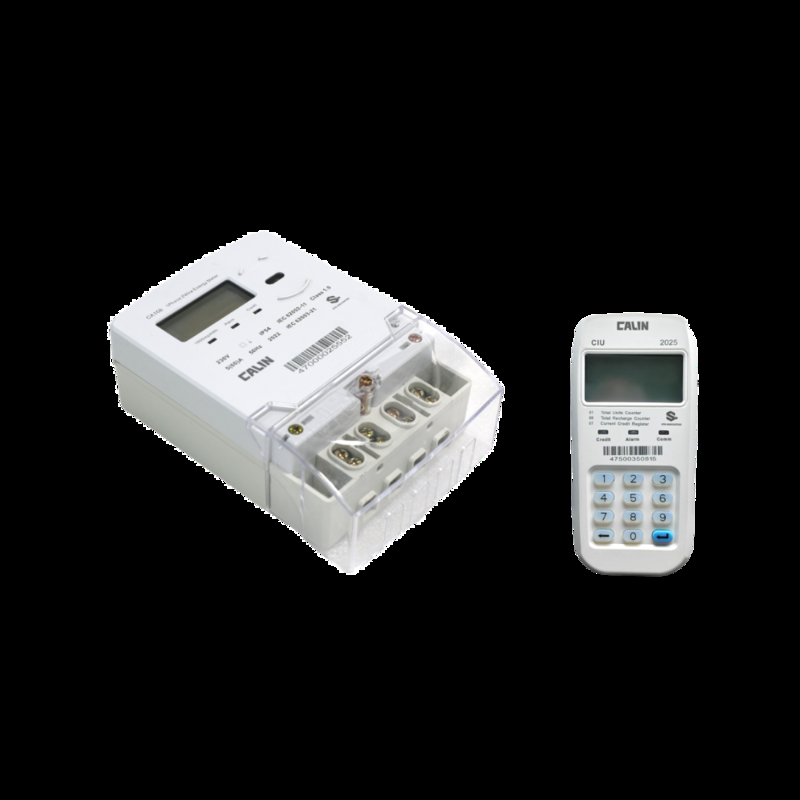

The CA168 is a one phase two wire prepaid electricity meter compliant with STS prepayment standard. It is finished in a compact, keypad-based BS5685 footprint housing with steel backplate. It maintains the rugged RF immunity withstand of 30V/m and IP54 rating, up to 13kV surge & lightnening protection, and down to 50V operatable voltage, allowing it to be installed in very harsh and voltage-dip or brownouts frequent environments, such as in Afrcia and Central America continents. The meter is used for residential, light commercial and industrial environments and is ideal for submetering and tenants applications.
The meter provides one-pack solution for kWh measurement and prepayment. Credit and all prepayment data is encrypted within a 20-digit numeric token that is generated using the Standard Transfer Specification (STS) encryption protocol. The token is input into the meter with a 4x3 three-color keypad. Information as V, A, PF, daily, monthly usage data, etc can be toggled by Calin's short codes. A utility or a service provider can make settings with the meter such as emergency unit, free basic unit, debt collection, billing cycles, power limit, low balance warning, etc.
Features
1) 20 digits STS compliant encryption
2) Reliable Surge & lightening protection
3) Operates under extrem low voltage
4) Detection and measurement of reverse energy( SRE )
5) Operate in prepayment and post-payment mode
6) Disconnects on overload and zero credit
7) Tamper proof
8) Reserved for wireless communication with a head-end (HES) AMR AMI server(optional)
Key benefits
a) Quick and easy to install for new reticulation and retrofittings
b) Multi-rate and usage record on Time of Use (TOU) basis
c) Flexible management settings
d) Upgradable and scalable to high end smart metering infrastructures
e) Reduce operational and inventory cost due to wide voltage range, surge protection and long service life design
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
