Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter

Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter

  • Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter
Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368-M
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Modular 3 Phase STS Prepaid Electric Meter Com Port: RS485, Optical Port
Weight: 2.5 Kg Display: 8 Digits' Backlit LCD
Terminal Cover: Extended Cover Bore Diameter: 10 Mm
High Light:

three phase energy meters

,

3 phase kwh meter

Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter

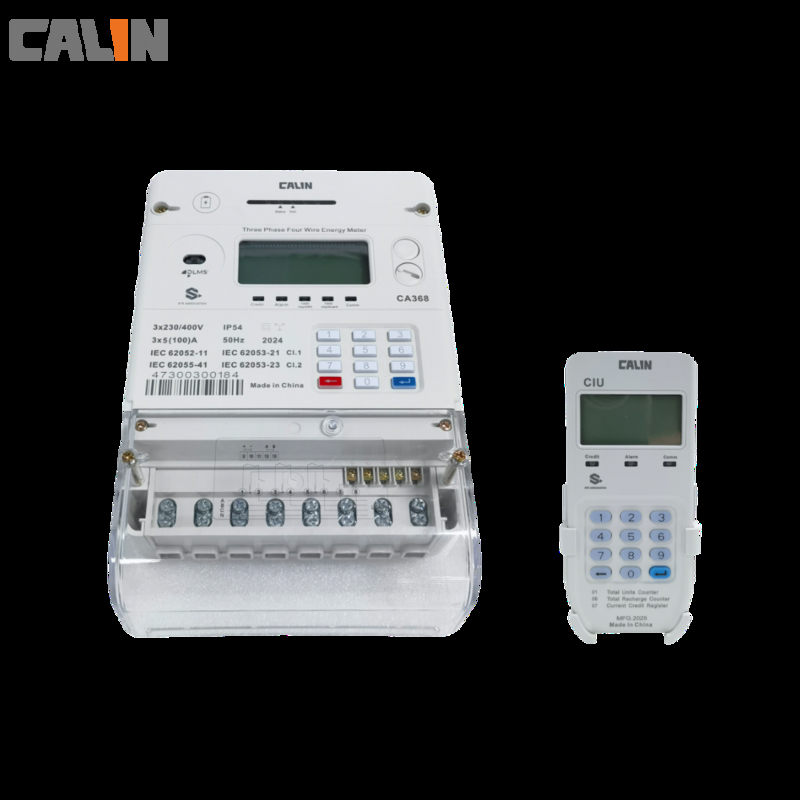

The CA368-M is a three phase four wire / three wire (on request) prepaid electric meter completed in a keypad based BS 5685 footprint closure. It combines high precision metrology with a diversity of wireless communication technology in a plug & play modular unit, allowing it to be extended for AMR AMI functionalities.  The meter is  mainly used for light commercial and inustrial environments.

The meter is compliant with Standard Transfer Specification (STS) standard and availble with DLMS/COSEM communication protocol, making it a fully compatible as well as interoperatable with same protocol devices and system softwares. The meter offers steady metrological measurement and real-time communication capabilities. A utility or a service provider can easily make payment control settings with the meter, such as emergency credit, free basic unit, debt collection rules, and etc.



Featured functions

■ 3 element 4 quadrant active and reactive energy measurement

■ Load profiling and Maximum demand recording (optional)

■Flexible selection of credit and prepayment mode

■ Tamper and fraud proof
■ Operates with loss of up to 2 phases
■ Wide operating range V-60%~ V+30%
■ Adjustable power limit
■Optical  and RS485 com port for alternative data interrogation



User benefits

1) Operates in severe environments with extreme durability

2) Reduce perational and maintenance cost

3) Multi-rate and usage register on TOU basis

4) Flexible setting for tariff plans, emergency unit, power limit, surchages, repayment,

5) Revenue protection is enhanced by tamper-proof features

6) Expandable to higher profile smart metering infrastructure

Specifications:



Electrical parameters

Nominal voltage Un

3x 220/230/ 240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

5A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm


Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter 0
Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter 1
