Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter

Ultrasonic Welded 3 Phase Electric Meter , 3 Element 4 Quadrant STS Prepayment Meter

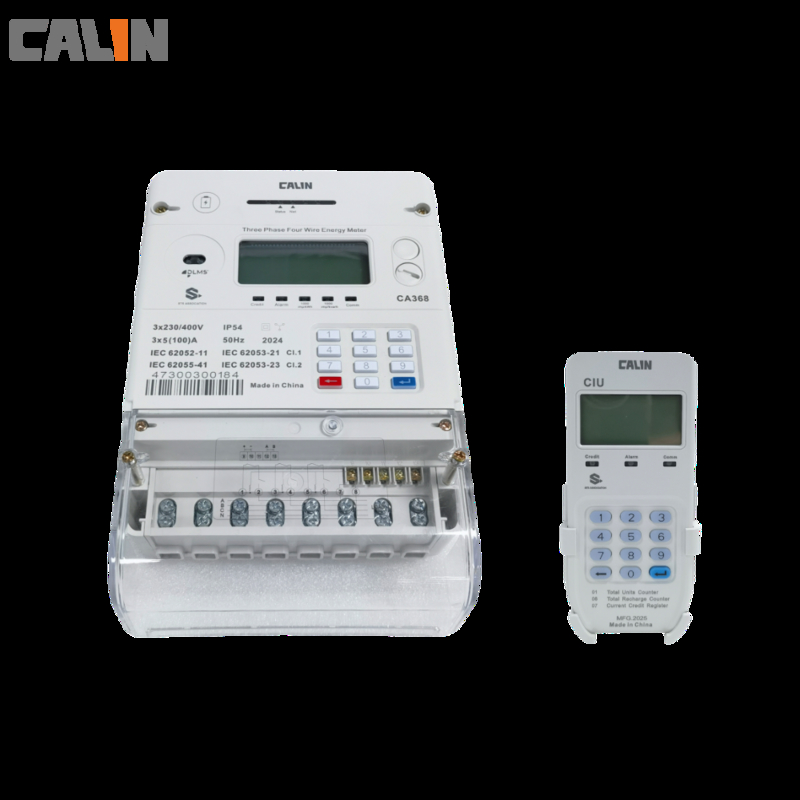

The CA368-M is a three phase four wire / three wire (on request) prepaid electric meter completed in a keypad based BS 5685 footprint closure. It combines high precision metrology with a diversity of wireless communication technology in a plug & play modular unit, allowing it to be extended for AMR AMI functionalities.  The meter is  mainly used for light commercial and inustrial environments.

The meter is compliant with Standard Transfer Specification (STS) standard and availble with DLMS/COSEM communication protocol, making it a fully compatible as well as interoperatable with same protocol devices and system softwares. The meter offers steady metrological measurement and real-time communication capabilities. A utility or a service provider can easily make payment control settings with the meter, such as emergency credit, free basic unit, debt collection rules, and etc.



Featured functions

■ 3 element 4 quadrant active and reactive energy measurement

■ Load profiling and Maximum demand recording (optional)

■Flexible selection of credit and prepayment mode

■ Tamper and fraud proof
■ Operates with loss of up to 2 phases
■ Wide operating range V-60%~ V+30%
■ Adjustable power limit
■Optical  and RS485 com port for alternative data interrogation



User benefits

1) Operates in severe environments with extreme durability

2) Reduce perational and maintenance cost

3) Multi-rate and usage register on TOU basis

4) Flexible setting for tariff plans, emergency unit, power limit, surchages, repayment,

5) Revenue protection is enhanced by tamper-proof features

6) Expandable to higher profile smart metering infrastructure

Specifications:
