20 Digits Token Three Phase Energy Meters Low Credit Warning Tamper Protection STS Smart Energy Meter

20 Digits Token Three Phase Energy Meters, Low Credit Warning Tamper Protection, smart energy meters,STS electric power meters,three-phase energy meter

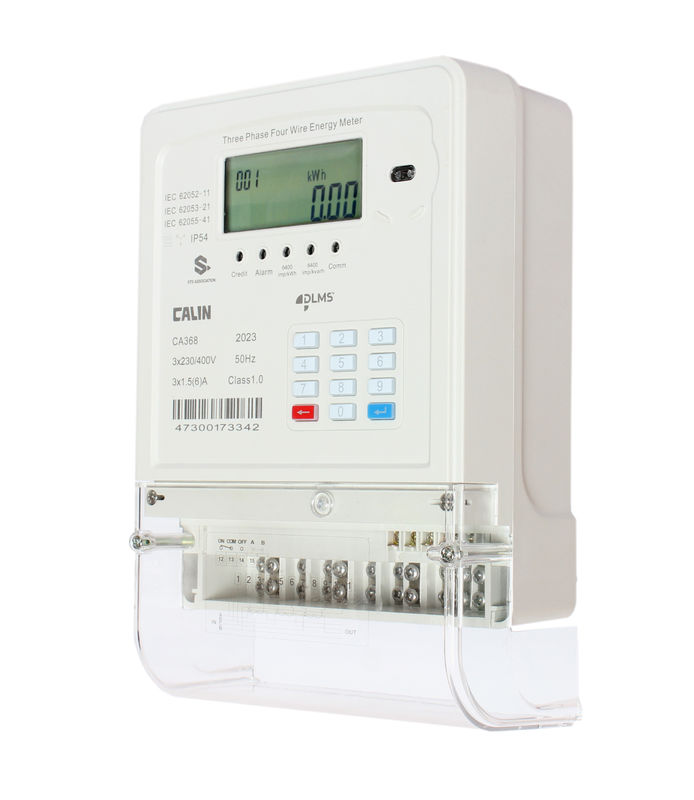

The CA368 is a cutting-edge three-phase four-wire prepaid electricity meter, distinguished by its compact design and user-friendly keypad interface. This meter operates on the STS (Standard Transfer Specification) token system, ensuring secure and reliable transactions. Housed in a robust BS enclosure with an extended transparent terminal cover, the CA368 boasts an IP54 protection rating, signifying its high resistance to dust and water ingress, thereby ensuring longevity and reliability in various conditions.
Manufactured in compliance with the stringent ISO9001 quality standards, the CA368 exhibits exceptional performance across a wide range of power supply variations, accommodating Un from -40% to +20%. Furthermore, its enhanced RF immunity can withstand electromagnetic interference up to 30V/m, making it exceptionally well-suited for operation in even the most challenging and harsh environmental conditions.
The CA368 is particularly ideal for situations where accommodation is separated, such as in flats, apartments, houses, and offices, where a single power supply is distributed. Traditionally, it can be quite costly to engage utility companies to install additional power supplies. However, Tiger Meters presents a cost-effective solution with the CA368, allowing users to maintain control over their electricity usage without incurring substantial additional expenses. This STS prepaid meter empowers users to monitor and manage their power consumption efficiently, leading to more mindful energy use and potential cost savings.
As a smart electric meter and smart energy meter, the CA368 offers advanced functionalities such as real-time monitoring, two-way communication, and remote connectivity, enabling users to make informed decisions about their energy consumption and manage their electricity usage more effectively.

Main Features

• 20 digits Token code topup
• Up to 13kV/6.5kA surge protection for lightening and other line surges
• IR optical & RS485 port allowing for easy data interrogation
• Shut off when credit finishes
• Programmable power limit and low credit warning
• Tamper detection and event record such as opening cover, reverse connection, black-out
• Dual power source working on both prepayment and credit mode
• Maximum demand measurement and load profiling (on request)


User Benefit

• Easy to install for both new reticulation and retrofitting due to BS mounting
• Low operational and inventory cost
• Can be ordered with PLC/ RF/ GPRS/GSM communication for AMR/AM I features
• Meter provides various valuable information by punching in Calin's short codes
• instant investment back, debt collection

Specifications:
