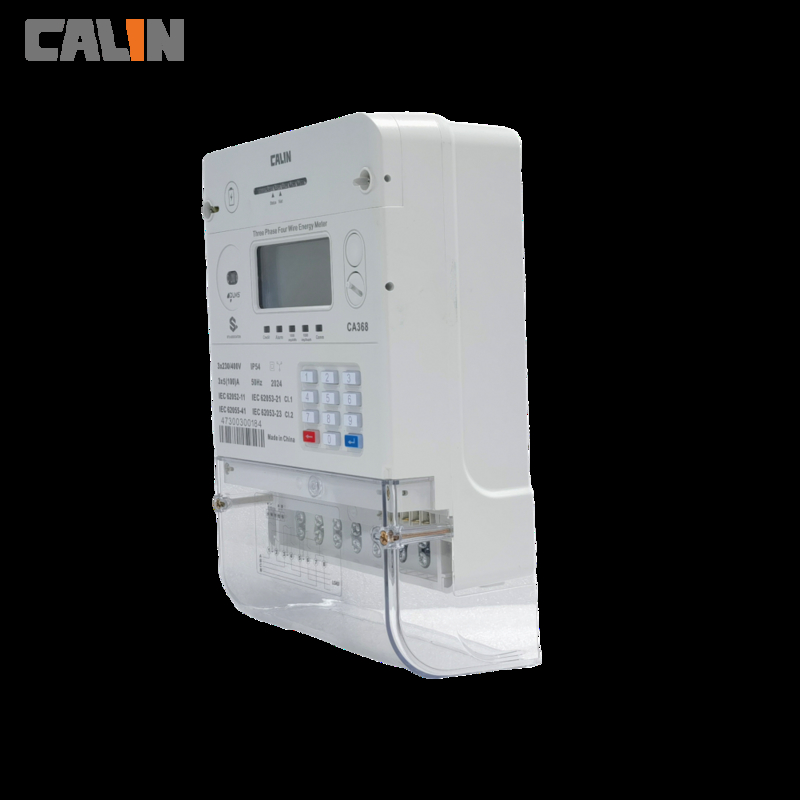

4 Programmed Channel 3 Phase Electric Meter / Prepaid Industrial Power Meter

4 Programmed Channel 3 Phase Electric Meter / Prepaid Industrial Power Meter

  • 4 Programmed Channel 3 Phase Electric Meter / Prepaid Industrial Power Meter
4 Programmed Channel 3 Phase Electric Meter / Prepaid Industrial Power Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368-DC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: DLMS Multi-function Three Phase Electric Meter Connection: Direct And CT/VT Transformer Connection
Com Port: RS485, Infrared Optical Port Weight: 2.5 Kg
Display: 8 Digits' Backlit LCD Accuracy: Class 1s 2s
Bore: 10 Mm
High Light:

three phase energy meters

,

three phase kilowatt hour meter

,

Programmed Channel Electric Meter

4 Programmed Channel 3 Phase Electric Meter / Prepaid Industrial Power Meter

With reputation of quality and innovation, the CA368-DC is built up on the basis of classic CA368-M three phase foure wire multi-functional electric meter with extended functionalities for two-way communication high-end automated smart metering. It is an anti-tamper  multi-rate  meter finished in a compact BS 5685 footprint housing. The meter is mainly applied for light commercial and inustrial environments, aiming to optimize the buisness renvenue collection process.  With the CA368-DC service providers and utilities can manage their tenants power usage and entire grid health in a more effecient and cost-saving way.

The CA368-DC supports unidirectional measurement of both active and reactive energy and provides  four tariffs and 108 holiday settings. The meter works in both four-wire pattern and three-wire partterns. The meter is produced by IEC 62053, EN 50670 (MID) in its mechanical spec , and ISO9001 standards with rugged RF immunity withstand of 30Vm, allowing it to operate in very harsh environmens.


The wireless communication feature such as PLC, RF, M-bus, GPRS/ GSM, 4G Lte is the CA368-DC 's added value to service providers. This features offers a utility free choices of communication networks according to local infrastructure, allowing the meter to be connected with a back-end central server for AMR AMI functions.


Featured functions

■ Adjustable  power limit  for load contol purpose
■ Multi-rate with Time of Use tariff allows for flexible contractual control
■ Terminal block is available for both whole current and CT/VT connection
■ LED consumption indicator
■ 4 programmed channels measurement for V, A, P, PF, MD
■Optical infrared and RS485 com port  for data exchange



User benefits

1) Cost saving and low inventory

2) Scalable setup for starters

3) Low operational and maintenance cost

4) „„Easy to install and deploy

5) Fraud detection and alarm for tamper detected

Specifications:



Electrical parameters

Nominal voltage Un

3x 220/230/ 240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

5A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm
