Class 1S Accuracy Din Rail Power Meter RTU Protocol 3 Phase Power Meter

Class 1S Accuracy Din Rail Power Meter RTU Protocol 3 Phase Power Meter

  • Class 1S Accuracy Din Rail Power Meter RTU Protocol 3 Phase Power Meter
Class 1S Accuracy Din Rail Power Meter RTU Protocol 3 Phase Power Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: DTS368-D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 3 Phase Din Rail Electric Meter Mounting: 35mm Din Rail
Dimensions: 125mm X 88mm X 73mm Measring Range: 5(100)A For Direction Connection 1.5(6)A For CT Operated
Constant: 200 Imp/kWh Accuracy: Class 1s
Standard: IEC62053-21,IEC62052-11
High Light:

three phase energy meters

,

three phase kilowatt hour meter

Class 1S Accuracy Din Rail Power Meter RTU Protocol 3 Phase Power Meter

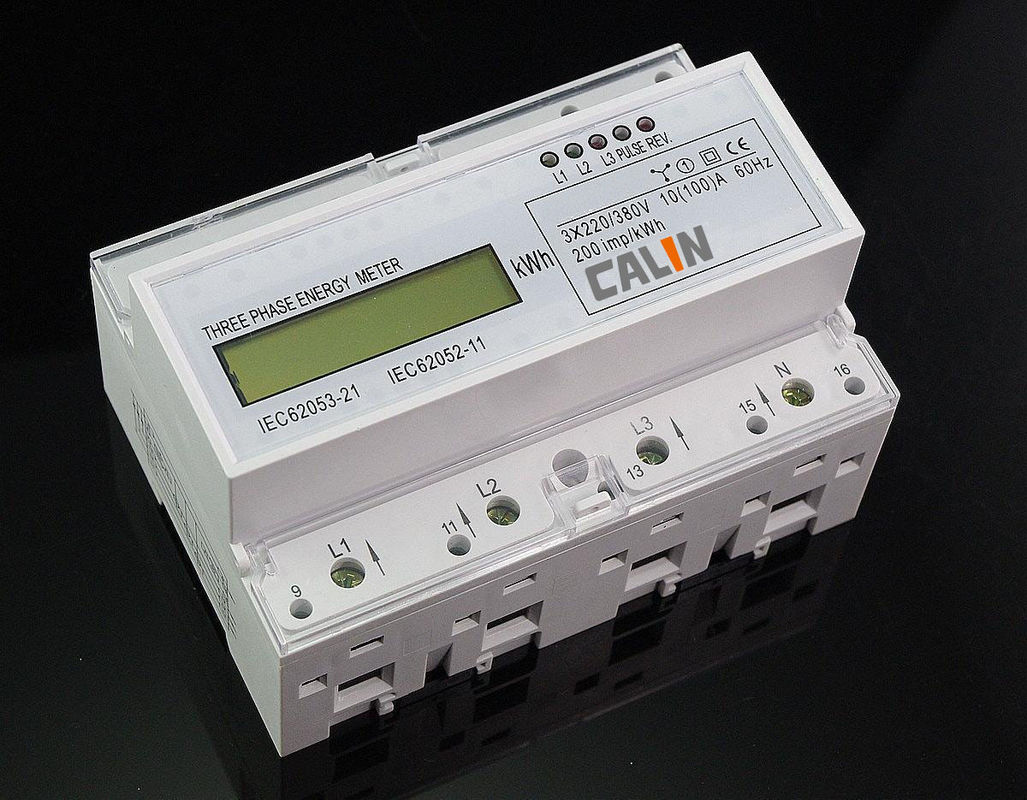

The DTS368-D is a three-phase electronic type watt-hour meter adopts the advanced SMT process and solid-state integrated circuit technology of ultra-low power consumption, it is used to measure the active electric energy of single-phase AC 50Hz, all technical indexes are in conformity with GB/T17215.321-2008 Electricity metering equipment (a.c.) – Particular requirements - Part 21: Static meters for active energy (classes 1 and 2) on single-phase static watt-hour meter.

Main feaures


1) Bi-directional measurement of active power

2) Power line carrier communication

3) Build-in latching relay

4) Communication distance:500m

5) Remote power on/off control through PLC

6) Display : register, LCD.

7) RS485 interface.






Specifications:





CT connected meter

Voltage(v)

3×230/400V

Operational voltage

±70%Un

Current(A)

- Iref

1.5A

-Itr

0.15A

-Imax

6A

-Imin

0.075A

-Ist

3mA

Power consumption of current circuits(VA)

< 0.01

Power consumption of voltage circuits(W)

< 1.3W

General data

Frequency (Hz)

50

Memory back-up

EEprom

Environment resistance to heat and fire

Terminal 960°C
Cover 650°C

upper

ABS+PC

lower

ABS+PC

Pulse output



Pulse width(ms)

80

Pulse constant(imp/kWh)

6400

LED constant

6400

Width (mm)

126

Height (mm)

104.5

Depth (mm)

60

Class 1S Accuracy Din Rail Power Meter RTU Protocol 3 Phase Power Meter 0Class 1S Accuracy Din Rail Power Meter RTU Protocol 3 Phase Power Meter 1
