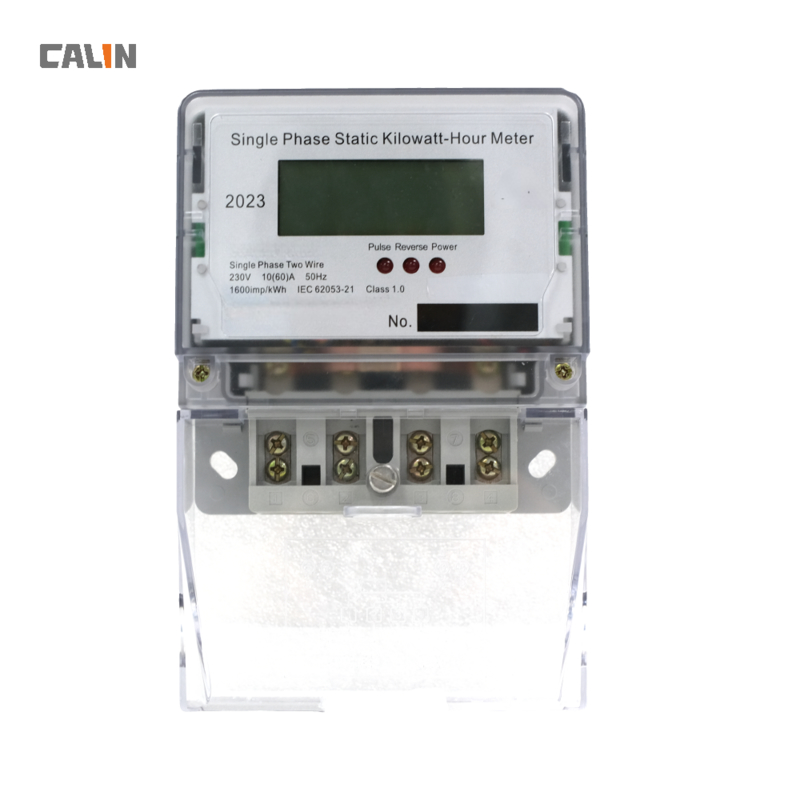

Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter

Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter

  • Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter
  • Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter
Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 100,000pcs per month
Contact Now
Detailed Product Description
Product Name: Single Phase Two Wire Electronic Active Watt Hour Meter Material: Transparent ABS Or Poly-carbonate
Dimensions: 135x90x33mm Weight: 250 G
Constant: 1600 Imp/kWh Accuracy: Class 1s IEC62053-21
Terminal Cover: Extended Long Transparent Cover Display: Mechanical Register
High Light:

single phase power meter

,

single phase electronic meter

Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter



The meter is used to measure 50Hz or 60Hz active energy consumption from single phase two wire AC electricity network. It adopts LSI (Large-scale Integration) and SMTmanufacturing technique,the key components all are designed long life type.
The meter has the features of good reliability, small volume, light weight, specious appearance, etc..
The DDS168 is ideal for an economy class of metering application for small homes, offices, and stores.



FUNCTIONS AND FEATURES:



1) Front board three fixed installation, ABS or transparent ABS or PC material cover

2) Anti-flaming material and bakelite terminal, moisture-resistant,fire-retardant,high temperature molded

3) 6+1digits register display

4) Standard configuration one port of pulse output passive (polarity),complying with standard IEC62053-21

5) Compliant with standard IEC62053-21,IEC62052-11

6) Adopts high reliable and long-life electric components,hioverload, calibration free

7) Direct connect operation,there are two types wiring you may select.

8) Quick and easy to install due to short terminal cover





Specifications:





Accuracy class

Class 1.0,

Rated voltage(V)

110/210V  or 120/220V

Rated current(A)

 5-100A

Operation voltage range

Un±20%

Starting current

0.4%Ib

Rated frequency

60Hz

Internal power consumption

Voltage circuit ≤1.0W 5VA; Current circuit ≤1VA(Ib)

Max.operation temperature

-30°C ~ +70°C

Max.storage temperature

-30°C ~ +75°C

Relative Humidity

≤85%

Service life

More than 10 years



Compact Mini Single Phase Electric Meter Extended Terminal Cover Killowatt Meter 0
