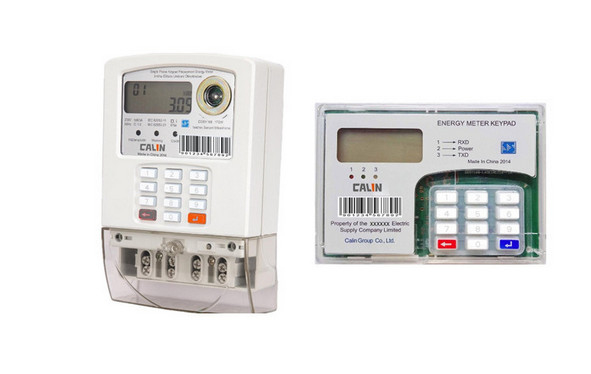

Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter

Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter

  • Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter
Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Time Of Use (TOU) Multi-tariff Single Phase STS Prepaid Electricity Meter Weight: 700 G
Type: Prepaid Electricity Meter Accuracy: Class 1
Mounting: BS5685 Footprint Communication: PLC / RF
High Light:

PLC Single Phase Kwh Meter

,

GPRS Single Phase Kwh Meter

,

PLC Prepaid Electricity Meter

Multi Tariff Single Phase Kwh Meter Prepaid Electricity Meter Class 1 Accuracy

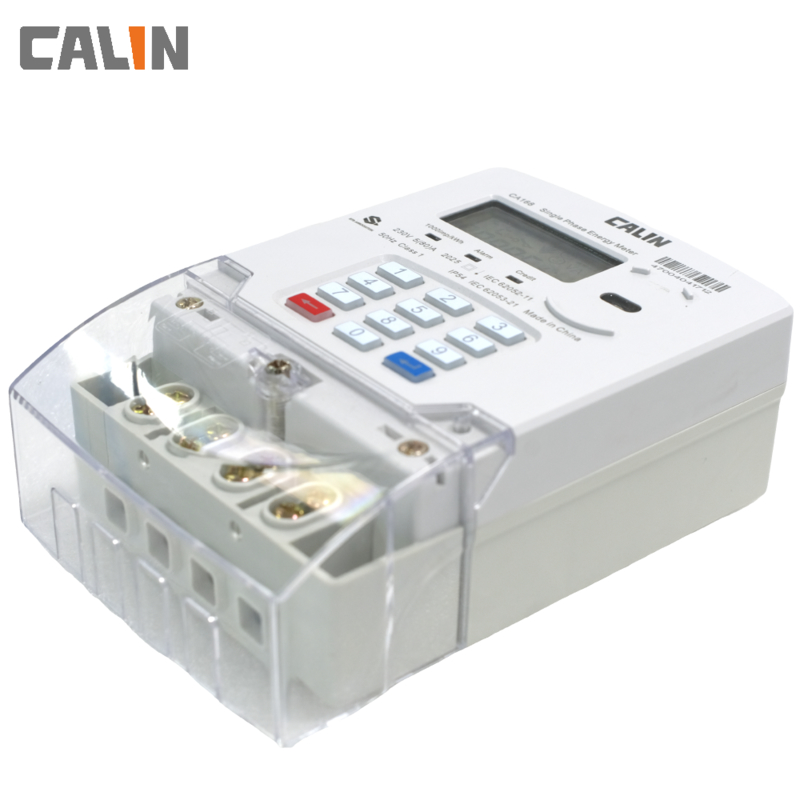

The CA168 is used for a wide range of applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features. It is a compact and keypad-based design in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.

.





Major Features

  1. Load control, over-load switching automatically
  2. Programmable under and over voltage trip
  3. Significant reverse energy measurement SRE
  4. Enhanced tamper detection
  5. Multi-Level alarm value enable setup
  6. Preset delayed reconnection
  7. IP 54 rating



 Utility benefits

  1. PLC/ RF / GPRS communication for AMR AMI features (On request)
  2. Time of Use (TOU) , multi-rate, holiday setting
  3. Easy and quick to install with exisiting wires
  4. 15 year designed life
  5. Enhanced revenue protection through flexible payment control





Specifications:



Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II











Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter 0Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter 1Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter 2Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter 3Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter 4Multi Tariff PLC Single Phase Kwh Meter Prepaid Electricity Meter 5



Application Of Single Phase Electric Meter
1. Measure, monitoring power distribution system parameters.

2. Collect energy consumption data that cost center analysis needs.

3. Limit monitor alarm(such as over voltage, power consumption).

4. Power quality analysis.

5. Green building or DC



Advantage Of Single Phase Electric Meter

1) Easy to deploy and maintenance

2) Increased tamper protection

3) Low operational cost

4) Optical port offers simple interrogation

5) Broad range of engineering settings

6) 15 year designed lifespan
