Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Keywords: Single Phase Electric Meter Product Name: Single Phase LORAWAN Meter
Latch Relay: Build-in Dimensions: 155x120x52mm
Weight: 700 G Consumption Rate: 1000 Imp/kWh
Data Port: Infrared Optical Communication: RF
High Light:

LORAWAN Prepaid Kwh Meter

,

SABS Prepaid Kwh Meter

,

LORAWAN Single Phase Kwh Meter

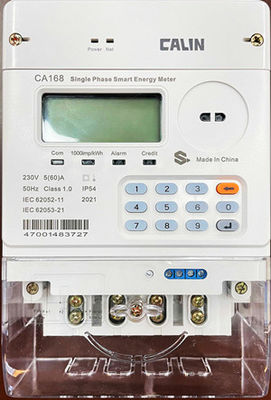

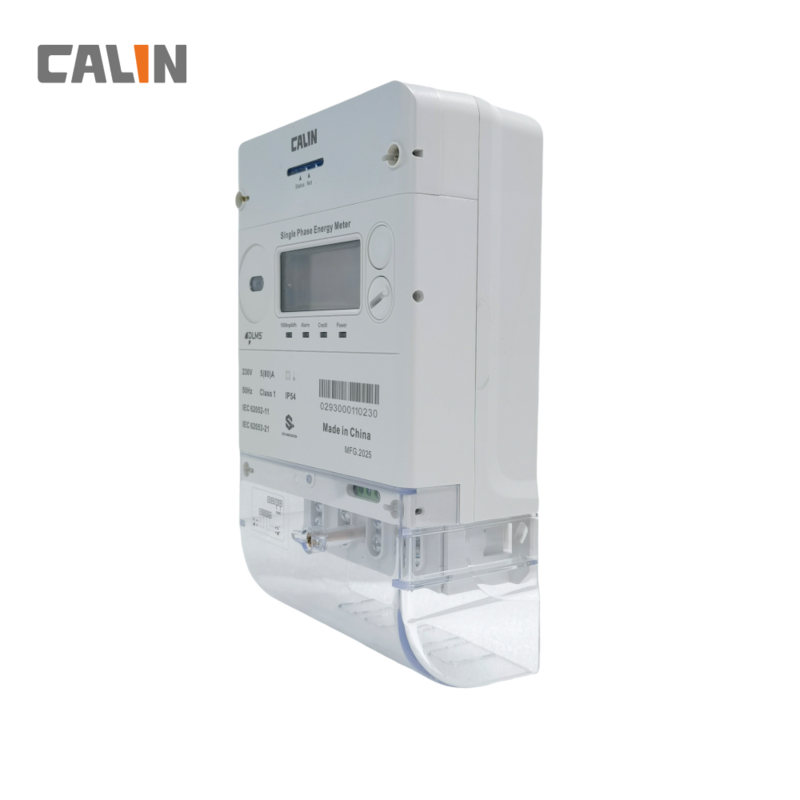

Wireless Single Phase LORAWAN Prepaid Kwh Meter With Vending System



Smart Single Phase Prepaid Kwh Meter wireless communication with vending system easy battery replacement



Photovoltaic (PV) power generation is growing fastly in the South Asia and Africa, As mini grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is special designed for PV solar generation mini grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built in a LORAWAN module in the meter so that the monitoring and management system can be developed, the meter send the data to the server by LORAWAN.

Single Phase Electric Meter Wireless Single Phase LORAWAN Prepaid Kwh Meter With Vending System 0



Single Phase Electric Meter Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption

  2. Detection of significant reverse energy (SRE)

  3. LORAWAN certificate

  4. IEC62056-21 compliant port allowing for easy data interrogation

  5. Disconnects on overload and no credit

  6. Dual power source working on both prepaid and credit mode

  7. Programmable load limit and low credit warning

  8. Detection and record tamper event such as cover open, reversal, black-out, etc.

  9. Easy access to 12 months historical consumption data and last 5 token entered



 Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications

  2. LORAWAN wireless communication with a head-end AMR/AMI server

  3. Time of Use (TOU), multi-tariff, holiday setting.

  4. Advanced load control and disconnection features





Single Phase Electric Meter Specifications:



Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II



 Single Phase Electric Meter Wireless Single Phase LORAWAN Prepaid Kwh Meter With Vending System 1Single Phase Electric Meter Wireless Single Phase LORAWAN Prepaid Kwh Meter With Vending System 2





Single Phase Electric Meter Wireless Single Phase LORAWAN Prepaid Kwh Meter With Vending System 3

Single Phase Electric Meter FAQ

1. What can you supply?
A: We can supply custom Prepaid Electricity Meters, STS Prepaid Meters, Single Phase Electric Meter and so on, all kinds of Electric Meter.



2. Are OEM and ODM available?

* Yes, they are. As a professional Electricity Meters manufacturer, we offer OEM and ODM service.



  1. Q: What are your main products?
    A:Our main products are Electricity Meters.



4. How about your product warranty?

* We offer one-year warranty upon delivery.



5. How about the aftersales support?

* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
