LCD Display Single Phase Electric Meter , Tamper Proof Prepaid Power Meters

LCD Display Single Phase Electric Meter , Tamper Proof Prepaid Power Meters

    • LCD Display Single Phase Electric Meter , Tamper Proof  Prepaid Power Meters
    • LCD Display Single Phase Electric Meter , Tamper Proof  Prepaid Power Meters
  • LCD Display Single Phase Electric Meter , Tamper Proof  Prepaid Power Meters

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDS168-L

    Payment & Shipping Terms:

    Minimum Order Quantity: 200pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 100,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Mini Single Phase Electronic Active Watt Hour Meter Material: Transparent ABS Or Poly-carbonate
    Dimensions: 165x90x33mm Weight: 250 G
    Constant: 1600 Imp/kWh Accuracy: Class 1s IEC62053-21
    Terminal Cover: Extended Long Transparent Cover Display: 6+1 Digits' LCD
    High Light:

    single phase power meter

    ,

    single phase electronic meter

    LCD Display Single Phase Electric Meter , Tamper Proof  Prepaid Power Meters

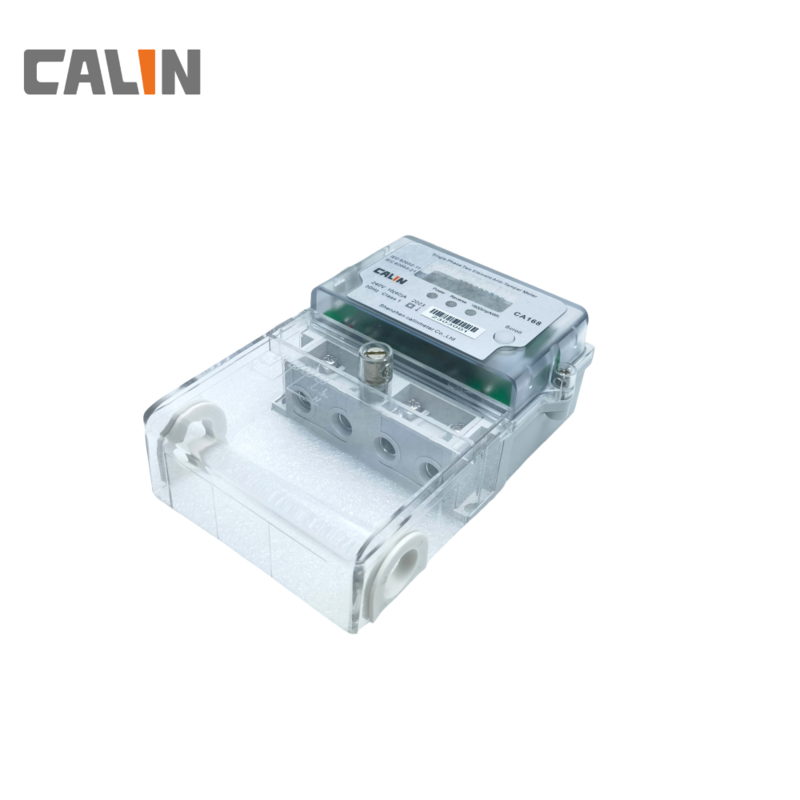

    DDS168-L is the smallest and compact solution you can ever get. It integrateds with all metrological instrumentation characters within one mini poly-carbonate flame retardant closure and offers active energy measurement. It can be added with further smart metering features such as load profile, maximum demand, bi-directional measurement, tamper sensor, etc.



    Main Features

    1) LED consumption indicator at 1600 imp / kWh

    2) Extended transparent terminal cover

    3) Register total usage active power

    4) 7 digits' LCD display

    5) Tamper proof

    6) Optical port for alternative data reading

    User Benefit

    a) Mini, low cost, easy to install and maintenance

    b) Can be ordered with extended smart metering features

    c) Low inventory cost

    d) High accuracy as Class 1 by IEC standards

    e) Reliable with long life





    Specifications:



    Accuracy class

    Class 1.0,

    Rated voltage(V)

    110/210V  or 120/220V

    Rated current(A)

     5-100A

    Operation voltage range

    Un±20%

    Starting current

    0.4%Ib

    Rated frequency

    60Hz

    Internal power consumption

    Voltage circuit ≤1.0W 5VA; Current circuit ≤1VA(Ib)

    Max.operation temperature

    -30°C ~ +70°C

    Max.storage temperature

    -30°C ~ +75°C

    Relative Humidity

    ≤85%

    Service life

    More than 10 years



    LCD Display Single Phase Electric Meter , Tamper Proof  Prepaid Power Meters 0
