Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month

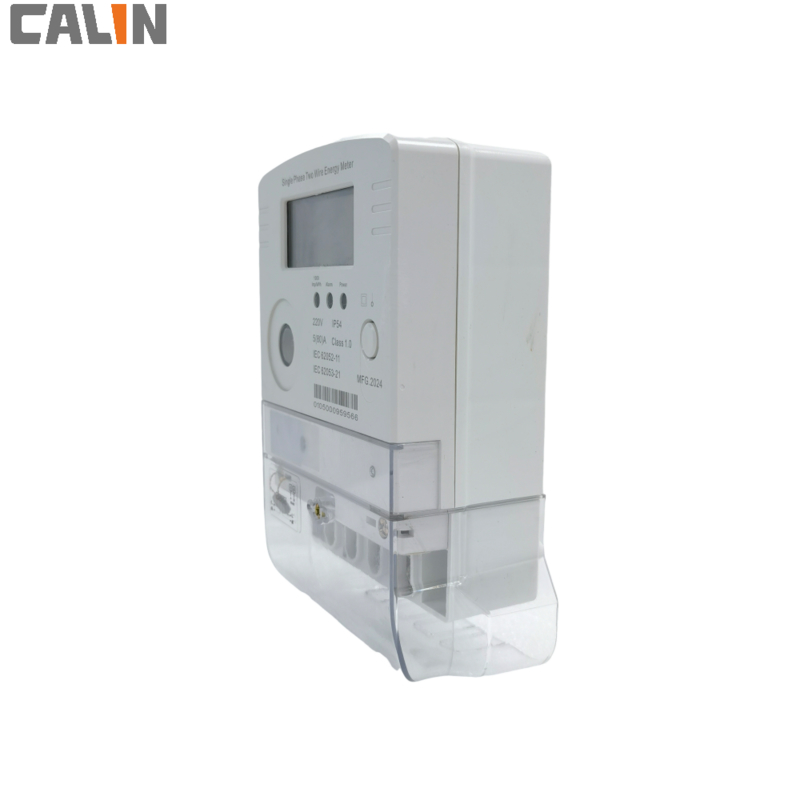

Product Name: |
Time Of Use (TOU) Multi-tariff Single Phase STS Prepaid Electricity Meter |
Split Keypad: |
Optional |
Dimensions: |
155x120x52mm |
Weight: |
700 G |
Type: |
Prepaid Electricity Meter |
Accuracy: |
Class 1 |
Mounting: |
BS5685 Footprint |
Communication: |
PLC / RF |
Product Name: |
Time Of Use (TOU) Multi-tariff Single Phase STS Prepaid Electricity Meter |
Split Keypad: |
Optional |
Dimensions: |
155x120x52mm |
Weight: |
700 G |
Type: |
Prepaid Electricity Meter |
Accuracy: |
Class 1 |
Mounting: |
BS5685 Footprint |
Communication: |
PLC / RF |
The CA168 is used for a wide range of applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features. It is a compact and keypad-based design in a BS8565 standard housing and maintains the rugged RF immunity with stand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.
.
Major Features
Utility benefits
Specifications:
|
Nominal voltage Un |
220/230/240 V |
|
Limited voltage |
70%~120%Un |
|
Nominal frequency fn |
50-60Hz+5% |
|
Basic current(Ib) |
5-10A |
|
Maximum current(Imax) |
60-100A |
|
Starting current(Ist) |
20mA |
|
Active energy constant |
1000imp/kWh |
|
Accuracy as Active energy to IEC62053‐21 |
Class1.0 |
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Operating temperature |
25℃ to+70℃ |
|
Storage temperature |
40℃ to+85℃ |
|
Insulation level |
4kV rms for 1min |
|
Impulse voltage withstand |
8kV, 1.2/50 μs |
|
Air discharge |
16kV |
|
Immunity to HF fields |
|
|
80MHz to 2GHz with load |
10V/m |
|
100kHz to 1GHz without load |
30V/m |
|
Fast transient burst test |
4kV |
|
Meter shell Protection Rate |
IP54(IEC60529) |
|
Insulation System Classification |
Protective Class II |
