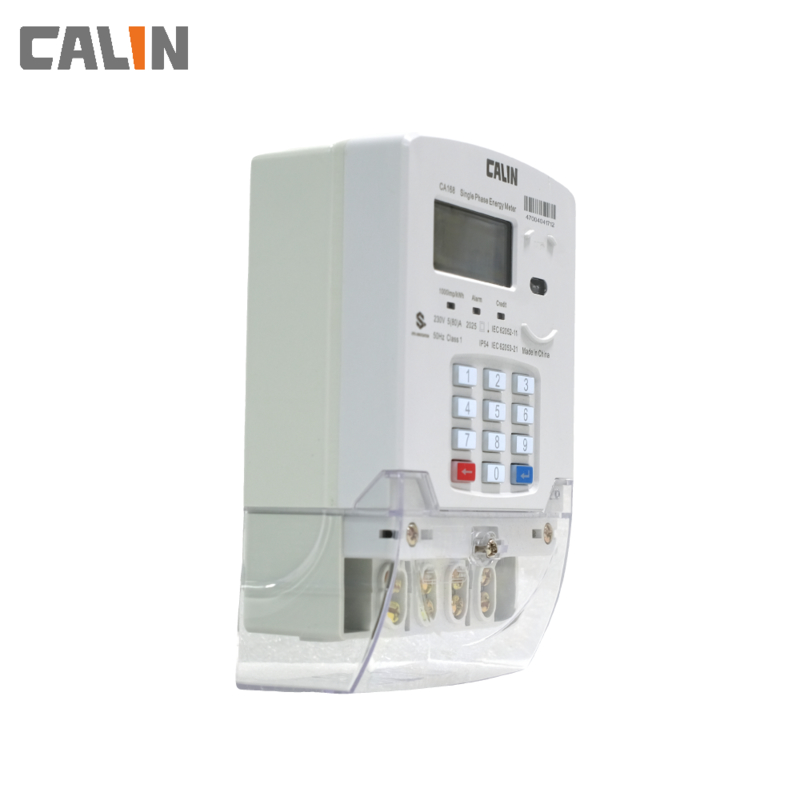

STS Single Phase Electricity Meter With PLC / RF Communication

STS Single Phase Electricity Meter With PLC / RF Communication

  • STS Single Phase Electricity Meter With PLC / RF Communication
STS Single Phase Electricity Meter With PLC / RF Communication
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Single Phase Electric Prepaid Meter Latch Relay: Build-in
Dimensions: 155x120x52mm Weight: 700 G
Data Port: Infrared Optical Split Keypad: Optional
Communication: PLC / RF
High Light:

STS Single Phase Electricity Meter


PLC Single Phase Electricity Meter


PLC single phase electric meter

STS Single Phase Power Meter Prepayment Keypad Electricity Meter With PLC / RF Communication

The CA168 is used for a wide range of applications, due to an improved dynamic range allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended functional features. It is a compact and keypad-based design in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to be installed in harsh environments.



Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption
  2. Detection of significant reverse energy (SRE)
  3. IEC62056-21 compliant port allowing for easy data interrogation
  4. Disconnects on overload and no credit
  5. Dual power source working on both prepaid and credit mode


 Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications
  2. PLC/ RF / GPRS wireless communication with a head-end AMR/AMI server
  3. Time of Use (TOU), multi-tariff, holiday setting.
  4. Advanced load control and disconnection features





Nominal voltage Un

220/230/240 V

Limited voltage


Nominal frequency fn


Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant


Accuracy as Active energy to IEC62053‐21


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge


Immunity to HF fields


80MHz to 2GHz with load


100kHz to 1GHz without load


Fast transient burst test


Meter shell Protection Rate


Insulation System Classification

 Protective Class II


 STS Single Phase Electricity Meter With PLC / RF Communication 0STS Single Phase Electricity Meter With PLC / RF Communication 1STS Single Phase Electricity Meter With PLC / RF Communication 2STS Single Phase Electricity Meter With PLC / RF Communication 3



1. What can you supply?
A: We can supply custom Prepaid Electricity Meters, STS Prepaid Meters, Single Phase Electric Meter and so on, all kinds of Electric Meter.


2. Are OEM and ODM available?

* Yes, they are. As a professional Electricity Meters manufacturer, we offer OEM and ODM service.


3. Q: What are your main products?
A:Our main products are Electricity Meters.


4. How about your product warranty?

* We offer one-year warranty upon delivery.


5. How about the aftersales support?

* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
