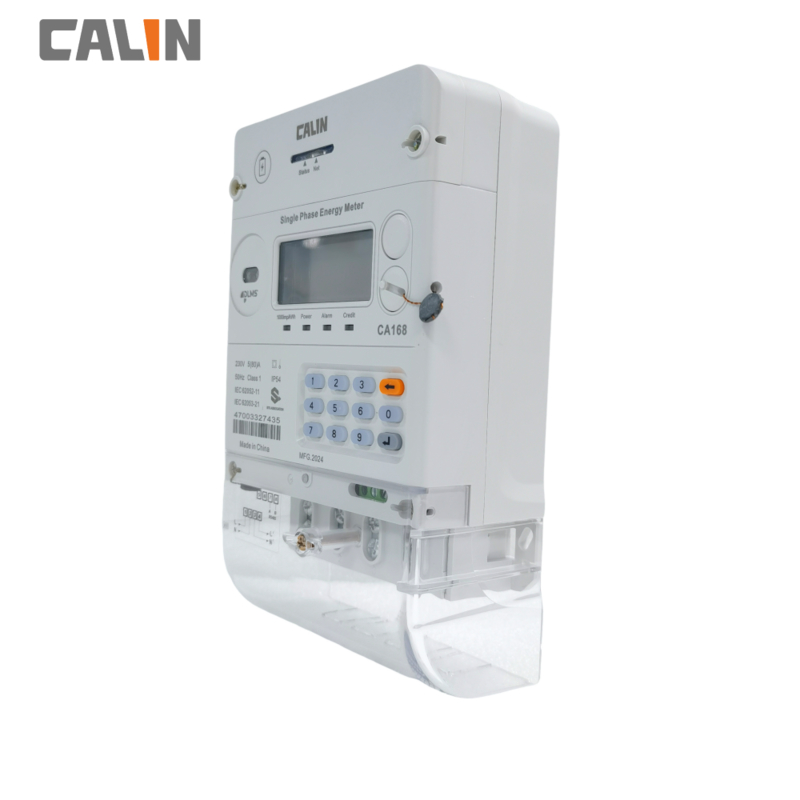

Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter

Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter

    • Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter
    • Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter
  • Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDSY168-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1 Phase Card Type Prepayment Electric Meter Application: Local Prepayment / AMR AMI
    Dimensions: 160x112x58mm Com Port: IR Optical , RS485
    Display: 7 Digits' Backlit LCD Accuracy: Class 1s
    Encryption: 3DES STS Material: Uv Stable Polycarbonate
    High Light:

    single phase kwh meter

    ,

    single phase electronic meter

    Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter



    The CA168-C is used for residential, light commercial and industrial environments of prepayment metering applications. It is a single phase two wire meter desgined in a compact BS footprint mounting case, perfect for retrofitting installations using exisiting wires. The meter is built with a surge varisotr for lightening protection up to 13 kV and an SMPS for low voltage operation down to 80V and below, making it uniquely catering to unstable grid areas such as Africa and Central or South America continents. Its wide range of current allowance 5(80) Amp and 30Vm withstand of RF immunity makes it operatable in very severe environments.



    The CA168-C combines 3DES with STS encryption standard, using a token card to transfer payment and customer information between the head-end system (HES) and the meter. A consumer will top up his electricity meter by visiting closest point of sale kiosk with the card and make payment with the vendor. And the vendor will write all the payment info into the card for the consumer to insert it back into the meter to complete top up. Each card is unique to a meter in the system and serves as a customer card at the same time. This card prepayment feature provides the utility and service a transparent and effecient mode of prepayment management. Payment control parameters such as power limitation, emergency credit, repayment policy, tariff plans can be set into the meter via card contact, offering the utility or service providers flexible contratual control.



    The high profile of CA168-C is available with the option for modular communication unit providing wireless communication such as Power Line Carrier (PLC) Radio Frequency (RF) and GSM/ GPRS on customers request. With this wireless feature, the meter can be utilized for AMR AMI functions as in communication and interaction with a head-end server (HES) for  automatic meter readout, remote disconnection and reconnection, tariff setting and upgrade, etc.





    Featured Functions

    a) Surge protection and operation at low voltage

    b) Uni-directional measurement of significant reverse energy (SRE)

    c) Trips on overload and zero credit

    d) Programmable power limit and low credit warning

    e) 1 element 4 quadrant active reactive energy measurement (optional)

    f) Fraud detection.

    g) Wireless communication with HES for AMR AMI features (optional)



     Key benefits

    a) Compact and easy to install

    b) Ideal for retrofitting due to BS footprint mounting

    c) Complete revenue protection and anti-tamper feature settings

    d) Time of Use (TOU) , multi-rate, holiday setting

    e) Flexible consumer's contract to budget usage limit

    f) Low operational and maintenance cost





    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II



    Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter 0Card Prepayment Single Phase Electric Meter , Surge Protection Wireless Power Meter 1
