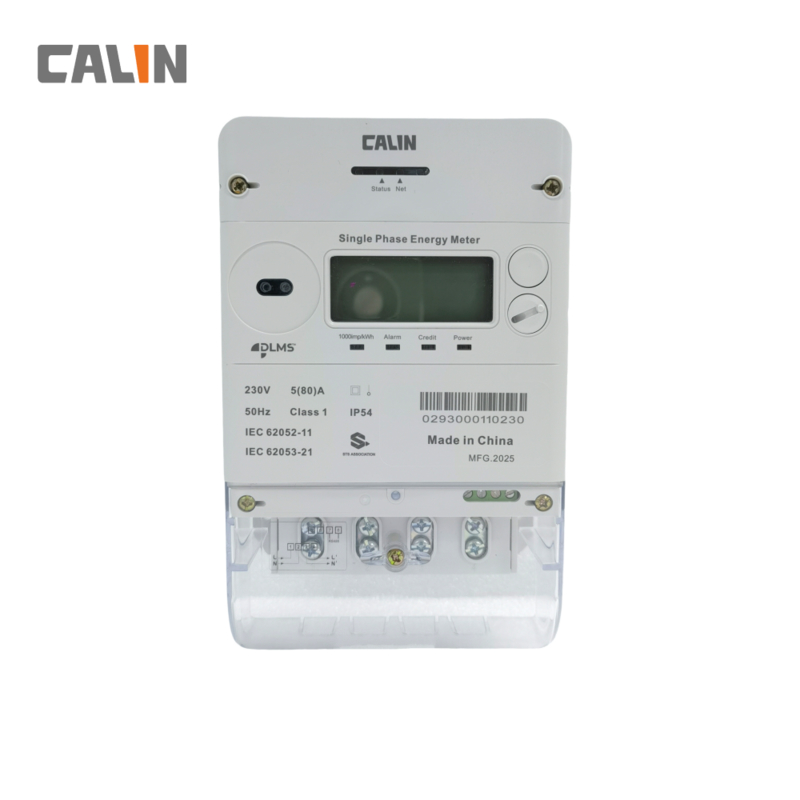

RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter

RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter

RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter
RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter
RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Keywords: Single Phase Electric Meter Product Name: Single Phase LORAWAN Meter
Latch Relay: Build-in Dimensions: 155x120x52mm
Data Port: Infrared Optical Communication: RF
High Light:

RF Single Phase Electric Meter


Infrared Single Phase Electric Meter


RF single phase energy meter

Wireless Single Phase LORAWAN Prepaid Kwh Meter With Vending System


Smart Single Phase Prepaid Kwh Meter wireless communication with vending system easy battery replacement


Photovoltaic (PV) power generation is growing fastly in the South Asia and Africa, As mini grid to effectively provide electricity for the remote area which the utility grid cannot cover. The CA168 is special designed for PV solar generation mini grid to measurement the power consumption, it can support 5A, 16A, 40A, 60 A current, 230V Nominal voltage, Class 1 accuracy class make sure the good measurement. We have built in a LORAWAN module in the meter so that the monitoring and management system can be developed, the meter send the data to the server by LORAWAN.

RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter 0


Single Phase Electric Meter Major Features

  1. 20 digit (Standard Transfer Specification) STS encryption

  2. Detection of significant reverse energy (SRE)

  3. LORAWAN certificate

  4. IEC62056-21 compliant port allowing for easy data interrogation

  5. Disconnects on overload and no credit

  6. Dual power source working on both prepaid and credit mode

  7. Programmable load limit and low credit warning

  8. Detection and record tamper event such as cover open, reversal, black-out, etc.

  9. Easy access to 12 months historical consumption data and last 5 token entered


 Utility benefit

  1. Easy connection to User Interface Unit (UIU) for split type applications

  2. LORAWAN wireless communication with a head-end AMR/AMI server

  3. Time of Use (TOU), multi-tariff, holiday setting.

  4. Advanced load control and disconnection features



Single Phase Electric Meter Specifications:


Nominal voltage Un

220/230/240 V

Limited voltage


Nominal frequency fn


Basic current(Ib)


Maximum current(Imax)


Starting current(Ist)


Active energy constant


Accuracy as Active energy to IEC62053‐21


Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit


Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge


Immunity to HF fields


80MHz to 2GHz with load


100kHz to 1GHz without load


Fast transient burst test


Meter shell Protection Rate


Insulation System Classification

 Protective Class II


 RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter 1RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter 2



RF Single Phase Electric Meter Wireless LORAWAN Prepaid Kwh Meter 3


Advantage Of Single Phase Electric Meter

1) Easy to deploy and maintenance

2) Increased tamper protection

3) Low operational cost

4) Optical port offers simple interrogation

5) Broad range of engineering settings

6) 15 year designed lifespan




Our service:
1. We will reply you as soon as possible after receiving your enquiry.
2. We can offer both OEM and ODM service according to customers' request.
3. If novelties exist in any non-human-made problems, please contact us at your first
time and we will offer you a satisfactory solution according to actual situation.
4. The lead time of samples would be 1-7 days.


Single Phase Electric Meter FAQ

1. What can you supply?
A: We can supply custom Prepaid Electricity Meters, STS Prepaid Meters, Single Phase Electric Meter and so on, all kinds of Electric Meter.


2. Are OEM and ODM available?

* Yes, they are. As a professional Electricity Meters manufacturer, we offer OEM and ODM service.


  1. Q: What are your main products?
    A:Our main products are Electricity Meters.


4. How about your product warranty?

* We offer one-year warranty upon delivery.


5. How about the aftersales support?

* We will offer on-time response for online enquiries from oversea users. Please feel free contact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
