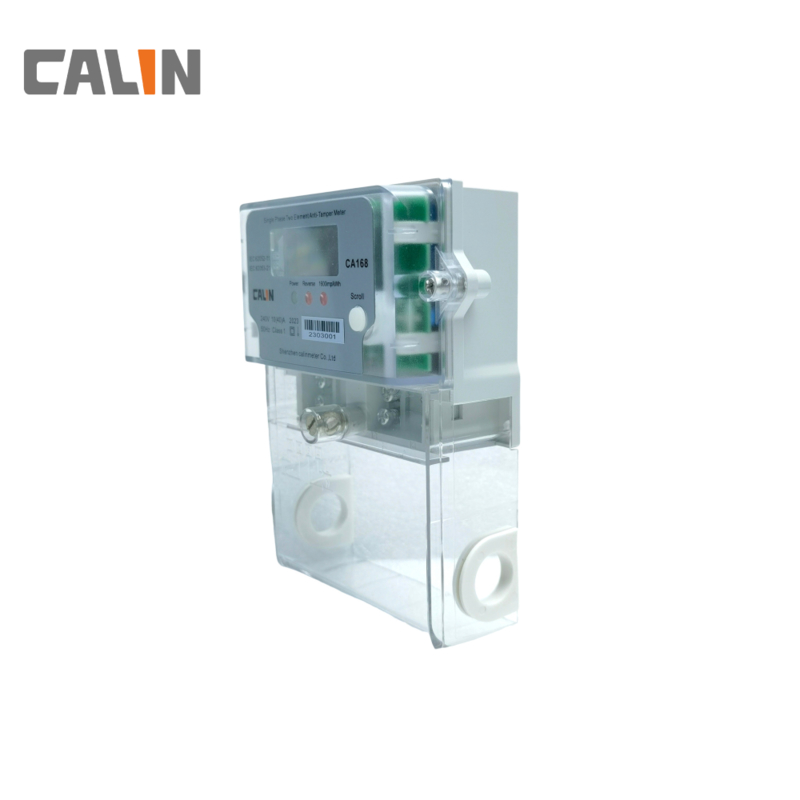

Entry Level Single Phase Electricity Meter 1600 Pulse Rate STS Prepayment Meter

Entry Level Single Phase Electricity Meter 1600 Pulse Rate STS Prepayment Meter

  • Entry Level Single Phase Electricity Meter 1600 Pulse Rate STS Prepayment Meter
Entry Level Single Phase Electricity Meter 1600 Pulse Rate STS Prepayment Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-I
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Low Price Sinlgle Phase Prepaid Electric Meter Neutral: Measuring Neutral
Dimensions: 255x120x52mm Weight: 600 G
Indicator: LED Accuracy: Class 1s
Pulse Rate: 1600 Bore Diameter: 8mm
High Light:

single phase kwh meter

,

single phase power meter

Entry Level Single Phase Electricity Meter 1600 Pulse Rate STS Prepayment Meter





The CA168-I is an entry level low price single phase electric meter with prepayment mode selection. It has build-in contactor or load switch that disconnects on preset limit of power threshhold, credit expiry, and tamper. The meter is intended for low income residential environments. Low price as it is, the meter is still rich in features, supporting bi-directional and neutral measurement, multi-rate and tariff plans, and data exchange with interrogation kit through an infrared optical port.



The meter is single phase two wire setup and built in a compact British Standard 5685 footprint mounting housing with polycarbonate fire retardant material and rugged RF withstand immunity of 30Vm, able to work in harsh environments. Tamper detection is another feature of this meter. Cover open, reverse connection and neutral missing can be detected and the meter disconnects the load on such tamper.  In all the CA168-I is an ideal revenue protection tool for utility and service providers and convenient credit dispenser for consumers.



Features + Benefits

a) Maximum current of 80A with Class1 accuracy

b) Anti Tamper features

c) Symmetrical (BS) terminal arrangement

d) Physical tamper switch

e) 20 Digit STS with encryption

f) Optical port for data bus output

g) Keypad with 4x3 configuration



Specifications:



Meter Type

Prepayment Single Phase meter

Standard

SPLN D3.009-1 : 2010

IEC 62052-11:2003 ; IEC 62053-21:2003

Network

Single Phase 2 wires

Measuring Scope

Active Energy

Class Index

Class 1

Reference voltage

120V 60Hz & 220V, 230V, 240V

 Frequency

50Hz/60Hz

Operating Voltage Range

- 30% Un to +15% Un

Power Consumption

<2W and <10VA

Basic Current

5 A

Maximum current

80A (optional)

Starting Current

0.2% Ib



Operating Temperature range

-25°C to +55°C

Limit temperature Range to transport and storage

-25°C to + 85°C

Degree of Protection

IP 54

Immunity to impulse voltage

6kV

Relative Humidity

Up to 95%

Meter Weight

1.3 kg

Meter constant

1600 pulse/kWh

User Interface

12 digit keypad with audio feedback

7 segment LCD with spacial symbols

LED Indicator

Optical probe
