Hermitically Sealed Single Phase Kwh Meter MCB Surge Electric Meter Safety

Hermitically Sealed Single Phase Kwh Meter MCB Surge Electric Meter Safety

  • Hermitically Sealed Single Phase Kwh Meter MCB Surge Electric Meter Safety
Hermitically Sealed Single Phase Kwh Meter MCB Surge Electric Meter Safety
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-E
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: 1 Phase Electric Prepayment Meter Protection Device: MCB
Dimensions: 155x120x52mm Weight: 750 G
Constant: 1600 Imp/kWh Accuracy: Class 1s
Terminal Cover: Extended Long Transparent Cover Color: Green
High Light:

single phase power meter

,

single phase electronic meter

Hermitically Sealed Single Phase Kwh Meter MCB Surge Electric Meter Safety

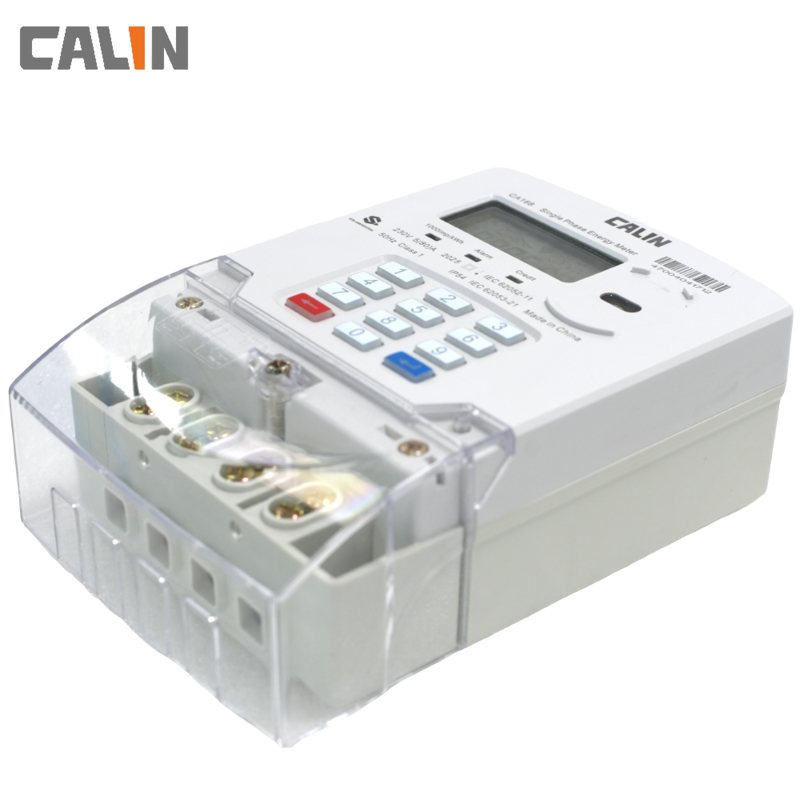

The CA168-E is an economy type sinle phase prepayment meter. It is built in keypad based compact BS footprint housing equiped with a extended transparent terminal cover fitting with MCB. The meter is a cost-effective controller for revenue collection and credit dispensing in low voltage residential environments. Thanks to its dynamic range of 5(80)Amp current and 30Vm Rf withstand immunity, the meter is operatable even in very harsh environments.



The CA168-E  upper closure is made of poly-carbonate flame retardant material ,hermitically sealed against illegal intrusion. It isintended for rich metering features to provide a broad range of information such as V, A, PF, P, balance. It also supports tamper detection and SRE (significant reverse energy) measurement for active energy.



The meter provides a metal backplate fixture . This feature enables the meter to be tightly fixed agaisnt the mounting surface to prevent tamper and sabtage.



Major Features

a) Display trip status

b) Programmable power limit and low credit warning

c) Unidirectional measurement for active energy

d) Display valuable meter information by inputting short codes

e) Optical port data output

f) IP 54 rating

g) Surge protection for up to 13kV lightening



 Key benefits



1) Low cost and easy to deploy and maintenance

2) Compact, and durable

3) Tamper proof for revenue protection

4) LED consumption indicator

5) Muti-rate and holiday setting



Specifications:





Nominal voltage Un

220/230/240 V

Limited voltage

70%~120%Un

Nominal frequency fn

50-60Hz+5%

Basic current(Ib)

5-10A

Maximum current(Imax)

60-100A

Starting current(Ist)

20mA

Active energy constant

1000imp/kWh

Accuracy as Active energy to IEC62053‐21

Class1.0

Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Operating temperature

25℃ to+70℃

Storage temperature

40℃ to+85℃

Insulation level

4kV rms for 1min

Impulse voltage withstand

8kV, 1.2/50 μs

Air discharge

16kV

Immunity to HF fields



80MHz to 2GHz with load

10V/m

100kHz to 1GHz without load

30V/m

Fast transient burst test

4kV

Meter shell Protection Rate

IP54(IEC60529)

Insulation System Classification

 Protective Class II
