Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter

Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter

  • Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter
Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter
Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA368-DC
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: GSM DLMS Wireless Electric Meter Communication: GSM / Ethernet
Metrological: 8 Channel Elements Weight: 2.5 Kg
Display: Backlit LCD 8 Digits With Icons Accuracy: Class 0.5s Class 1s
Clock: Build-in Bore: 10 Mm
High Light:

wireless power meter

,

wireless watt meter

Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter



The CA368-M  is a three  phase four wire  electric watt-hour multi-function meter finished in a compact BS footprint mounting case . It operates with GSM / GPRS wireless communication by DLMS / COSEM protocol, making it interoperable with devices and systems of the same protocol.  This  meter is a new generation developed as a core component of the Calin’s smart metering solution, aiming to optimize daily utility processes. It is used for commercial and light industrial environments.



The meter communicates with a back-end server through TCP/IP based GSM / GPRS / Ethernet connectivity , intended for Automatic Meter Reading on real time basis.The meter complies with IEC standard for active and reactive energy measurement and its terminal block is provided for both direct connection and CT/VT transformer connection. A buld-in clock in the meter  is synchronized with the real time in the back-end server at preset interval, allowing the utility and service providers for utmost flexibility of tariff setting and contractual control.



Being connected to the back-end server through the connectivity of GSM GPRS, a utility or a service provider will have  real-time monitoring and control on the load in the grid and effecient load management even at peak hours.





Main Features

1) Surge protection for 13kV lightening and other line surges

2) Interoperable with DLMS /COSEM compliant devices

3) 4 channels maximum demand measurement and load profile recording at preset intervals

4) Tamper and fraud protection

5) Terminal block for both direct and transformer connection

6) Four wire and three wire networks

Key Benefits

a) A wide range of metering data readout

b) Durable quality for installations in very severe environments

c) Load control through GSM GPRS networks

d) Reduce operational and maintenance costs

e) Long designed working life



Specifications:





Electrical parameters

Nominal voltage Un

3x 220/230/ 240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm

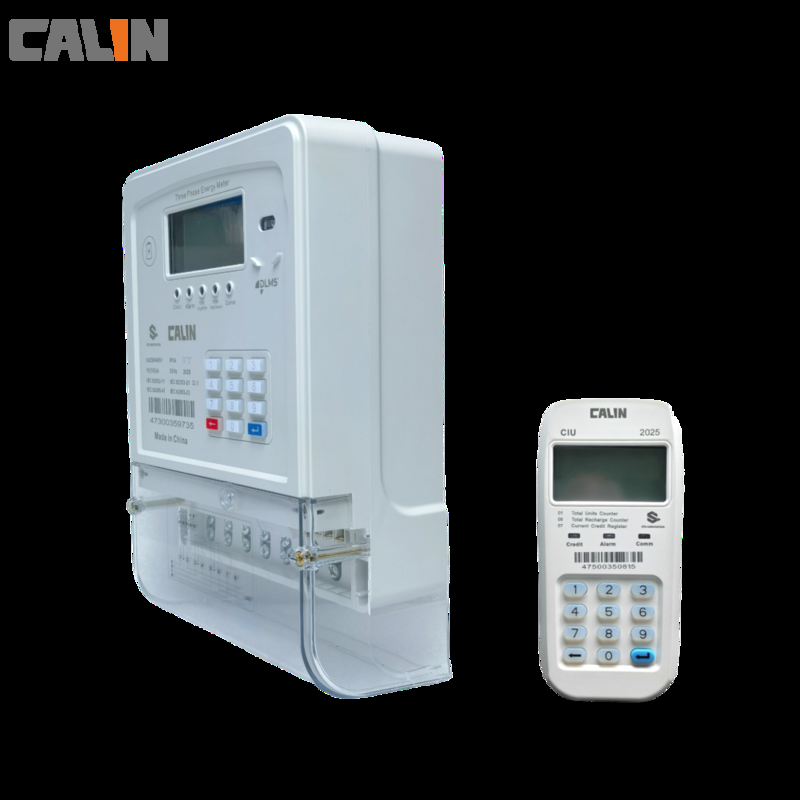

Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter 0

Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter 1
