Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter

Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter

    • Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter
  • Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368-DC

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: GSM DLMS Wireless Electric Meter Communication: GSM / Ethernet
    Metrological: 8 Channel Elements Weight: 2.5 Kg
    Display: Backlit LCD 8 Digits With Icons Accuracy: Class 0.5s Class 1s
    Clock: Build-in Bore: 10 Mm
    High Light:

    wireless power meter

    ,

    wireless watt meter

    Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter

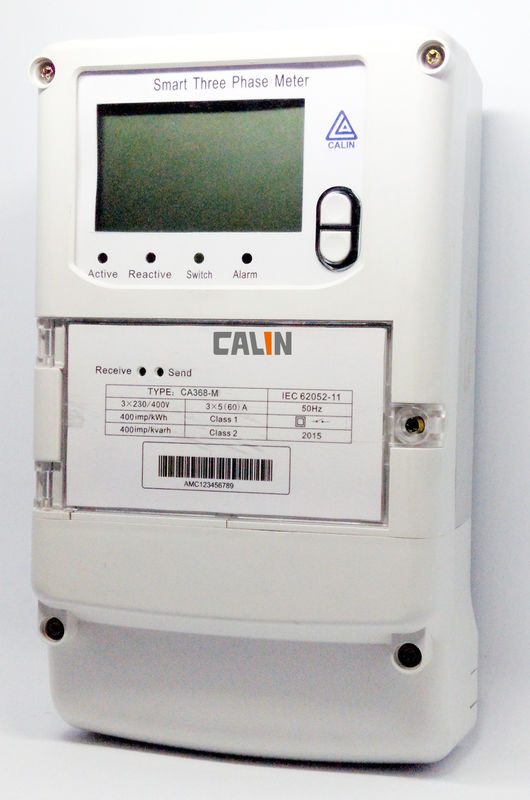

    The CA368-M  is a three  phase four wire  electric watt-hour multi-function meter finished in a compact BS footprint mounting case . It operates with GSM / GPRS wireless communication by DLMS / COSEM protocol, making it interoperable with devices and systems of the same protocol.  This  meter is a new generation developed as a core component of the Calin’s smart metering solution, aiming to optimize daily utility processes. It is used for commercial and light industrial environments.



    The meter communicates with a back-end server through TCP/IP based GSM / GPRS / Ethernet connectivity , intended for Automatic Meter Reading on real time basis.The meter complies with IEC standard for active and reactive energy measurement and its terminal block is provided for both direct connection and CT/VT transformer connection. A buld-in clock in the meter  is synchronized with the real time in the back-end server at preset interval, allowing the utility and service providers for utmost flexibility of tariff setting and contractual control.



    Being connected to the back-end server through the connectivity of GSM GPRS, a utility or a service provider will have  real-time monitoring and control on the load in the grid and effecient load management even at peak hours.





    Main Features

    1) Surge protection for 13kV lightening and other line surges

    2) Interoperable with DLMS /COSEM compliant devices

    3) 4 channels maximum demand measurement and load profile recording at preset intervals

    4) Tamper and fraud protection

    5) Terminal block for both direct and transformer connection

    6) Four wire and three wire networks

    Key Benefits

    a) A wide range of metering data readout

    b) Durable quality for installations in very severe environments

    c) Load control through GSM GPRS networks

    d) Reduce operational and maintenance costs

    e) Long designed working life



    Specifications:





    Electrical parameters

    Nominal voltage Un

    3x 220/230/ 240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm



    Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter 0

    Interoperable AMR AMI Wireless Electricity Meter , Electricity Prepayment Meter 1
