Card Type Prepaid Wireless Electricity Meter Residential 3 Phase Kwh Meter

Card Type Prepaid Wireless Electricity Meter Residential 3 Phase Kwh Meter

    • Card Type Prepaid  Wireless Electricity  Meter Residential 3 Phase Kwh Meter
  • Card Type Prepaid  Wireless Electricity  Meter Residential 3 Phase Kwh Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA368-C

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: CPU Card Prepayment Wireless Electricity Meter Standard: 3DES , IEC62056-21 , IEC62053
    Dimensions: 265x170x77mm Communication: PLC RF GPRS
    Display: Backlit LCD 8 Digits Accuracy: Class 1s
    Com Port: Optical RS485 Bore Diameter: 10mm
    High Light:

    wireless electric meters

    ,

    wireless watt meter

    Card Type Prepaid  Wireless Electricity  Meter Residential 3 Phase Kwh Meter

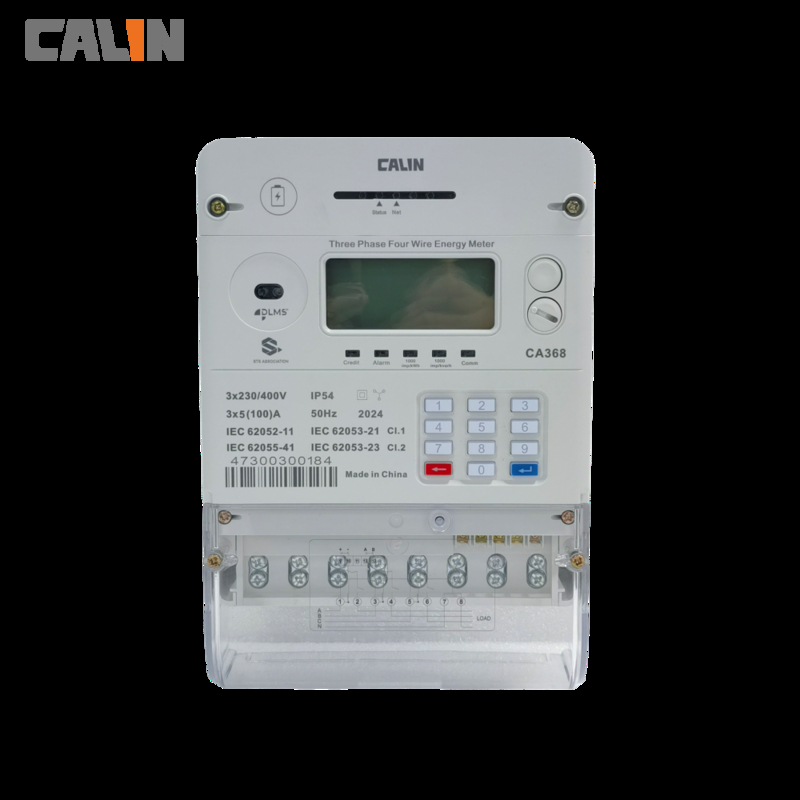

    The CA368-C is a three phase four wire 100 Amp per phase prepayment electricity meter operating with 3DES encrypted CPU card. It is used for large residential and light commercial or industrial environments. It is a high profile integration of precision metrology and security technologies.



    The meter is equiped with a modular commnication unit available with PLC (power line carrier), RF (radio frequency), MODBUS, and GSM networks. LoRa is a type of low power consumptionl. This wireless design adds wings to the metering features and allows the meter to connect with a head-end server for high end AMR AMI functionalities. It supports both real-time data transmission, load profiling record, and classic metering at the same time.



    The build-in latch relay serves as a load control device and disconnects on no credit and tamper, and other load shedding command from the back-end servers. Thanks to its compliance with DLMS / COSEM standard, it is interperoable with devices running on the same protocol. The meter is produced in accordance with  ISO9001 standards and IP54 rated protective class, in a wide voltage range ( Un -40% +20%) and RF immunity of 30V/m, enabling it to be deployed in very harsh environments. The CA368-C series is also designed to measure both active and reactive energy, and transfer data parameters via a 2400 bps baud rate optical port..



    Features

    1) Rf LoRa up to 1 mile visual distance communication

    2) Disconnects on overload , credit expires and tamper detected

    3) Two way communication with head-end server

    4) Compact design with British Standard foot print standard

    5) Measure active and reactive energy

    6) Programmable power limit and low credit warning

    7) Meter provides valuable information to help consumers manage their usage

    8) Maximum demand measurement





     Utility benefits

    a) Easy to install and ideal for retrofitting with BS footprint

    b) Tamper detection

    c) Local and remote load management through wireless network

    d) Last 13 months billing and MD history

    e) Interoperablility





    Specifications:





    Electrical parameters

    Nominal voltage Un

    3x220/230/240V

    Limited voltage

    60%~120%Un

    Frequency

    50/60Hz+5%

    Basic current(Ib)

    10A

    Maximum current(Imax)

    100A

    Starting current(Ist)

    30mA

    Active energy constant

    400imp/kWh

    Accuracy



    Active energy to IEC62053‐21

    Class1.0

    Reactive energy to IEC62053‐23

    Class2.0

    Power Consumption



    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Temperature range



    Operation meter

    25℃ to+70℃

    Storage

    40℃ to+85℃



    Insulation strength

    AC Insulation strength

    4kV at 50Hz during 1min

    Impulse voltage 1.2/50μs mains connections

    8kV





    Electro Magnetic Compatibility

    Electrostatic discharges



    Contact discharge

    8kV

    Air discharge

    16kV

    Electromagnetic RF fields



    27MHz to 500MHz typical

    10V/m

    100kHz to 1GHz typical

    30V/m

    Fast transient burst test

    4kV

    Mechanical requirements



    Protection Rating

                              IP54

    Insulation Classification

    Protective Class II

    Maximum cable size

    10 mm





    Card Type Prepaid  Wireless Electricity  Meter Residential 3 Phase Kwh Meter 0
