Product Details:
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-G
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Contact Now
Detailed Product Description
Product Name: Single Phase Gprs Prepayment Meter Standard: SANS1524-1 , IEC62056-21 , IEC62053-21
Dimensions: 165x112x58mm Weight: 700g
Display: 7digits' Backlit LCD Accuracy: Class 1s
Com Port: IR Optical & RS485 Cable Size: 8mm
High Light:

wireless power meter

,

wireless watt meter

,

Wireless STS Prepayment Meter

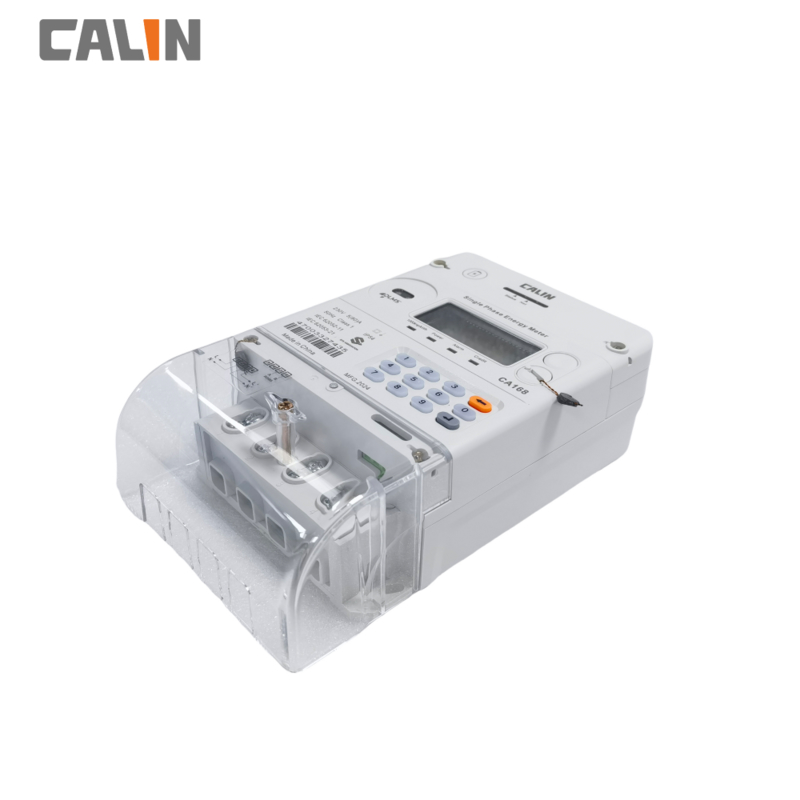

IR Optical Wireless Power Meter Two Wire Digital STS Prepayment Meter



Calin's latest non-wired solution has demonstrated full advantage as in the CA168-G, a single phase prepaid meter for remote STS prepayment environments. It is a two wire 5(60) Amp(80A optional), keypad based meter finished in a compact BS5685  footprint case. The meter is used for residential , commercial and light industrial  in less populated areas. .



The meter is produced by ISO9001 standards with IP54 rated protective class. It operates in a wide voltage range ( Un -40% +20%) and improved RF immunity of 30V/m, allowing it to be installed in very harsh environments prone to brownouts, lightening and voltage dips are quite frequent.



CA168-G is equiped with a built-in GPRS modem, which allows it to communicate with the back-end server via TCP/IP or vpn protocl.Automatic meter reading is carried out from time to time at server side, and a utility or service provider can make settings into meters through GSM networks. The CA168-G is a compact and ecnomic solution for AMR AMI smart metering setups.



Main Features

a) STS standard encryption

b) Build-in load switch disconnects on tamper and credit zero

c) Adjustable power limit and consumption threshold

d) RS485 and IR optical ports

e) Audible and visual low credit alarm

f) Emergency credit and repayment control

g) Fraud detection

h) Operates in prepayment and credit mode

i) DLMS/COSEM , IEC62056 protocol compliant



 Utility benefits

1) Quick and easy to install

2) Valuable real-time data

3) Flexible payment control

4) Allowed to do load control

5) Reduce day to day operational and maintenance cost



Specifications:





Electrical parameters:

Nominal voltage Un

3x240V

Limited voltage

60%~120%Un

Frequency

50/60Hz+5%

Basic current(Ib)

10A

Maximum current(Imax)

100A

Starting current(Ist)

30mA

Active energy constant

400imp/kWh

Accuracy



Active energy to IEC62053‐21

Class1.0

Reactive energy to IEC62053‐23

Class2.0

Power Consumption



Power consumption in Voltage circuit

<2W  <8VA

Power consumption in current circuit

<1VA

Temperature range



Operation meter

25℃ to+70℃

Storage

40℃ to+85℃



Insulation strength

AC Insulation strength

4kV at 50Hz during 1min

Impulse voltage 1.2/50μs mains connections

8kV





Electro Magnetic Compatibility

Electrostatic discharges



Contact discharge

8kV

Air discharge

16kV

Electromagnetic RF fields



27MHz to 500MHz typical

10V/m

100kHz to 1GHz typical

30V/m

Fast transient burst test

4kV

Mechanical requirements



Protection Rating

                          IP54

Insulation Classification

Protective Class II

Maximum cable size

10 mm
