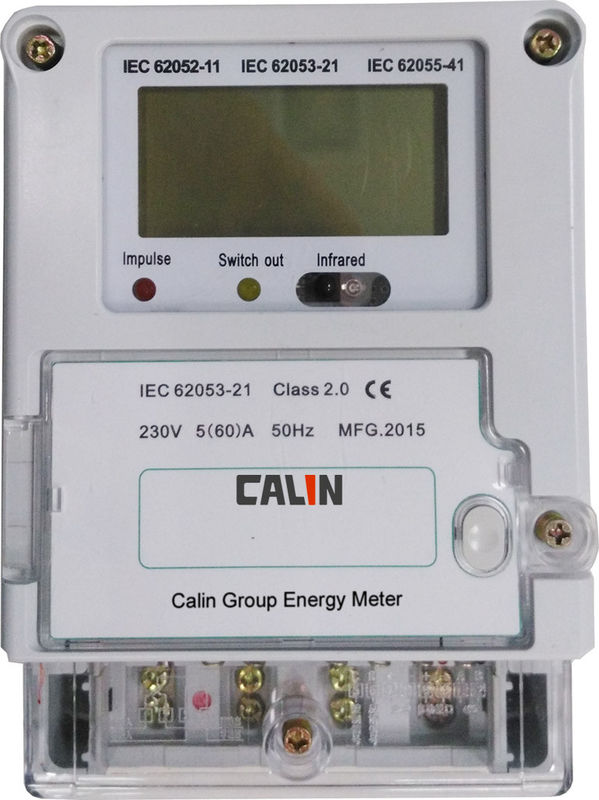

1 Phase Wireless Watt Meter Plc G3 Smart Electric Meters With Plug - In Module

1 Phase Wireless Watt Meter Plc G3 Smart Electric Meters With Plug - In Module

    • 1 Phase Wireless Watt Meter Plc G3 Smart Electric Meters With Plug - In Module
  • 1 Phase Wireless Watt Meter Plc G3 Smart Electric Meters With Plug - In Module

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: CA168-M

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Single Phase Multi-function Wireless Electric Meter Feature: Plug-in Communication Module
    Dimensions: 160x112x58mm Weight: 750 G
    Display: Backlit LCD 8 Digits Accuracy: Class 1s
    Payment Mode: Prepayment & Post Payment Material: ABS Blend With Fire Retardant
    High Light:

    wireless power meter

    ,

    wireless watt meter

    1 Phase Wireless Watt Meter Plc G3 Smart Electric Meters With Plug - In Module



    The CA168-M is an upgraded high profile new generation of smart electricity meter that integrates high precision metrology features along with wireless communication and contractual methodology. It is a single phaes two wires electric meter that operates in both prepayment and post-prepayment mode. The meter changes the payment mode  upon receipt of command from back-end server. Utility can choose from various contractual billing control for consumers.



    The CA168-M works with a plug-in module for data collection and network communications . This modular design offers utility free selection from PLC/RF/GPRS/3G and 4G LTE cellular data networks according to local infrastructure conditions to reduce operational cost. Upgrade and maintenance will also become cost-effective by replacing the modules only instead of the whole meter.







    Features

    1) PLC G3 communication

    2) Prepayment or post-payment mode selectable

    3) Maximum demand measurement ( Optional)

    4) Anti-tamper: magnetic proof, data retention in outage, cover open detection

    5) TOU with multi-rate and multi billing cycles

    6) IEC 62056-21 and DLMS/COSEM compliant (on request)

    7) Prepared for AMR/AMI functionality and remote control from the server side



     Key benefits

    a) Advanced load management on demand and remote

    b) Reduce operational and maintenance costs

    c) Free choice of suitable communication according to local needs

    d) Revenue protection by flexible consumer contract control

    e) Long life time design with easy upgrade features



    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    1 Phase Wireless Watt Meter Plc G3 Smart Electric Meters With Plug - In Module 0
