| Place of Origin: | China |
| Brand Name: | Calin |
| Certification: | CE/SABS/IEC |
| Model Number: | CA368-DC |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 30 days |
| Payment Terms: | western Union,Paypal, T/T, L/C |
| Supply Ability: | 70,000pcs per month |
| Product Name: | Multi-function Wireless3 Phase Electric Meter | Communication: | GSM / Ethernet / PLC G3/ RF /LORA |
|---|---|---|---|
| Metrological: | 8 Channel Elements | Weight: | 2.5 Kg |
| Display: | 8 Digits'Backlit LCD With Icons | Accuracy: | Class 0.5s Class 1s |
| Clock: | Build-in | Bore: | 10 Mm |
| High Light: | wireless power meter,wireless watt meter,wireless3 phase electric meter |
||

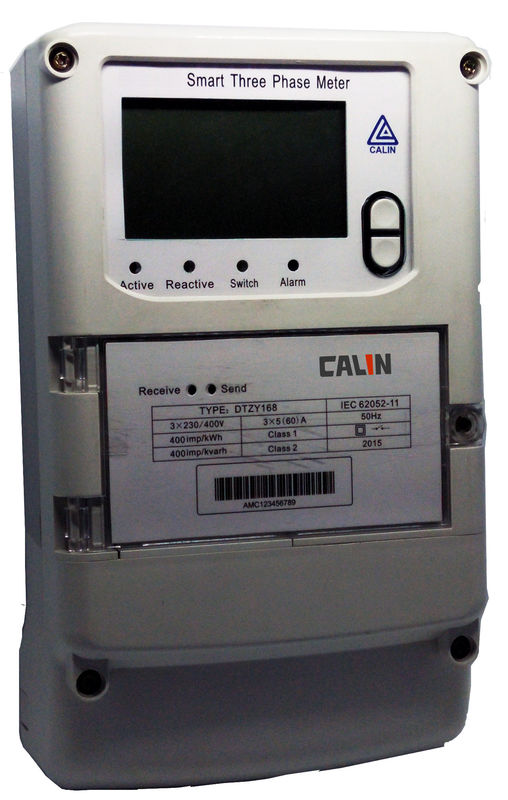

Load Control Wireless Electricity Meter Scroll Down Display Three Phase Energy Meters

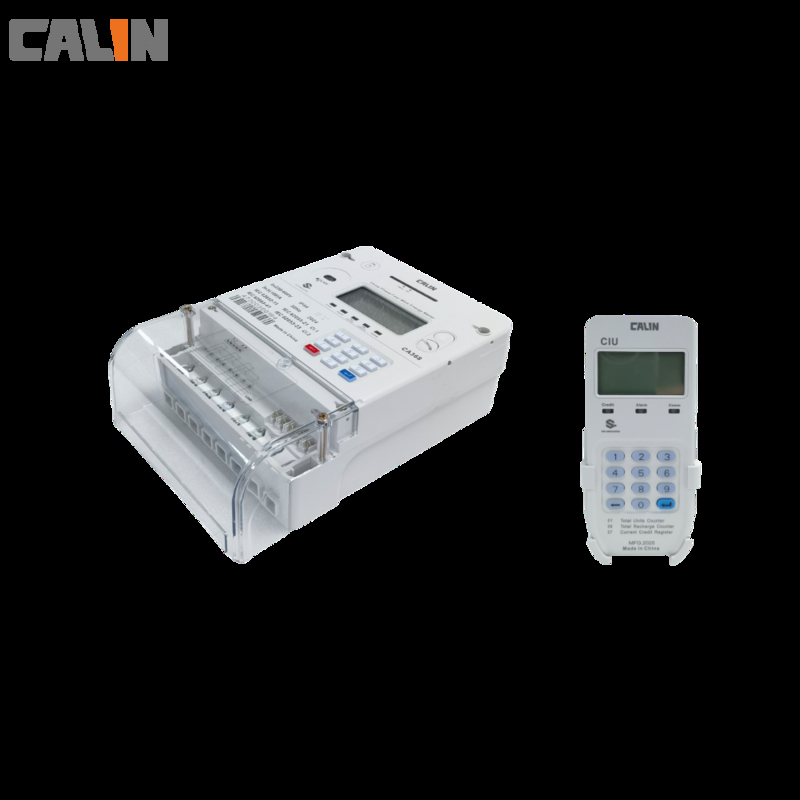

The CA368-M is a three phase four wire multi-function meter for active and optionally reactive energy with a Plug & play communication unit and RS485 port intended for interogation into AMR / AMM/ AMI systems. It is finished in a compact BS footprint mounting enclosure made of polycarbonate flame retardant material. Thanks to its wide range of voltage (Un-40% - Un+30%) and current 5(100)A, it can operate in harsh and severe environments where surge and lightening are frequent.
A utility can choose proper communication according to local infrastructure given advice from our experts. The communication unit is free choice for PLC , RF, GPRS and etc, allowing the meter to speak to the AMR AMI server via real wireless communication. Being connected to the back-end server, the meter allows a utility and service provider to make flexible payment control settings with the meter remotely.
Main Features
a) Interoperable with DLMS /COSEM compliant devices
b) Surge protection for 13kV lightening and other line surges
c) 8 channels full quadrant critical metrological value
d) Maximum demand and load profile recording at preset intervals
e) Tamper and fraud protection
f) LED consumption indicator
g) Terminal block for both direct and transformer connection
h) Consumption and power limitation
Key Benefits
1) PLC G3 allows installation with existing wiring with no need to add extra
2) All-in-one smart meterng device
3) Easy and quick to install
4) Load management on demand and by scheduled task
5) Reduce operational and inventory costs
6) Meter has big LCD screen to display valuable information by press to scroll down
Specifications:
|
Electrical parameters |
|
|---|---|
|
Nominal voltage Un |
3x 220/230/ 240V |
|
Limited voltage |
60%~120%Un |
|
Frequency |
50/60Hz+5% |
|
Basic current(Ib) |
10A |
|
Maximum current(Imax) |
100A |
|
Starting current(Ist) |
30mA |
|
Active energy constant |
400imp/kWh |
|
Accuracy |
|
|
Active energy to IEC62053‐21 |
Class1.0 |
|
Reactive energy to IEC62053‐23 |
Class2.0 |
|
Power Consumption |
|
|
Power consumption in Voltage circuit |
<2W <8VA |
|
Power consumption in current circuit |
<1VA |
|
Temperature range |
|
|
Operation meter |
25℃ to+70℃ |
|
Storage |
40℃ to+85℃ |
|
|
|
|
Insulation strength |
|
|
AC Insulation strength |
4kV at 50Hz during 1min |
|
Impulse voltage 1.2/50μs mains connections |
8kV |
|
|
|
|
Electro Magnetic Compatibility |
|
|
Electrostatic discharges |
|
|
Contact discharge |
8kV |
|
Air discharge |
16kV |
|
Electromagnetic RF fields |
|
|
27MHz to 500MHz typical |
10V/m |
|
100kHz to 1GHz typical |
30V/m |
|
Fast transient burst test |
4kV |
|
Mechanical requirements |
|
|
Protection Rating |
IP54 |
|
Insulation Classification |
Protective Class II |
|
Maximum cable size |
10 mm |
