IP54 Single Phase Electric Meter

Product Details

Place of Origin: China

Brand Name: Calin

Certification: CE/SABS/IEC

Model Number: CA168

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Carton

Delivery Time: 30 days

Payment Terms: western Union,Paypal, T/T, L/C

Supply Ability: 70,000pcs per month

Get Best Price
Highlight:

IP54 Single Phase Electric Meter

,

IEC 60529 Single Phase Electric Meter

,

35mm Din Rail Keypad Prepaid Meter

Product Name:
STS Single Phase Din-rail Split Keypad CIU Prepaid Electricity Meter
Mounting:
35mm Din Rail
Dimensions:
155x120x52mm
Weight:
800 G
Constant:
1000 Imp/kWh
Accuracy:
Class 1s
Standard:
IEC/SABS
Product Name:
STS Single Phase Din-rail Split Keypad CIU Prepaid Electricity Meter
Mounting:
35mm Din Rail
Dimensions:
155x120x52mm
Weight:
800 G
Constant:
1000 Imp/kWh
Accuracy:
Class 1s
Standard:
IEC/SABS
IP54 Single Phase Electric Meter

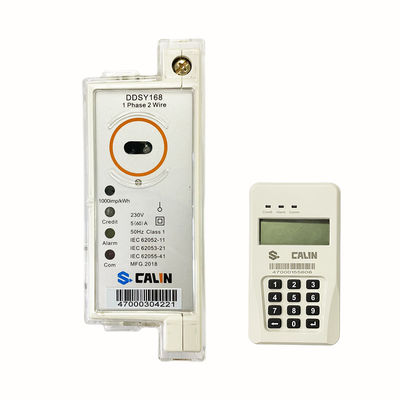

IP54 Single Phase Electric Meter 35mm Din Rail Keypad Prepaid Meter



Micro Grid 35mm Din Rail Keypad Prepaid Meter with RF Communication Remotely Monitoring

The CA168-S is designed as split type, MCU(Main Control Unit) and UIU(User Interface Unit), connected by RF communication. It is suitable for Mini Grid (Micro Grid/Off Grid) solar PV generatation, can be used in 5A, 16A, 40A, 60A current. The meter build in prepayment algorithm which compliance with the STS (Standard Transfer Specification) protocol, the meter will shut off the power automatically when the credit is used up even though there is no any communication between meter and system.



Due to the in-built RF communication in the MCU, the AMR management system can be developed for you to monitoring the meter consumption, collect data from the meter (Credits, consumption, events, etc) and remotely control. The DCU(Data Concentrator Unit) collect the data from the nearby meters by RF, and then upload the data to the system by GPRS.







Major Features



  1. 20 digit (Standard Transfer Specification) STS encryption

  2. Up to 80A current with Class 1 accuracy

  3. Disconnects on overload and no credit

  4. Programmable power limit and low credit warning

  5. Adjustable power limit trip

  6. Enhanced tamper detection for magnetic field, reverse connection, cover open, etc.

  7. Reverse energy measurement SRE

  8.  Information toggled by codes

  9.  Tamper trip protection : neutral missing



 Other Benefits

a) Compact and slim-line design

b) PLC/ RF communication for MCU & UIU and same with back end AMI server (On request)

c) Time of Use (TOU) , multi-rate, tariff control, holiday setting

d) 15 year designed life

e) Enhanced revenue protection through flexible payment control





Specifications:

Nominal voltage Un

220/230/240 voltage

Impulse voltage withstand

8kV, 1.2/50 μs

Limited voltage

70%~120%Un

Air discharge

16kV

Nominal frequency fn

50-60Hz+5%

Immunity to HF fields



Basic current(Ib)

5-10A

80MHz to 2GHz with load

10V/m

Maximum current(Imax)

60-100A

100kHz to 1GHz without load

30V/m

Starting current(Ist)

20mA

Fast transient burst test

4kV

Active energy constant

1000imp/kWh

Meter shell Protection Rate

IP54(IEC60529)

Accuracy as Active energy to IEC62053‐21

Class1.0

Insulation System Classification

Protective Class II

Power consumption in Voltage circuit

<2W <8VA



Power consumption in current circuit

<1VA



Operating temperature

25 to+70℃



Storage temperature

40 to+85℃



Insulation level

4kV rms for 1min
