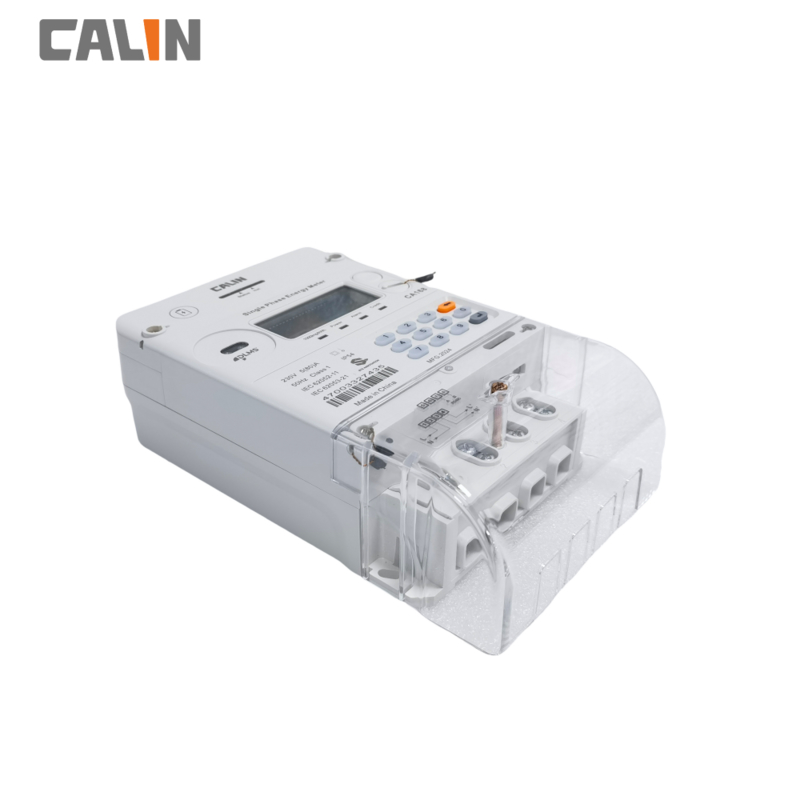

IC Card Electricity Prepaid Meter Class 1S Accuracy Single Phase Power Meter

IC Card Electricity Prepaid Meter Class 1S Accuracy Single Phase Power Meter

    • IC Card Electricity Prepaid Meter Class 1S Accuracy Single Phase Power Meter
  • IC Card Electricity Prepaid Meter Class 1S Accuracy Single Phase Power Meter

    Product Details:

    Place of Origin: China
    Brand Name: Calin
    Certification: CE/SABS/IEC
    Model Number: DDSY168-C

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: negotiation
    Packaging Details: Carton
    Delivery Time: 30 days
    Payment Terms: western Union,Paypal, T/T, L/C
    Supply Ability: 70,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: 1 Phase IC Card RF Prepaid Electric Meter Mounting: British Standard 5685
    Dimensions: 160x112x58mm Weight: 750 G
    Display: Backlit LCD 6 Digits Accuracy: Class 1s
    Com Port: RS485, Optical Material: Poly Carbonate
    High Light:

    wireless power meter

    ,

    wireless watt meter

    IC Card Electricity Prepaid Meter Class 1S Accuracy Single Phase Power Meter



    The DDSY168-C is an upgraded single phase two wires 60 Amp per phase IC card prepayment electric meter. It is a  new generation of prepaid meter that combines STS standards  with 3DES security encryption technology. The meter operates with wireless communication such as PLC, RF, Modbus, Lora and GPRS / EDGE /EVDO. The meter is approved by IEC 62052-11, IEC62053-21 and produced by ISO9001 standards. It supports flexible tariff plans with TOU (Time of Use) functions.



    The wireless features of DDSY168-C enables it to communicate with a head-end server for high end AMR, AMI functions. LoRa is a type of RF (radio frequency) wireless communication. It is low power consumption and long travelling distance.



    The meter supports real-time data transfer and remote tariff setting. A utility can always get paid before they supply electricity to consumers and have from time to time update from the meter to know exactly how much power the consumers used.







    Features

    a) RF / LoRa communication up to 1 mile visual distance

    b) STS standard encryption

    c) Trip on power threshold breach

    d) Full featured for IEC standards for active energy

    e) Measure reverse energy as positive , SRE

    f) Anti-tamper functions, like magnetic proof, data retention in outage, cover open detection

    g) TOU with multi-rate and multi billing cycles

    h) IEC 62056-21 and DLMS/COSEM compliant (on request)

    i) Automatic and periodic register meter reading: interval, daily, monthly usage



     Utility benefits

    1) Easy to install and vend

    2) Enhanced revenue protection

    3) Meter provides valuble information regarding grid supply for utility's statistics

    4) Minimum operational and maintenance costs

    5) Hardware and software security protection

    6) Long life time of 15 years



    Specifications:

    Nominal voltage Un

    220/230/240 V

    Limited voltage

    70%~120%Un

    Nominal frequency fn

    50-60Hz+5%

    Basic current(Ib)

    5-10A

    Maximum current(Imax)

    60-100A

    Starting current(Ist)

    20mA

    Active energy constant

    1000imp/kWh

    Accuracy as Active energy to IEC62053‐21

    Class1.0

    Power consumption in Voltage circuit

    <2W  <8VA

    Power consumption in current circuit

    <1VA

    Operating temperature

    25℃ to+70℃

    Storage temperature

    40℃ to+85℃

    Insulation level

    4kV rms for 1min

    Impulse voltage withstand

    8kV, 1.2/50 μs

    Air discharge

    16kV

    Immunity to HF fields



    80MHz to 2GHz with load

    10V/m

    100kHz to 1GHz without load

    30V/m

    Fast transient burst test

    4kV

    Meter shell Protection Rate

    IP54(IEC60529)

    Insulation System Classification

     Protective Class II

    IC Card Electricity Prepaid Meter Class 1S Accuracy Single Phase Power Meter 0
